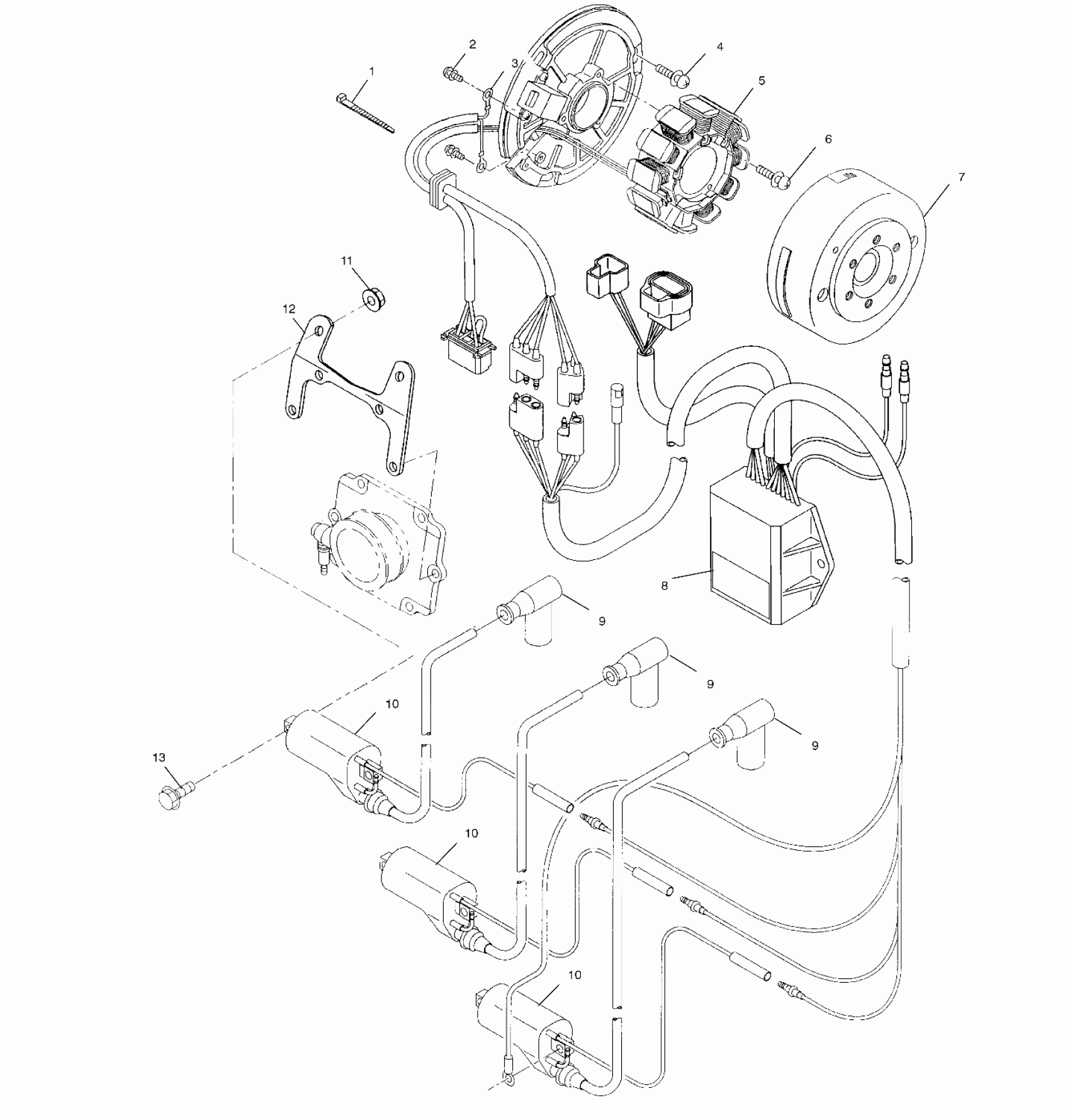

Polaris 800 XCR - S00SB8AS MAGNETO - S00SB8AS (4954015401d003) Diagram

#

Description
Price

1

BAND, WIRE

3084512

$4.92

2

SCREW&WASHER ASM(10)

3081256

$3.19

3

SCREW&WASHER ASM.

3084976

Unavailable

4

BOLT&WASHER ASM.

3083866

Unavailable

5

STATOR

-------

Unavailable

5

STATOR,PLATE,ASM. (Incl. 1-3,5,6)

3086147

Unavailable

6

SCREW&WASHER ASM.(10)

3085604

$1.49

7

FLYWHEEL ASM

3085607

Unavailable

8

CDI,SYSTEM

3086828

Unavailable

9

CAP,SPARK PLUG

4020159

Unavailable

9

CAP,SPARK PLUG

4020159

Unavailable

9

CAP,SPARK PLUG

4020159

Unavailable

10

Coil, Ignition

3085293

Unavailable

10

Coil, Ignition

3085293

Unavailable

10

Coil, Ignition

3085293

Unavailable

11

NUT, FLANGE(10)

3083856

$2.39

12

PLATE,IGNITION COIL

3085797

$17.43

13

Bolt, Flange

3084126

Unavailable
