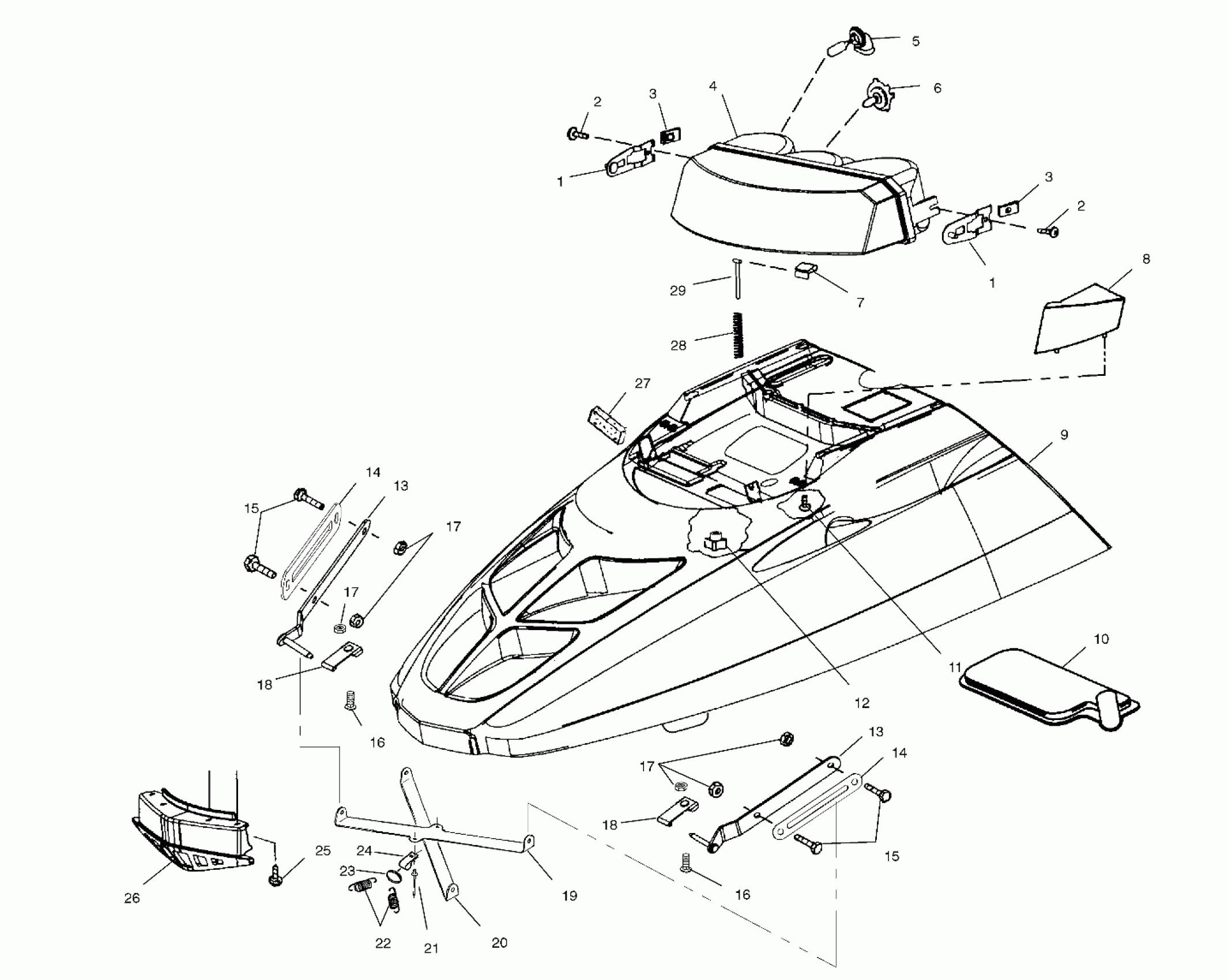

Polaris 800 XCR - S00SB8AS HOOD - S00SB8AS (4954015401a009) Diagram

#

Description
Price

1

MOUNT,WELD,H/L

1011944-067

$24.27

1

MOUNT,WELD,H/L

1011944-067

$24.27

2

BOLT(10)

7515107

Unavailable

2

BOLT(10)

7515107

Unavailable

3

NUT, SPEED(10)

7670057

$1.49

3

NUT, SPEED(10)

7670057

$1.49

4

ASM-HEADLAMP,THREE BULB (Incl. Bulbs)

2433016

$249.99

5

BULB-HEADLIGHT,50 WATT

4010253

$34.99

6

BULB,QUARTZ.H/L,INDY

2870448

$24.99

7

FASTENER-U TYPE CLIP

7670040

$3.99

8

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

8

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

9

HOOD,TRP,SVC,W/O SCR BLK (Incl. Foam/Foil)

2632114-177

$784.99

10

COVER,ACCESS,HDLIGHT,SRP

5433723

Unavailable

11

SCREW(10) Substituted by 7512048

7511953

Unavailable

12

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

13

HINGE,LH,UPPER

1012750

$48.56

13

HINGE,RH,UPPER

1012751

$43.99

13

HINGE,LH,UPPER

1012750

$48.56

13

HINGE,RH,UPPER

1012751

$43.99

14

PLATE-BOLT

5242948

$9.70

14

PLATE-BOLT

5242948

$9.70

15

BOLT(10) Substituted by 7512247

7515184

Unavailable

15

BOLT(10) Substituted by 7512247

7515184

Unavailable

16

BOLT,(10)

7515203

$3.99

16

BOLT,(10)

7515203

$3.99

17

NUT-LOCK(10)

7542122

$1.49

17

NUT-LOCK(10)

7542122

$1.49

17

NUT-LOCK(10)

7542122

$1.49

18

PLATE,HINGE,LOWER Substituted by 5244395

5242678

Unavailable

18

PLATE,HINGE,LOWER Substituted by 5244395

5242678

Unavailable

19

BRACE,HOOD,UPPER

5242945

$40.46

20

BRACE,HOOD,LOWER

5242946

$40.46

21

RIVET-3/16-.090-.290

7661637

$1.49

22

SPRING-EXT.

7041732

$7.19

23

SPRING-ATTACHMENT RING(10)

7041760

$7.99

24

CLAMP, RETAINER(10)

7080372

$3.99

25

SCREW(10)

7517441

$2.39

26

SCREEN,FRONT,HYB

5432931

$36.41

27

FOAM-HEADLIGHT SEAL W/PSA

5811687

$20.22

28

SPRING,H/L.ADJ.

7041308

$3.19

29

BOLT,TEE ADJUSTER,2.25

7517746

$24.99
