Description

Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5131450

Unavailable

5

ARM,FR.TORQUE,X-10,QA,BLK Substituted by 1541466-067

1541203-067

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

WASHER(10)

7555716

$1.59

7

WASHER(10)

7555716

$1.59

7

WASHER(10)

7555716

$1.59

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

9

BOLT,EYE

7010050

Unavailable

10

RING, RETAINING(10)

7710424

$0.63

11

SHIELD-SPRING

5430671

$24.27

12

Shock, Front Track (See Footnote) (See Fox Shock - Front Track Pg. B13 For Details)

-------

Unavailable

13

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

14

SPRING,BLACK,COMP.

7041253-067

$95.22

15

NUT LOCK(10)

7542403

$3.99

16

Spacer

5333028

$1.59

17

BUSHING,PIVOT TUBE

5020561

$1.59

18

NUT LOCK(10)

7542411

$3.19

18

NUT LOCK(10)

7542411

$3.19

18

NUT LOCK(10)

7542411

$3.19

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

20

BOLT(10)

7515472

$2.39

21

ARM,SHOCK

1540942-067

Unavailable

22

BOLT(10)

7515438

$4.79

23

Shaft (See Footnote) (See Suspension Pg. B10, Ref. 18)

-------

Unavailable

24

Shaft (See Footnote) (See Suspension Pg. B10, Ref. 21)

-------

Unavailable

25

SPACER, OUTER

5332784

Unavailable

26

MACHINERY BUSHING(10)

7556301

$3.19

26

MACHINERY BUSHING(10)

7556301

$3.19

27

WHEEL, IDLER

1543018

$56.65

28

BOLT Substituted by 7515491

7515433

$1.59

28

BOLT Substituted by 7515491

7515433

$1.59

29

SCREW ,(10)

7517313

$4.79

30

STRAP,LIM,FRT,X10,QA

5411498

Unavailable

31

Shaft, Arm, Pivot (See Footnote) (See Suspension Pg. B10, Ref. 22)

-------

Unavailable

32

NUT,NYLOC,(10)

7542344

$3.99

33

BOLT(10)

7512377

$4.79

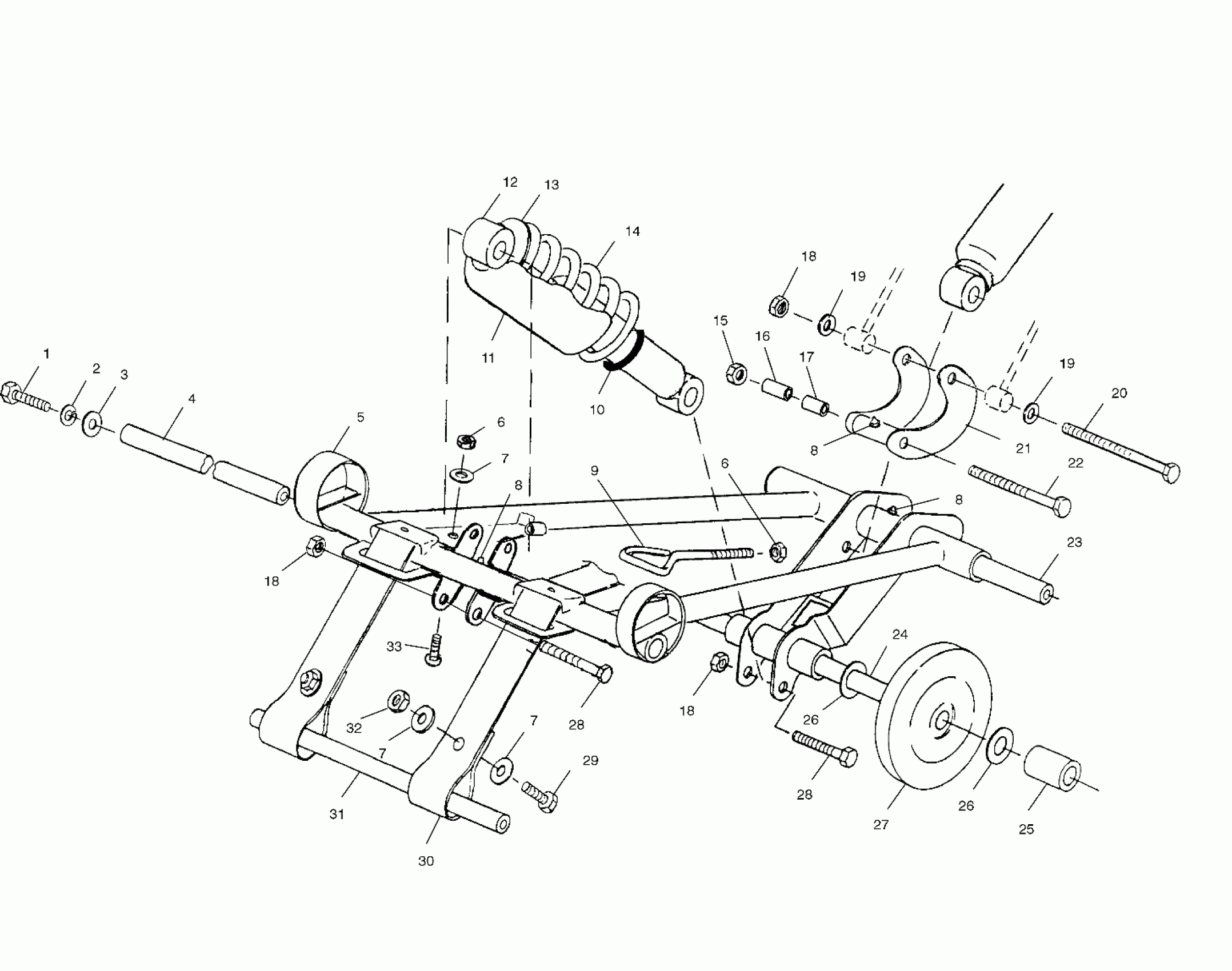

Polaris 800 XCR - S00SB8AS FRONT TORQUE ARM - S00SB8AS (4954015401b011) Diagram

Bolt

WASHER(10)

WASHER(10)

Shaft

ARM,FR.TORQUE,X-10,QA,BLK Substituted by 1541466-067

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

WASHER(10)

WASHER(10)

WASHER(10)

ZERK,FITTING,THREADED(10)

ZERK,FITTING,THREADED(10)

ZERK,FITTING,THREADED(10)

BOLT,EYE

RING, RETAINING(10)

SHIELD-SPRING

Shock, Front Track (See Footnote) (See Fox Shock - Front Track Pg. B13 For Details)

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

SPRING,BLACK,COMP.

NUT LOCK(10)

Spacer

BUSHING,PIVOT TUBE

NUT LOCK(10)

NUT LOCK(10)

NUT LOCK(10)

WASHER-.390X.750X.020-WAVE-Y

WASHER-.390X.750X.020-WAVE-Y

BOLT(10)

ARM,SHOCK

BOLT(10)

Shaft (See Footnote) (See Suspension Pg. B10, Ref. 18)

Shaft (See Footnote) (See Suspension Pg. B10, Ref. 21)

SPACER, OUTER

MACHINERY BUSHING(10)

MACHINERY BUSHING(10)

WHEEL, IDLER

BOLT Substituted by 7515491

BOLT Substituted by 7515491

SCREW ,(10)

STRAP,LIM,FRT,X10,QA

Shaft, Arm, Pivot (See Footnote) (See Suspension Pg. B10, Ref. 22)

NUT,NYLOC,(10)

BOLT(10)
