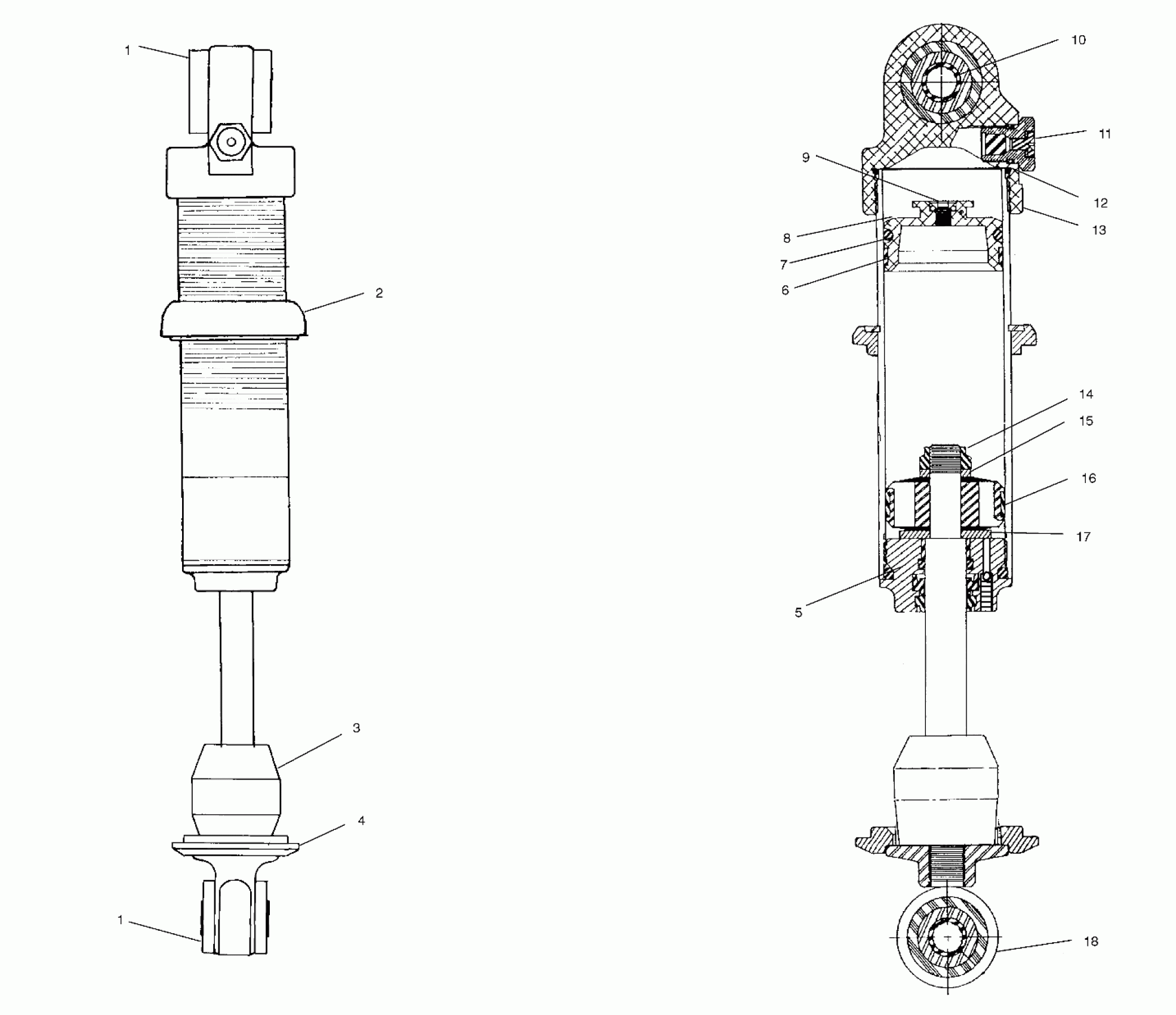

Polaris 800 XCR - S00SB8AS FOX SHOCK - IFS - S00SB8AS (4954015401b014) Diagram

#

Description
Price

-

SHOCK-GAS IFP,IFS

7041811

Unavailable

1

BUSHING,EYELET (.205)

1500137

$24.99

1

BUSHING,EYELET (.205)

1500137

$24.99

2

RING,SPRING PRELOAD,ADJ

5432304

Unavailable

3

BUMPER,JOUNCE

5410855

$39.19

4

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

5

O-RING,(10).103W-1.299ID

1500020

$10.63

5

O-RING INNER (10)

1500021

$10.99

5

Screw

1500070

$6.39

5

BALL, (FOX)

1500071

$6.76

5

WIPER INNER Substituted by 1500266

1500025

$24.27

5

WIPER,CLR,OUTER

1500024

Unavailable

5

BEARING ASM.498DIA,812-03-006

1500265

$71.43

6

RING,PISTON,FLOATING,FOX

1500006

$19.99

7

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

8

PISTON-FLOATING

1500187

$26.98

9

SCREW/O-RING ASM.

1500161

Unavailable

10

SLEEVE,STEEL

1500138

Unavailable

11

VALVE ASM,AIR

1500014

$69.99

11

Screw

1500019

$6.39

11

O-RING,OUTER

1500023

$2.84

12

O-RING,.103W-1.549ID

1500108

$10.99

13

BODY,CAP-1.46X7/16 804-00-004

1500288

Unavailable

14

NUT,LOCK

1500016

$12.79

15

BUSHING,BACKUP

1500015

$6.76

16

DAMPER,PISTONRING,FOX

1500002

$31.99

17

PLATE,TOP OUT

1500017

$20.22

18

EYELET,BASE

1500164

$93.08
