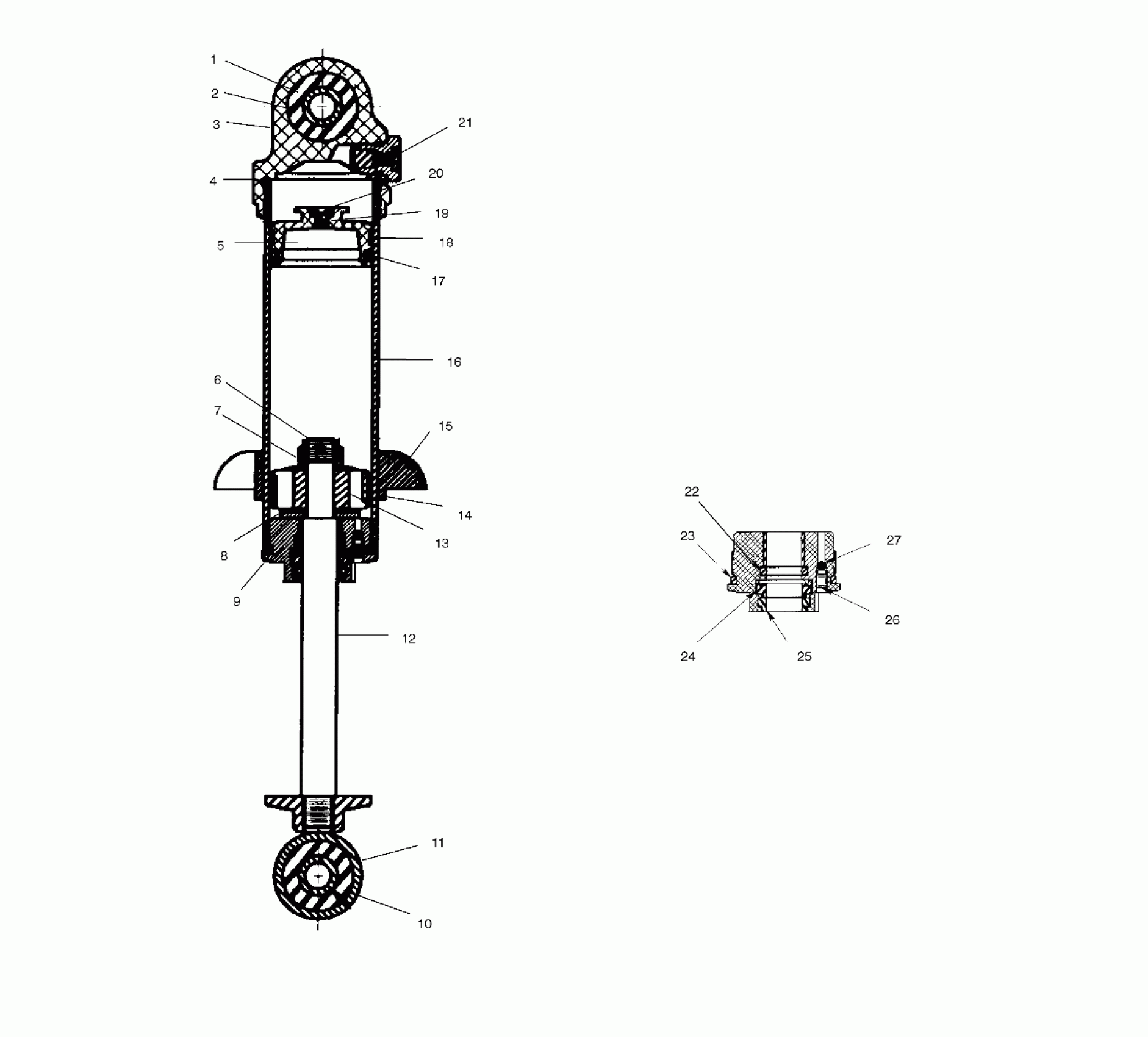

Polaris 800 XCR - S00SB8AS FOX SHOCK - FRONT TRACK - S00SB8AS (4954015401b013) Diagram

#

Description
Price

-

SHOCK-FRT TRACK,X-10,FOX

7041808

Unavailable

1

BUSHING,EYELET

1500182

Unavailable

2

BUSHING, (1.24)

5020640

Unavailable

3

BODY-CAP,LOW PROFILE,FOX

1500183

Unavailable

4

O-RING,.103W-1.549ID

1500108

$10.99

5

PISTON-FLOATING

1500187

$26.98

6

NUT,LOCK

1500016

$12.79

7

BUSHING,BACKUP

1500015

$6.76

8

PLATE,TOP OUT

1500017

$20.22

9

BEARING ASM.498DIA,812-03-006

1500265

$71.43

10

BUSHING-EYELET.35X.575X.595FOX

1500184

Unavailable

11

EYELET,BASE

1500164

$93.08

12

SHAFT

1500153

$51.99

13

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

14

DAMPER,PISTONRING,FOX

1500002

$31.99

15

RING-SPRING,PRELOAD

1500194

Unavailable

16

BODY,5.3TLGX4.5TH204-04-030

1500299

$45.30

17

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

18

RING,PISTON,FLOATING,FOX

1500006

$19.99

19

O-RING,DRUM OUTER

1500022

Unavailable

20

SCREW/O-RING ASM.

1500161

Unavailable

21

Screw

1500019

$6.39

22

O-RING INNER (10)

1500021

$10.99

23

O-RING,(10).103W-1.299ID

1500020

$10.63

24

WIPER INNER Substituted by 1500266

1500025

$24.27

25

WIPER,CLR,OUTER

1500024

Unavailable

26

Screw

1500070

$6.39

27

BALL, (FOX)

1500071

$6.76
