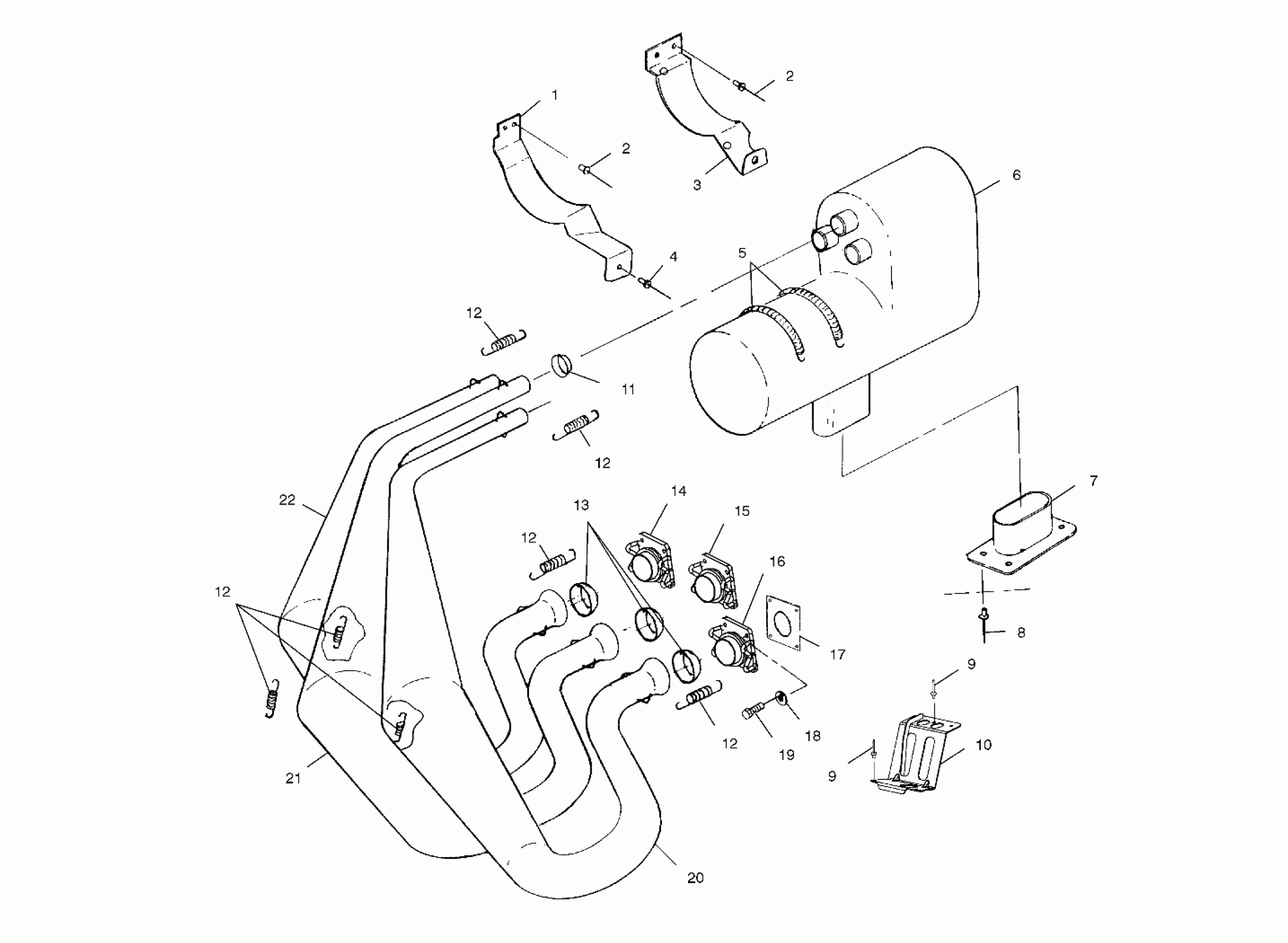

Polaris 800 XCR - S00SB8AS EXHAUST SYSTEM - S00SB8AS (4954015401c004) Diagram

#

Description
Price

1

BRKT-RESONATOR,FRONT,BLK

5243821-029

$78.39

2

RIVET(50)

7621433

$1.49

2

RIVET(50)

7621433

$1.49

3

BRKT,RESONATOR,REAR,BLK

5243822-029

$67.11

4

RIVET(50) Substituted by 7661130

7661643

Unavailable

5

SPRING,RESONATOR

7041542

Unavailable

6

RESONATOR, BLK

1260727-029

Unavailable

7

WELD-STINGER OUTLET,BLK

1261003-029

Unavailable

8

RIVET, BLIND(50)

7621467

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

10

SUPPORT,PIPE

1261039

$49.59

11

SEAL,EXH.SOCKET,(1.25 ID)

3610049

$28.32

12

SPRING-EXHAUST

7041687

$5.65

12

SPRING-EXHAUST

7041687

$5.65

12

SPRING-EXHAUST

7041687

$5.65

12

SPRING-EXHAUST

7041687

$5.65

12

SPRING-EXHAUST

7041687

$5.65

13

SEAL,EXH.SOCKET

3610047

$36.41

14

HEADPIPE,MAG,BLK.

1260871-029

$92.99

15

HEADPIPE,CTR,BLK.

1260862-029

$92.99

16

HEADPIPE,PTO,BLK

1260861-029

Unavailable

17

Gasket, Exhaust (See Footnote) (See Cylinder Pg. C10, Ref. 15)

-------

Unavailable

18

Washer (See Footnote) (See Cylinder Pg. C10, Ref. 17)

-------

Unavailable

19

Bolt (See Footnote) (See Cylinder Pg. C10, Ref. 16)

-------

Unavailable

20

TUNED PIPE,PTO,ASM.

1260970

Unavailable

20

COVER-PIPE HALF,3RD SECT A PTO

5243882

$21.43

20

COVER-PIPE HALF,3RD SECT B PTO

5243883

Unavailable

20

MATTE-PIPE HALF 3RD SECT PTO

5830079

$10.71

20

BAND,MUFFLER

7080686

$21.43

21

BAND,MUFFLER

7080686

$21.43

21

TUNED PIPE,CTR,ASM.

1260971

$298.99

21

COVER-PIPE HALF 3RD SECT A CTR

5241539

Unavailable

21

COVER-PIPE HALF 3RD SECT B CTR

5241540

$25.59

21

MATTE-PIPE HALF 3RD SECT CTR

5830099

$10.71

22

BAND,MUFFLER

7080686

$21.43

22

TUNED PIPE,MAG,ASM.

1260972

Unavailable

22

COVER-PIPE HALF 2ND SECT A MAG

5243872

$23.95

22

COVER-PIPE HALF 2ND SECT B MAG

5243873

$23.95

22

COVER-PIPE HALF 3RD SECT A MAG

5243874

Unavailable

22

COVER-PIPE HALF 3RD SECT B MAG

5243875

$32.95

22

MATTE-PIPE HALF 2ND SECT A MAG

5830186

$5.75

22

MATTE-PIPE HALF 3RD SECT MAG

5830187

Unavailable

22

MATTE-PIPE NACF 2ND 8ECT B MAG

5830194

Unavailable
