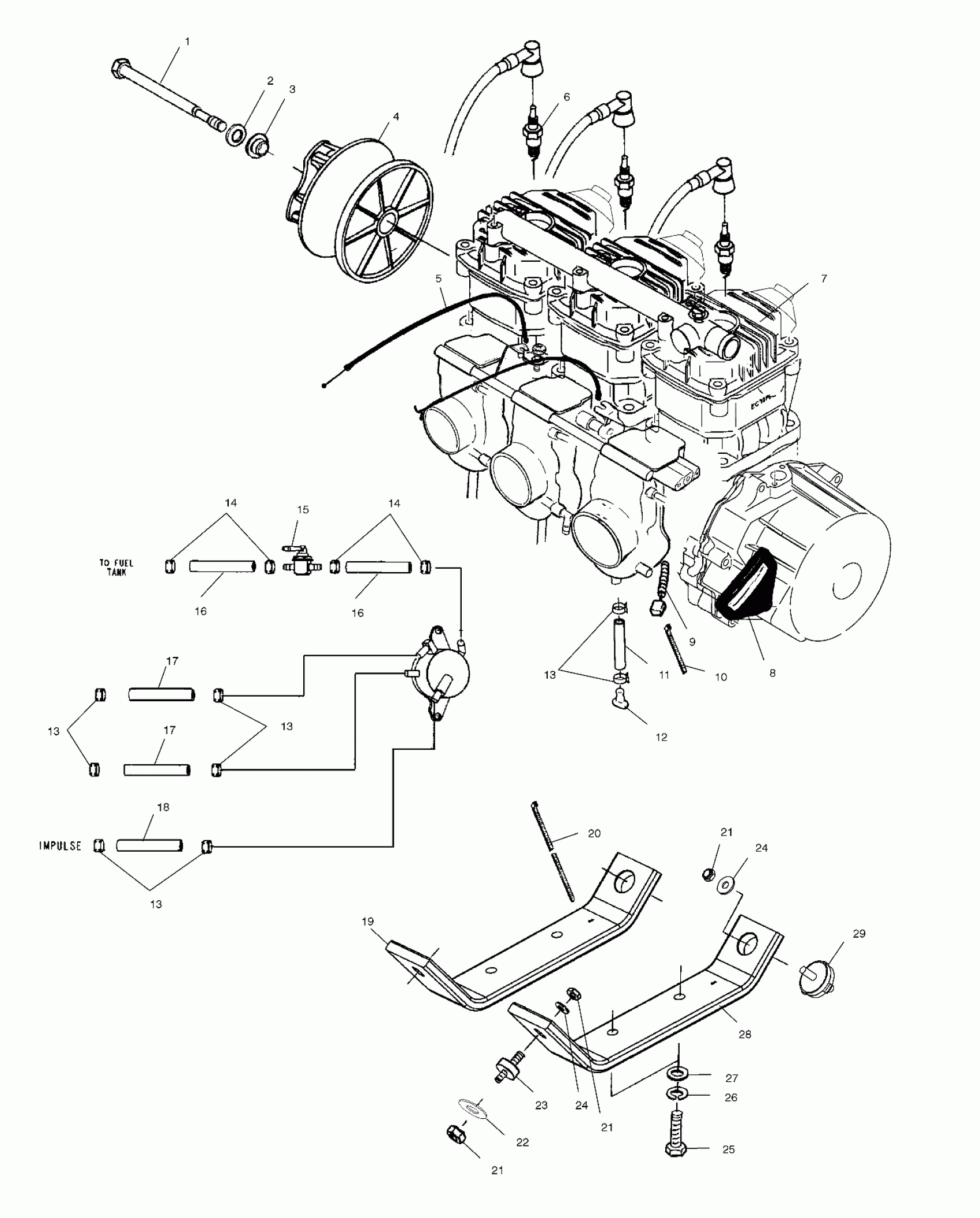

Polaris 800 XCR - S00SB8AS ENGINE MOUNTING - S00SB8AS (4954015401c005) Diagram

SCREW,M14X1.5X215

7517501

Unavailable

WASHER(10)

7556003

$6.39

WASHER,CLUTCH RET.

5131872

Unavailable

Asm., Drive Clutch (See Footnote) (See Drive Clutch Pg. C2, Ref. 18)

-------

Unavailable

CABLE,THROTTLE,W/OIL,38MM.

7080731

Unavailable

SPARKPLUG(8)

3070165

$3.99

ENG.(S.B.)EC79PL-010 (EC79PL012) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required fo

3085608

$4,924.99

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

STRAP, PANDUIT Substituted by 7080003

7080527

Unavailable

HOSE,WATERTRAP,5/16,45�

5411708

Unavailable

PLUG,TRAP

5431893

$12.94

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

CLAMP,SPRING,(10)

7080534

$1.59

CLAMP,SPRING,(10)

7080534

$1.59

VALVE,FUEL SHUT-OFF

7052217

Unavailable

FUEL,LINE,ETHER,RED,3/8' [No Longer Available]

8350016

Unavailable

FUEL,LINE,ETHER,RED,3/8' [No Longer Available]

8350016

Unavailable

FUEL,LINE,ETHER,RED,5/16" [Item NotAvailable]

8350017

Unavailable

FUEL,LINE,ETHER,RED,5/16" [Item NotAvailable]

8350017

Unavailable

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

PLATE-ENGINE,LH

5243343

Unavailable

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

NUT,FLEXLOCK,(10)

7547008

$6.39

NUT,FLEXLOCK,(10)

7547008

$6.39

NUT,FLEXLOCK,(10)

7547008

$6.39

WASHER,FLAT(10)

7555915

$3.19

MOUNT,ENG.

3110061

$84.99

WASHER(10)

7555893

$1.49

WASHER(10)

7555893

$1.49

BOLT(10)

7512575

Unavailable

WASHER LOCK(10)

7553101

$3.99

WASHER(10)

7555817

Unavailable

PLATE-ENGINE,RH

5243344

Unavailable

MOUNT-ENGINE,3/8-16,3-TAB Substituted by 3021298

3021098

Unavailable
