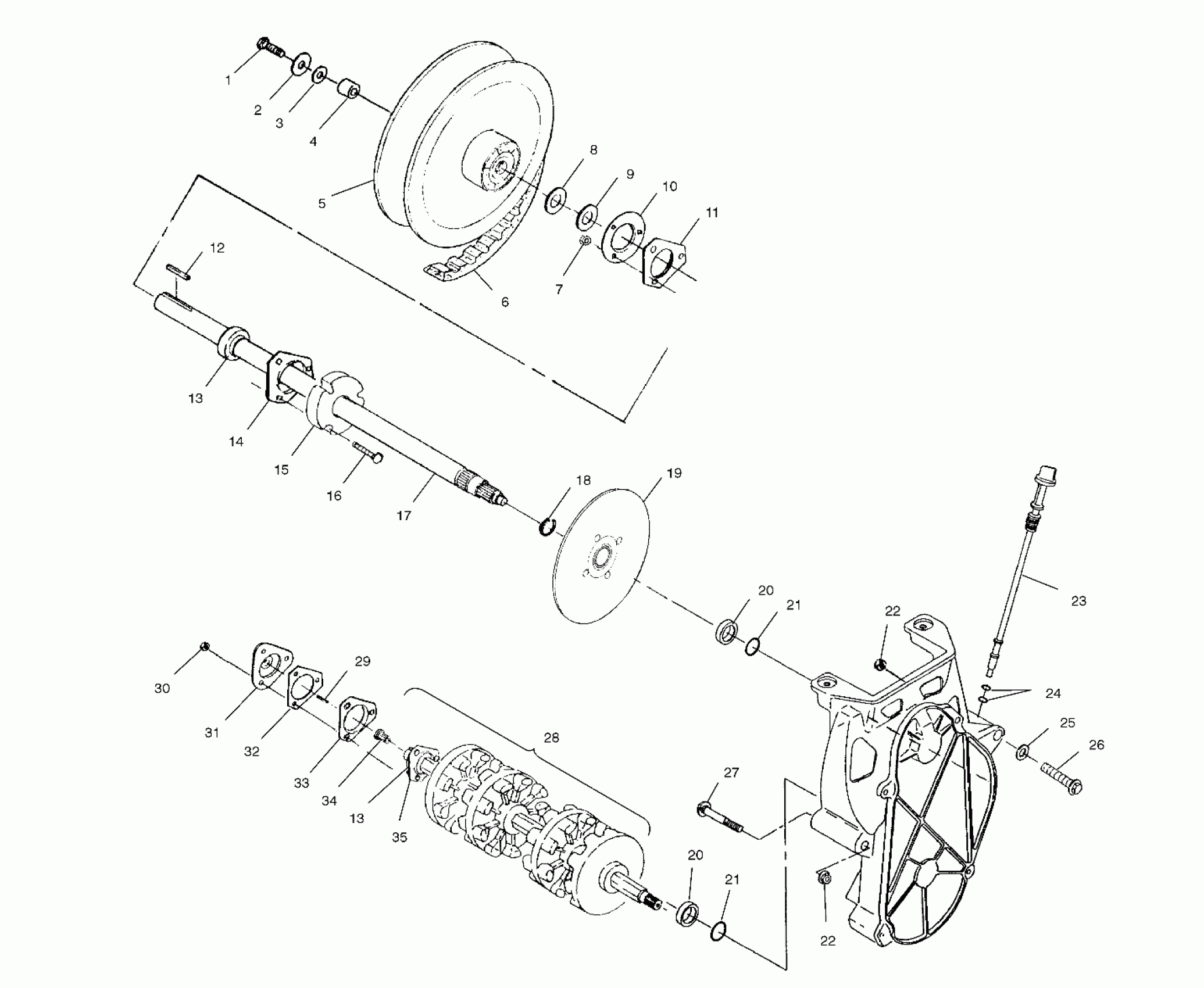

Polaris 800 XCR - S00SB8AS DRIVE TRAIN - S00SB8AS (4954015401b007) Diagram

#

Description
Price

1

SCREW(10)

7517581

$1.59

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER-.328X1.00X1.320

5132286

$11.59

5

Clutch, Driven, Adjustable (See Footnote) (See Driven Clutch Pg. C3, Ref. 16)

-------

Unavailable

6

BELT,DRIVE(5)

3211075

$109.99

7

NUT,NYLOC,(10)

7542344

$3.99

8

BUSHING(10)

7555864

$2.39

9

WASHER SPECIAL(10)

7556509

$1.59

10

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

11

GASKET,JACKSHAFT,BLK.

5811095

$2.41

12

KEY(10)

7721116

$12.94

13

BEARING

3514525

$31.99

13

BEARING

3514525

$31.99

14

FLANGETTE

5222751

$16.44

15

SPACER,BRG,JACKSHAFT

5131443

$40.79

16

BOLT,CARRIAGE(10)

7515383

Unavailable

17

JACKSHAFT,MED,15T,W/BRG (Incl. 13,18)

1332228

$164.75

18

RING, RETAINING(10)

7710422

$3.99

19

BRAKE DISC,SNOW,6385 CR,ASM.

1910403

Unavailable

20

SLEEVE, SEAL

5020588

$23.99

20

SLEEVE, SEAL

5020588

$23.99

21

O RING,(10)

5410613

$1.99

21

O RING,(10)

5410613

$1.99

22

NUT(10)

7542423

$3.99

22

NUT(10)

7542423

$3.99

23

DIPSTICK Substituted by 1332143

5431419

Unavailable

24

O-RING

5410675

$1.60

25

WASHER WROUGHT(10)

7558403

$4.79

26

SCREW(10)

7517709

$3.03

27

BOLT(10)

7515428

$4.79

28

DRIVESHAFT ASM,4 DR,W/BRG,XHS (Incl. 34,35)

1590282

Unavailable

29

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

30

NUT-5/16-18 NYLOK-Y

7542324

$1.49

31

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

32

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

33

FLANGETTE Substituted by 5243529

5241178

$13.75

34

BUSHING METAL SPEEDO

3280019

$11.99

35

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99
