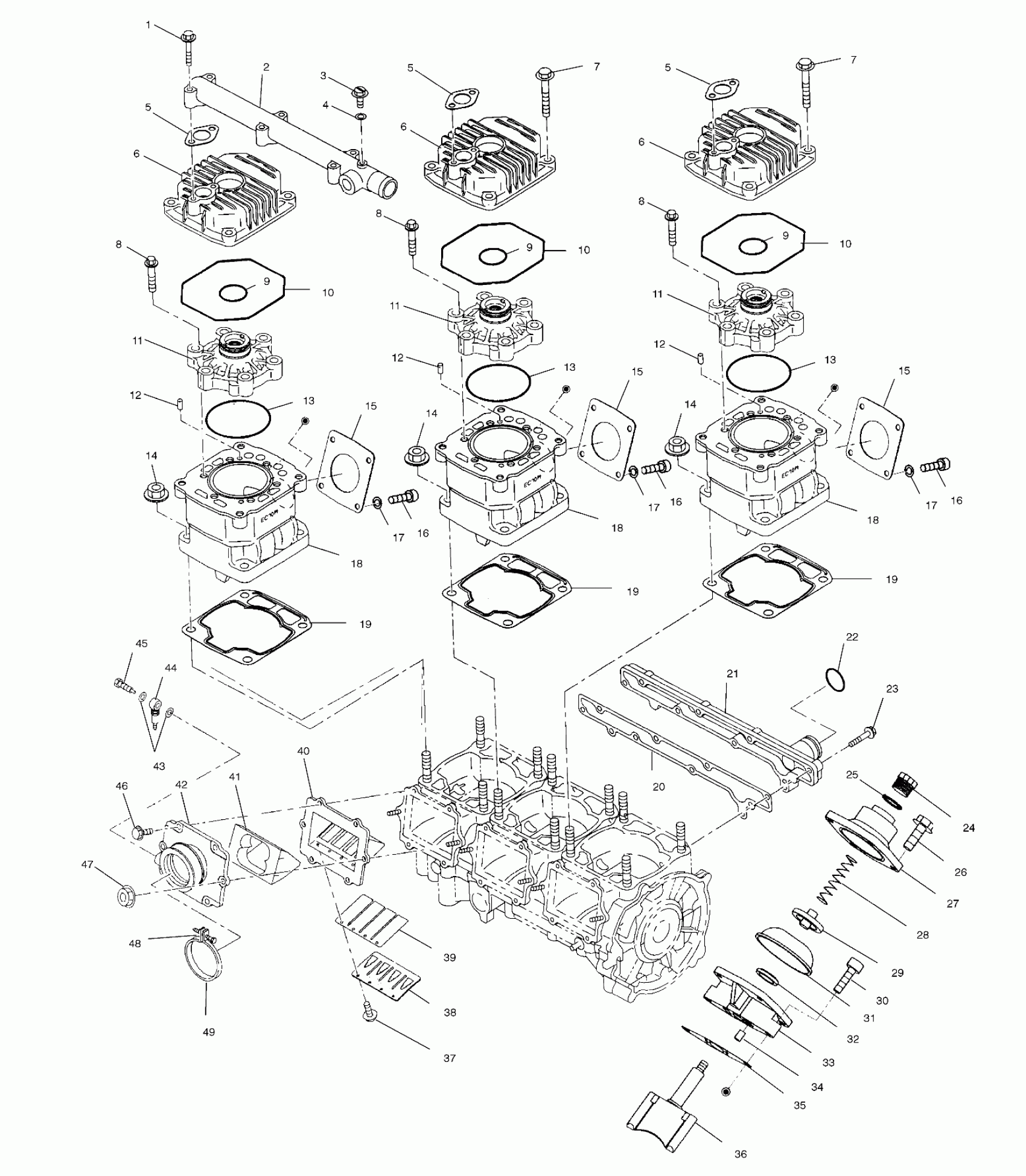

Polaris 800 XCR - S00SB8AS CYLINDER - S00SB8AS (4954015401c009) Diagram

#

Description
Price

1

BOLT

3080109

Unavailable

2

MANIFOLD

3086113

$216.99

3

PLUG, AIR VENT Substituted by 7517266

3083350

Unavailable

4

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET(10)

3082937

Unavailable

5

GASKET(10)

3082937

Unavailable

5

GASKET(10)

3082937

Unavailable

6

COVER,HEAD

3085786

$103.19

6

COVER,HEAD

3085786

$103.19

6

COVER,HEAD

3085786

$103.19

7

Bolt, Flange

3084437

Unavailable

7

Bolt, Flange

3084437

Unavailable

8

BOLT, FLANGE ,(10)

3084435

Unavailable

8

BOLT, FLANGE ,(10)

3084435

Unavailable

8

BOLT, FLANGE ,(10)

3084435

Unavailable

9

O-RING,(CYL.HD.)

3085110

Unavailable

9

O-RING,(CYL.HD.)

3085110

Unavailable

9

O-RING,(CYL.HD.)

3085110

Unavailable

10

O-RING,(HD.COVER)

3085111

Unavailable

10

O-RING,(HD.COVER)

3085111

Unavailable

10

O-RING,(HD.COVER)

3085111

Unavailable

11

CYLINDER,HEAD

3086140

Unavailable

11

CYLINDER,HEAD

3086140

Unavailable

11

CYLINDER,HEAD

3086140

Unavailable

12

PIN, DOWEL Substituted by 3086838

3080103

$7.14

12

PIN, DOWEL Substituted by 3086838

3080103

$7.14

12

PIN, DOWEL Substituted by 3086838

3080103

$7.14

13

O-Ring

3085734

$42.99

13

O-Ring

3085734

$42.99

13

O-Ring

3085734

$42.99

14

NUT-FLANGE(10)

3082911

$1.99

14

NUT-FLANGE(10)

3082911

$1.99

14

NUT-FLANGE(10)

3082911

$1.99

15

GASKET,EXHAUST

3085736

$20.22

15

GASKET,EXHAUST

3085736

$20.22

15

GASKET,EXHAUST

3085736

$20.22

16

BOLT

3086062

Unavailable

16

BOLT

3086062

Unavailable

16

BOLT

3086062

Unavailable

17

WASHER SPRING(10)

3080077

$2.39

17

WASHER SPRING(10)

3080077

$2.39

17

WASHER SPRING(10)

3080077

$2.39

18

CYLINDER * (Incl. 12)

3086148

Unavailable

18

CYLINDER * (Incl. 12)

3086148

Unavailable

18

CYLINDER * (Incl. 12)

3086148

Unavailable

19

GASKET,CYL.(NA)

3085243

Unavailable

19

GASKET,CYL.(NA)

3085243

Unavailable

19

GASKET,CYL.(NA)

3085243

Unavailable

20

GASKET,COVER,INLET WATER

3085247

$10.71

21

COVER,WATER INLET

3085246

$87.19

22

O-Ring

3084461

Unavailable

23

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

24

ADJUSTER,SPRING

3085744

Unavailable

25

O-Ring

3086126

$3.99

26

BOLT,FLANGE(10)

3086125

$2.39

27

COVER,VALVE EXHAUST

3086120

Unavailable

28

SPRING-EXHAUST VALVE

3086830

Unavailable

29

CAP,VALVE EXHAUST

3086118

Unavailable

30

Bolt

3086123

Unavailable

31

BELLOWS,VALVE,EXHAUST

3086119

Unavailable

32

Washer

3086124

$22.79

33

HOUSING,VALVE,EXHAUST (Incl. 34)

3086117

Unavailable

34

PIN, DOWEL

3084721

$4.79

35

GASKET,VALVE,EXHAUST

3086122

Unavailable

36

VALVE,EXHAUST

3086141

Unavailable

37

SCREW, REED

3084565

$3.29

38

Stopper

3084564

$19.03

39

Valve

3086115

$20.22

40

REED VALVE,ASM. (Incl.37-39)

3086114

$99.19

41

STUFFER,REED VALVE

3085738

Unavailable

42

Adapter

3085735

Unavailable

43

WASHER(10) Substituted by 7555998

3083138

Unavailable

44

VALVE, CHECK

3083894

Unavailable

45

BOLT-BANJO

3083137

Unavailable

46

Bolt, Flange

3084126

Unavailable

47

NUT, FLANGE(10)

3083856

$2.39

48

SCREW,(10)

3081497

$2.39

49

BAND ASM. (Incl. 48)

3083166

$19.84
