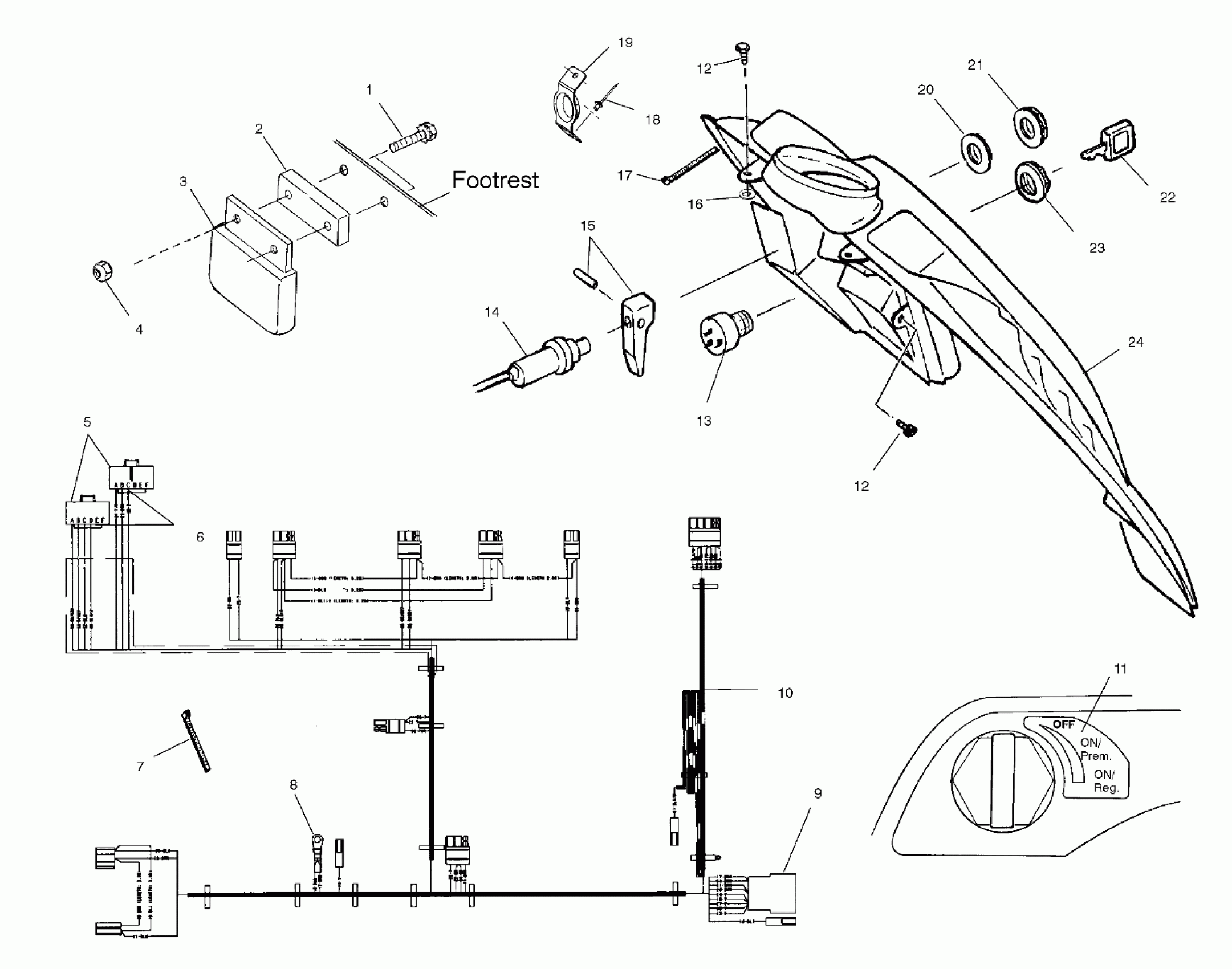

Polaris 800 XCR - S00SB8AS CONSOLE - S00SB8AS (4954015401a013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

6

SOCKET-PACKARD#12047767

4010192

Unavailable

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

Terminal, Ring

4020092

Unavailable

9

Housing w/Receptacle

4020057

$3.51

10

HARNESS-MAIN WIRE,MID TPS

2460727

Unavailable

11

DECAL,IGN,OFF/PREM/REG

7078604

Unavailable

12

SCREW(10)

7515199

$1.49

12

SCREW(10)

7515199

$1.49

13

KIT-IGNITION SWITCH,ES,FUEL

2201614

$89.03

14

CABLE,CHOKE,SINGLE-PULL (Incl. 15,21)

7080734

Unavailable

15

KIT-CHOKE CONTROL

2200188

$24.27

16

WASHER,NYLON

7555932

$2.39

17

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

18

RIVET, POP(50)

7621330

$1.49

19

GUIDE-RECOIL

5243049

$9.70

20

WASHER-LOCK(10)

7571610

$3.99

21

Nut

7080229

$19.99

22

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

23

NUT,IGNITION

7547035

$8.79

24

CONSOLE,HYBRID,BLK

5432906

Unavailable
