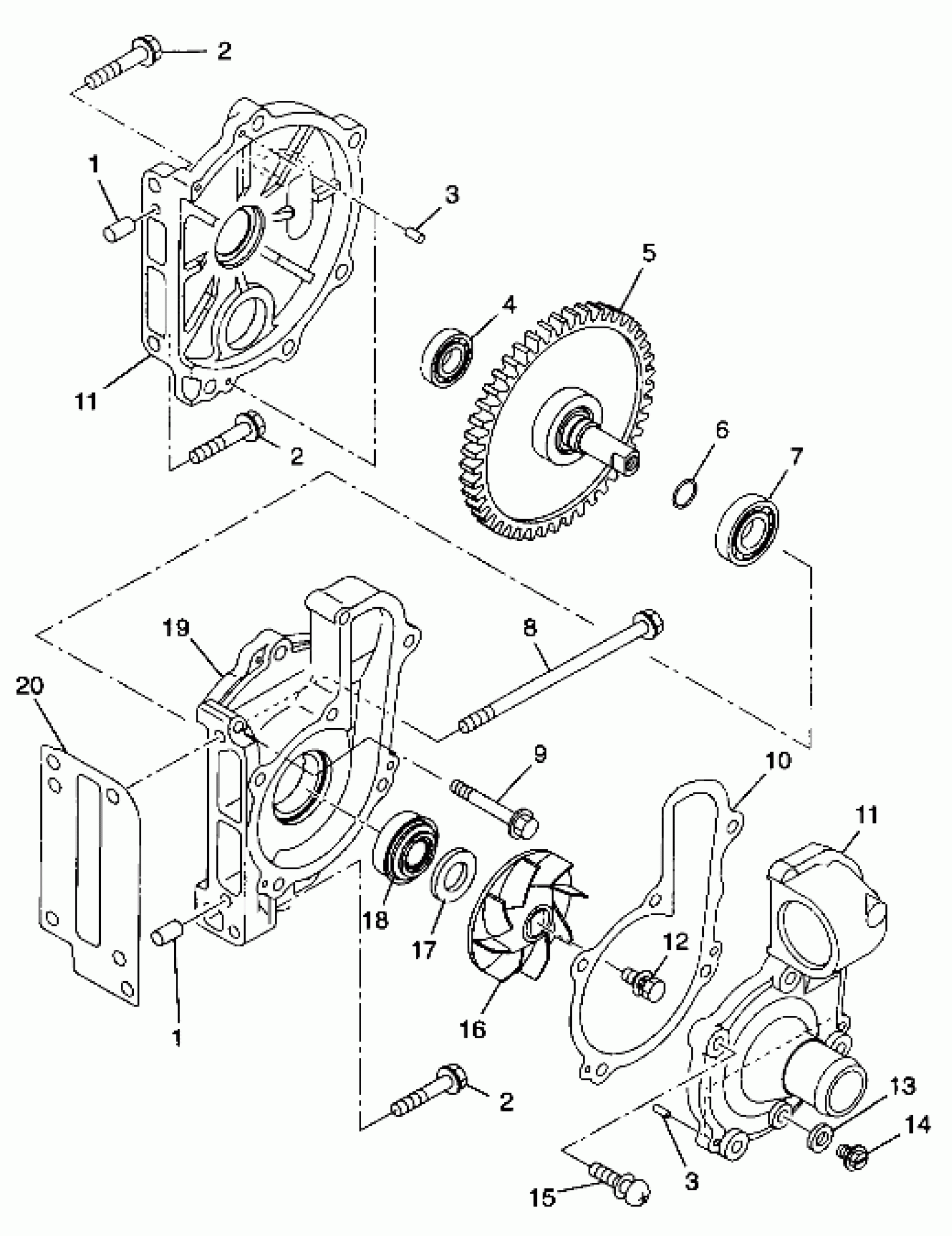

Polaris 800 XCR - 099AB8AS WATER PUMP - 099AB8AS (4948434843c014) Diagram

#

Description
Price

1

PIN, DOWEL Substituted by 3086838

3080103

$7.14

1

PIN, DOWEL Substituted by 3086838

3080103

$7.14

2

Bolt, Flange

3085295

$2.63

2

Bolt, Flange

3085295

$2.63

2

Bolt, Flange

3085295

$2.63

3

PIN, DOWEL

3084721

$4.79

3

PIN, DOWEL

3084721

$4.79

4

BEARING, BALL

3085286

Unavailable

5

SHAFT,WATER PUMP *

3085269

Unavailable

6

O-RING,(WATER PUMP SHAFT)

3085149

Unavailable

7

BALLBEARING

3085145

Unavailable

8

Bolt, Flange

3085272

$6.23

9

BOLT&WASHER

3085470

$1.49

10

GASKET,PUMP CASING 1

3085794

Unavailable

11

PUMP ASM,WATER * (Incl. 1,3-7,9-12,15-18)

3085791

Unavailable

11

CASING 1,PUMP Substituted by 3085791 (Incl. 3)

3085792

Unavailable

11

PUMP ASM,WATER * (Incl. 1,3-7,9-12,15-18)

3085791

Unavailable

11

CASING 1,PUMP Substituted by 3085791 (Incl. 3)

3085792

Unavailable

12

Bolt

3085270

Unavailable

13

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

14

PLUG, AIR VENT Substituted by 7517266

3083350

Unavailable

15

SCREW&WASHER ASM.(10)

3084221

$2.39

16

IMPELLER UNIT

3085174

Unavailable

17

PLATE,SEALING

3085175

Unavailable

18

Seal, Mechanical

3085384

$60.70

19

PUMP,WATER Substituted by 3085791 (Incl. 1,3,4,7,18)

3085793

Unavailable

20

GASKET, WATER PUMP

3085271

Unavailable
