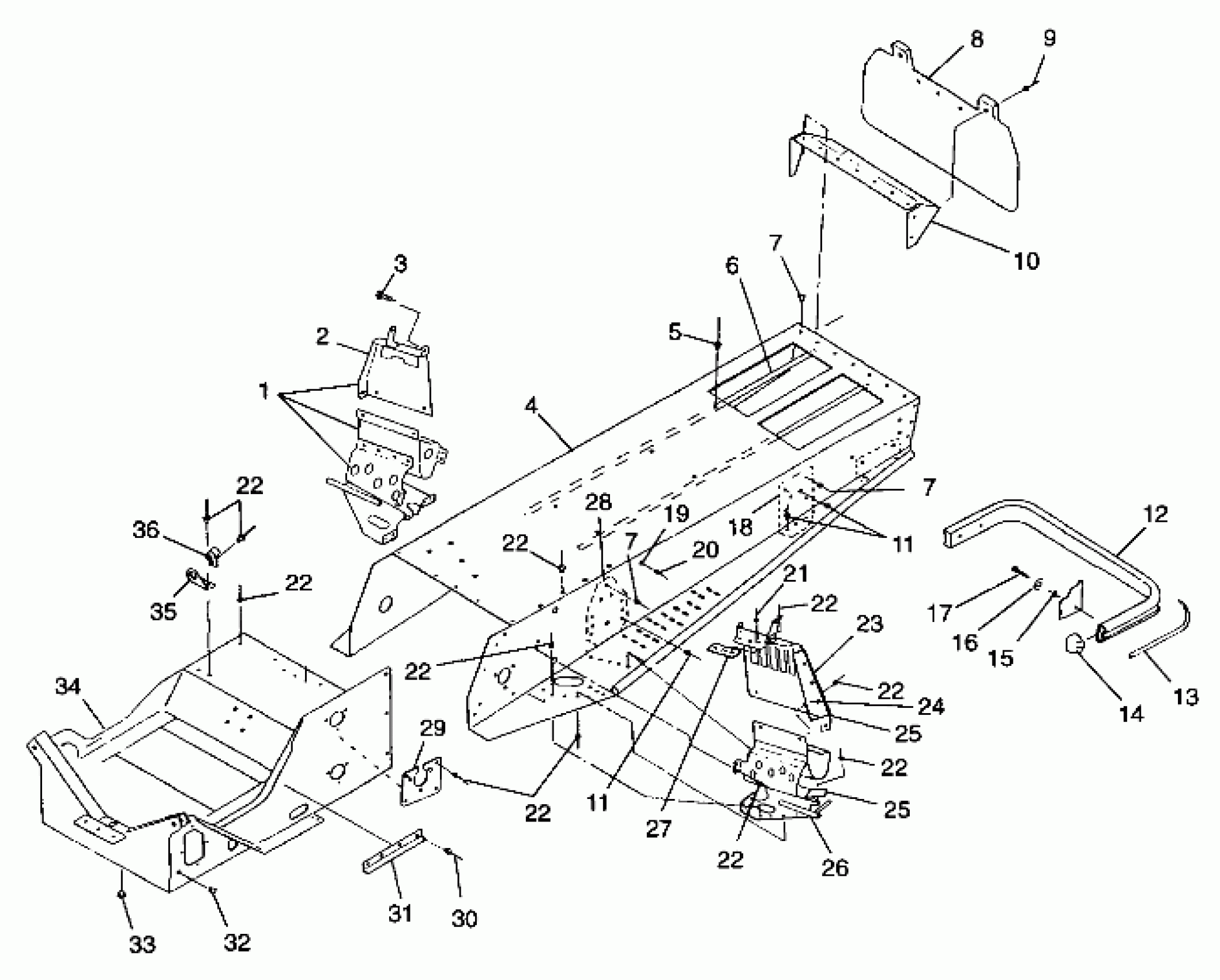

Polaris 800 XCR - 099AB8AS TUNNEL - 099AB8AS (4948434843a005) Diagram

#

Description
Price

1

FOOTREST, RH

1012281

Unavailable

2

MT,RH,CONSOLE,BLK.

5242493-067

$5.75

3

SCREW(10)

7512057

$2.38

4

TUNNEL ASM,X-10,BLK. (Incl. 10,16,18,28)

1012742-067

Unavailable

5

RIVET,3/16X.402(50)

7621432

$1.49

6

STRIP,WEAR

5510332

Unavailable

7

RIVET,SEMI-TUBE,(50)

7661841

$1.49

7

RIVET,SEMI-TUBE,(50)

7661841

$1.49

7

RIVET,SEMI-TUBE,(50)

7661841

$1.49

8

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106

5432149

Unavailable

9

POP RIVET(50)

7621418

$1.49

10

PANEL,TUNNELBACK

5241053-067

$308.99

11

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

11

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

12

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

13

BUMPERSTRIP,FR,VINYL

5811263-070

$77.99

14

CAP,BUMPER

5431995-070

Unavailable

15

WASHER(10)

7558301

$1.49

16

LOCK WASHER(10)

7552801

$1.59

17

SCREW(10)

7515159

$4.79

18

PAD,LH,R.SUSP.

5241268-067

Unavailable

18

PAD,RH,R.SUSP.

5241269-067

Unavailable

19

SNAP-MALE(10)

7080227

Unavailable

20

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

21

RIVET(50)

7661850

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

23

MT,LH,CONSOLE,BLK.

5242492-067

Unavailable

24

BRKT,LH,CORNERBRACE

5241320-067

Unavailable

24

BRKT,RH,CORNERBRACE

5241321-067

$8.29

25

FOOTREST, LH

1012280

Unavailable

25

FOOTREST, LH

1012280

Unavailable

26

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

26

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

27

PLATE,CLUTCH GUARD MT.

1012441

Unavailable

28

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

28

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

29

PLATE,BRG.SUPPORT,B'HD.

5211806-067

$10.71

30

RIVET(50)

7621452

$1.49

31

GUARD,ADAPTER GUIDE

5222857

$12.94

32

PLUG, HOLE(10)

7080416

$5.65

33

PLUG-HOLE

7080398

$4.84

34

BULKHEAD,CRC

1012672-067

Unavailable

35

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99

36

GUIDE, RECOIL

5431385

$10.51
