Description

Price

1

SEAT ASM. (Incl. 4-20,23-29,32,34)

2682383

Unavailable

1

COVER ASM,SEAT Substituted by 2682392

2682384

Unavailable

2

GASKET, GAS CAP

5810513

$8.89

2

CAP,FUELTANK,W/GASKET

2511226

Unavailable

3

GROMMET,FUELTANK

5410815

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

RIVET(50)

7621337

$1.49

7

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

8

NUT(10)

7546908

$2.63

9

REFLECTOR,CTR,SEAT

5432008

Unavailable

10

SCREW,SELF-TAP(10)

7522004

Unavailable

10

SCREW,SELF-TAP(10)

7522004

Unavailable

11

BRKT,SEAT MT,BLK

1012643-067

Unavailable

12

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

12

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

13

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

14

HOUSING,LH,LENS

5432002

Unavailable

14

HOUSING,RH,LENS

5432003

Unavailable

15

Bulb, Brakelight

4030045

Unavailable

16

LENS,RH

5432032

$44.51

16

LENS,LH

5432031

Unavailable

17

SCREW(10)

7512054

$2.39

18

BULB, T/L.

4032084

Unavailable

19

SCREW(10)

7511954

$1.19

20

NUT, WELL(10)

7541901

$6.39

21

WASHER,WROUGHT(10)

7558302

$1.59

22

SCREW(10)

7515159

$4.79

23

HARNESS,T/L,121,(SCULPT)

2460541

Unavailable

24

PICK-UP,FUEL,W/MESH

7052215

$49.99

25

RING,COMPRESSION(10)

7080768

$4.84

26

FUELLINE,3/18 ID,600CM. Substituted by 2871058

8450051-600

Unavailable

27

MTG.FLANGE,FUELTANK Substituted by 5244067

5211308

Unavailable

28

NUT(10)

7541925

$1.49

29

FITTING,ST.THRM,3/8 HOSE

7052214

$13.19

30

HOSE CLAMP, RED

7080003

$1.49

31

HOSE, 3/8"I.D.

8450060-625

Unavailable

32

FITTING,90 DEG,1/8,(10)

7052095

$4.79

33

FUELLINE,3MMX7MM

8450061-600

Unavailable

34

CABLE,TANK,RETENTION

7080559

Unavailable

35

HDWE.PKG,SEND.UNIT

2410012

Unavailable

35

HDWE.PKG,SEND.UNIT

2410012

Unavailable

36

SENDER,FUEL LEVEL

3280306

Unavailable

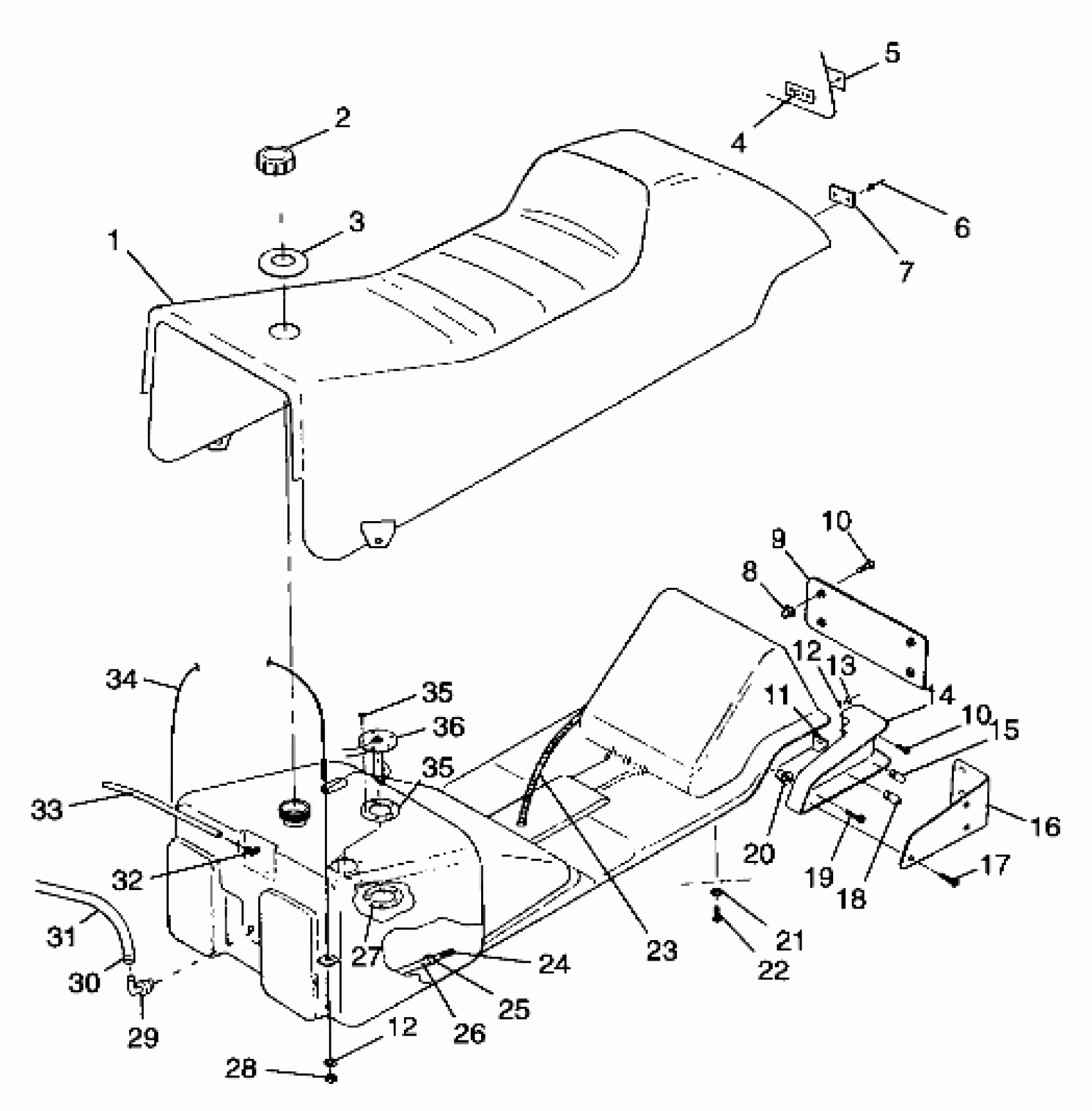

Polaris 800 XCR - 099AB8AS SEAT and GAS TANK - 099AB8AS (4948434843a006) Diagram

SEAT ASM. (Incl. 4-20,23-29,32,34)

COVER ASM,SEAT Substituted by 2682392

GASKET, GAS CAP

CAP,FUELTANK,W/GASKET

GROMMET,FUELTANK

GROMMET,RELATCH,1",BOTT.(10)

GROMMET,RELATCH,1",TOP(10)

RIVET(50)

TWISTLOCK,RELATCH,1",W/HOLE(10)

NUT(10)

REFLECTOR,CTR,SEAT

SCREW,SELF-TAP(10)

SCREW,SELF-TAP(10)

BRKT,SEAT MT,BLK

WSHR-.194X.475X.049 ZTB

WSHR-.194X.475X.049 ZTB

RIVET-POP,3/16(.376-.500)(50)

HOUSING,LH,LENS

HOUSING,RH,LENS

Bulb, Brakelight

LENS,RH

LENS,LH

SCREW(10)

BULB, T/L.

SCREW(10)

NUT, WELL(10)

WASHER,WROUGHT(10)

SCREW(10)

HARNESS,T/L,121,(SCULPT)

PICK-UP,FUEL,W/MESH

RING,COMPRESSION(10)

FUELLINE,3/18 ID,600CM. Substituted by 2871058

MTG.FLANGE,FUELTANK Substituted by 5244067

NUT(10)

FITTING,ST.THRM,3/8 HOSE

HOSE CLAMP, RED

HOSE, 3/8"I.D.

FITTING,90 DEG,1/8,(10)

FUELLINE,3MMX7MM

CABLE,TANK,RETENTION

HDWE.PKG,SEND.UNIT

HDWE.PKG,SEND.UNIT

SENDER,FUEL LEVEL
