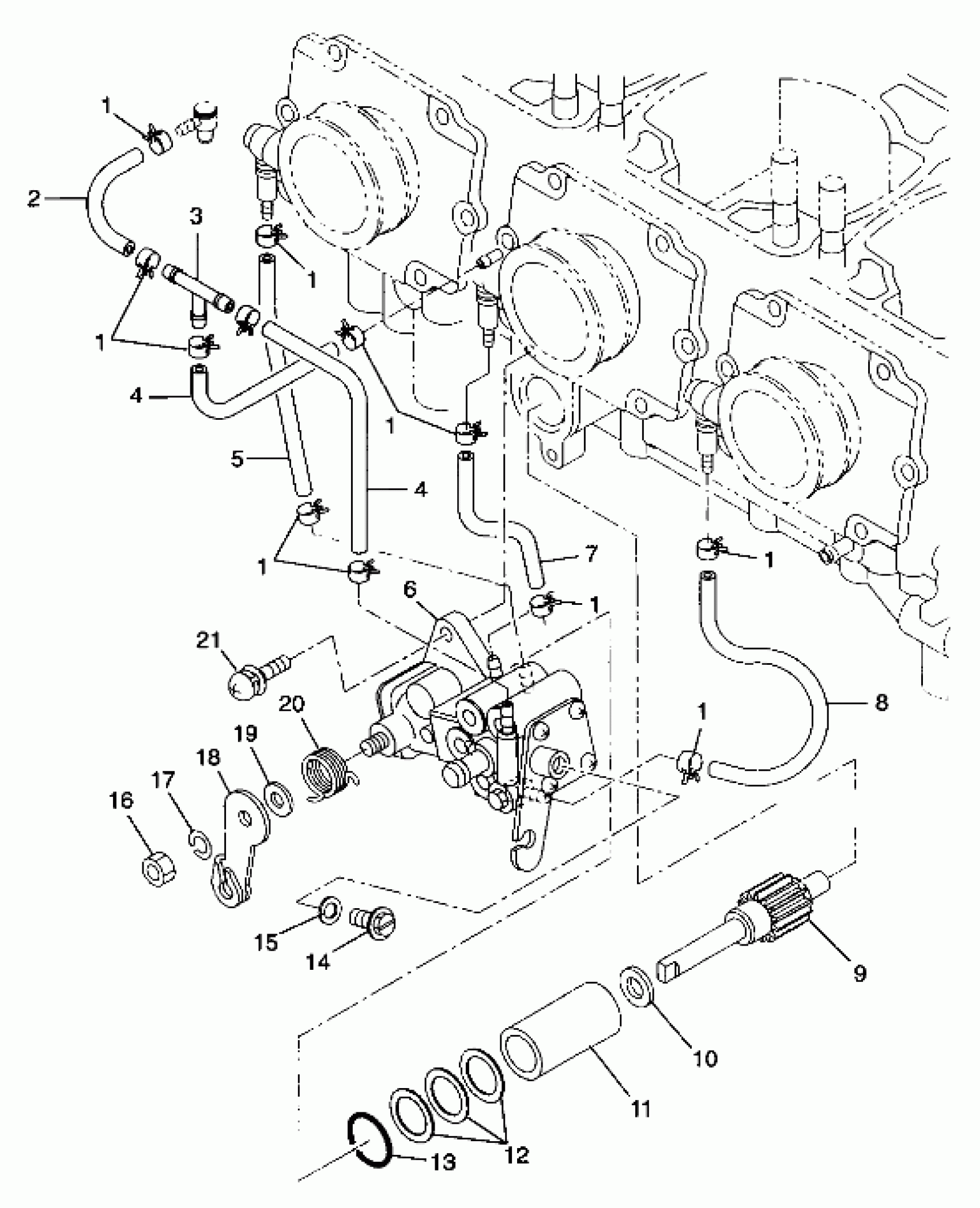

Polaris 800 XCR - 099AB8AS OIL PUMP - 099AB8AS (4948434843d003) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE,RUBBER

3086135

Unavailable

2

DESC NOT_AVAILABLE (Incl. 1,2)

3086143

Unavailable

3

T-TYPE,CONNECTOR

3086133

Unavailable

4

PIPE,VINYL Substituted by 3086131

3086132

Unavailable

4

PIPE,VINYL (Incl. 1,3,4)

3086131

Unavailable

4

PIPE,VINYL Substituted by 3086131

3086132

Unavailable

4

PIPE,VINYL (Incl. 1,3,4)

3086131

Unavailable

5

PIPE 1,VINYL

3084467

$28.32

6

PUMP ASM,OIL (Incl. 13-20)

3085804

Unavailable

7

PIPE,VINYL Substituted by 3084467 (Incl. 1,7)

3085543

Unavailable

8

PIPE,VINYL 1

3085157

$29.99

9

GEAR,SMALL,OIL PUMP

3083131

$89.99

10

SPACER

3083130

$1.59

11

BUSHING(OIL PUMP)

3083353

$31.99

12

SPACER #3 (.6mm)

3083673

Unavailable

12

SPACER #2 (.3mm)

3083672

Unavailable

12

SPACER #1 (.15mm)

3083671

Unavailable

13

O RING

3083127

Unavailable

14

SCREW-AIR VENT

3083125

Unavailable

15

PACKING(10)

3083126

$4.03

16

NUT(10)

3083120

$3.19

17

WASHER-SPRING(10)

3083121

$299.99

18

LEVER,CONTROL

3085796

$38.71

19

COLLAR, CAMSHAFT(10)

3083445

$2.39

20

SPRING-RETURN

3083123

Unavailable

21

SCREW&WASHER,(10)

3083783

$2.39
