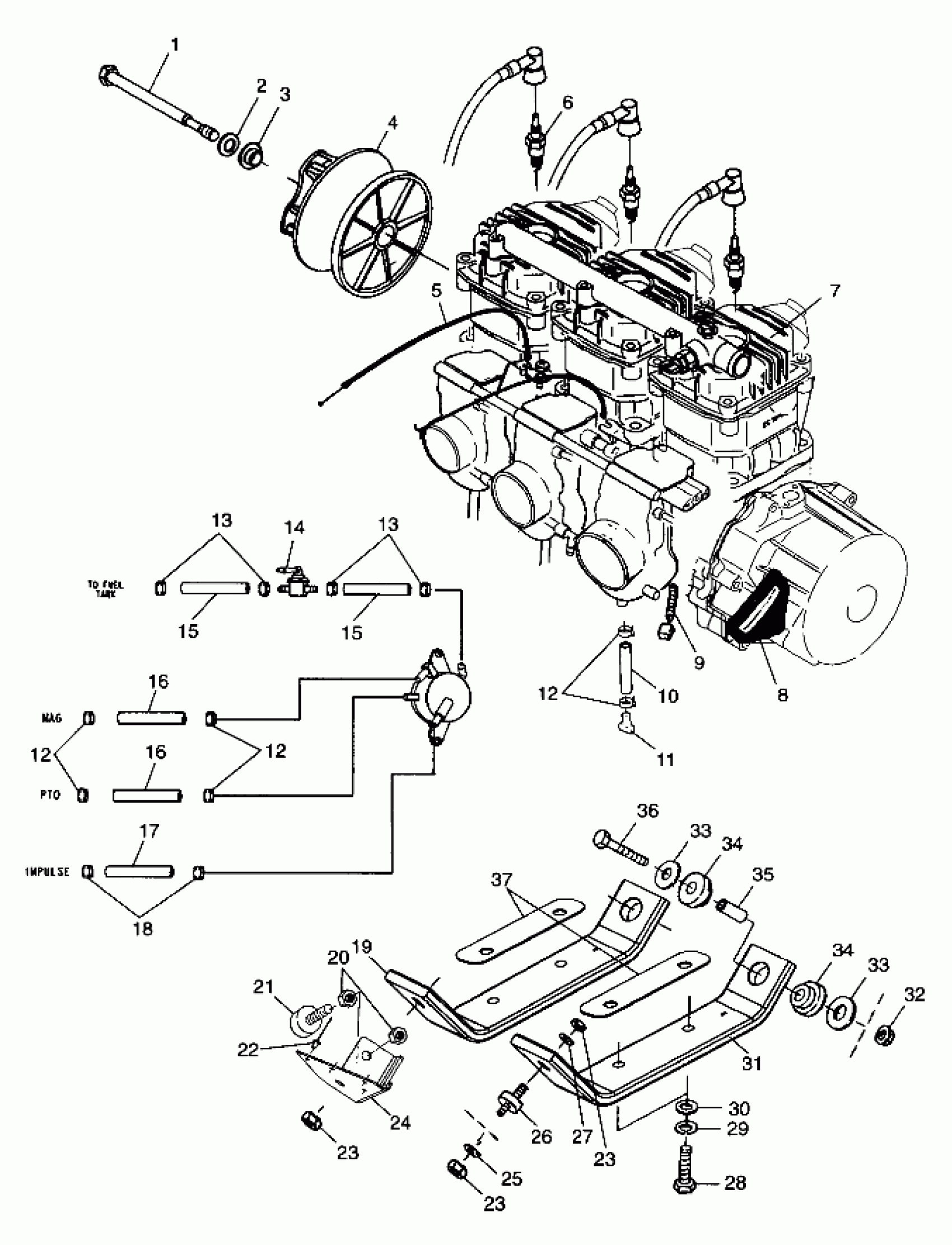

Polaris 800 XCR - 099AB8AS ENGINE MOUNTING - 099AB8AS (4948434843c007) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET.

5131872

Unavailable

4

Asm., Drive Clutch (See Footnote) (See Drive Clutch Pg. C3, Ref. 18)

-------

Unavailable

5

CABLE,THROTTLE,W/OIL,38MM.

7080731

Unavailable

6

SPARKPLUG(8)

3070165

$3.99

7

ENG.(S.B.)EC79PL-010 (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required

3085608

$4,924.99

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

10

HOSE-WATERTRAP-1/4,45� Substituted by 5411708

5411590

Unavailable

11

PLUG,TRAP

5431893

$12.94

12

CLAMP,SPRING,(10)

7080534

$1.59

12

CLAMP,SPRING,(10)

7080534

$1.59

12

CLAMP,SPRING,(10)

7080534

$1.59

13

CLAMP,HOSE(10)

7080544

Unavailable

13

CLAMP,HOSE(10)

7080544

Unavailable

14

VALVE,FUEL SHUT-OFF

7052217

Unavailable

15

HOSE, 3/8"I.D.

8450060-625

Unavailable

15

HOSE, 3/8"I.D.

8450060-625

Unavailable

16

FUEL LINE, 5 FT.

8450044-153

Unavailable

16

FUEL LINE, 5 FT.

8450044-153

Unavailable

17

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

18

HOSE CLAMP, RED

7080003

$1.49

19

PLATE-ENGINE,S.P.-LH

5243528

Unavailable

20

NUT,HEX(10)

7542414

$4.79

21

STOP,TORQUE,COARSE

3110056

Unavailable

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

23

NUT,FLEXLOCK,(10)

7547008

$6.39

23

NUT,FLEXLOCK,(10)

7547008

$6.39

23

NUT,FLEXLOCK,(10)

7547008

$6.39

24

LIMITER,TORQUE

1012277-067

Unavailable

25

WASHER,FLAT(10)

7555915

$3.19

26

MOUNT,ENGINE

3110062

Unavailable

27

WASHER(10)

7555893

$1.49

28

BOLT(10)

7512575

Unavailable

29

WASHER LOCK(10)

7553101

$3.99

30

WASHER(10)

7555817

Unavailable

31

PLATE,RH,ENGINE Substituted by 5243344

5241704

Unavailable

32

NUT, LOCK,(10)

7542503

$10.39

33

WASHER(10)

7555740

$1.59

33

WASHER(10)

7555740

$1.59

34

MOUNT, ENGINE

5410390

Unavailable

34

MOUNT, ENGINE

5410390

Unavailable

35

SPACER, (MTR.MT.)

5332778

Unavailable

36

SCREW(10)

7512530

$5.59

37

PLATE,ENG.MT,REINF.

5211886

$6.63
