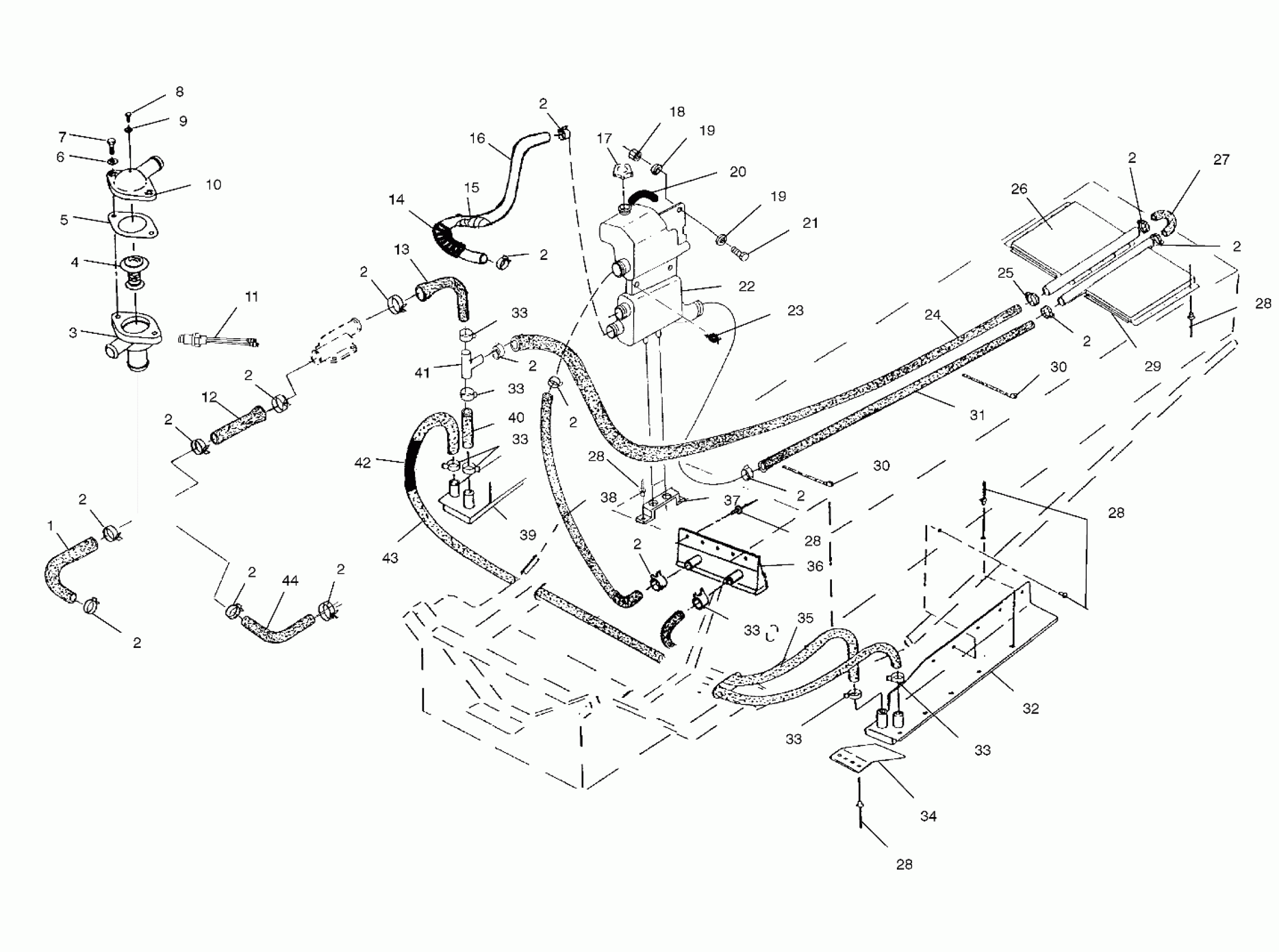

Polaris 800 XCR - 099AB8AS COOLING SYSTEM - 099AB8AS (4948434843b009) Diagram

#

Description
Price

1

HOSE,ENG.OUT/STAT.IN,1IN.ID.

5411457

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

2

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

3

HOUSING-THERMOSTAT,MACH

5132025

$102.99

4

AUTOSTAT,120DEG.

7051017

Unavailable

5

Gasket, Thermostat

5830020

Unavailable

6

LOCK WASHER(10)

7552901

$1.49

7

BOLT(10)

7512383

$1.99

8

SCREW,(10) Substituted by 7517565

7517266

$15.99

9

WASHER,FLAT,(10)

7555998

$1.49

10

CAP,THERMOSTAT HSG,MACH.

5130942

$40.79

11

SENSOR,TEMP

3086138

Unavailable

12

HOSE,STAT.OUT/BRAKE IN,1IN.ID.

5411459

Unavailable

13

HOSE,R.COOLER,3-WAY

5410845

$13.19

14

TUBING,CONVOL,8"X1"

5411396

$9.70

15

SPRING,HOSE RETAINER

7042041

Unavailable

16

HOSE,PUMP/TANK,COOL.

5411004

Unavailable

17

CAP, PRESSURE,(13 LB)

2511270

$24.27

18

NUT-LOCK(10)

7542122

$1.49

19

WASHER,WROUGHT(10)

7558302

$1.59

19

WASHER,WROUGHT(10)

7558302

$1.59

20

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

21

BOLT(10)

7512240

$3.99

22

TANK,COOLANT(NO BLEED)

5432557

Unavailable

23

CLIP, PLASTIC(10)

4020139

$4.79

24

HOSE,3-WAY,R.COOLER

5410962

Unavailable

25

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

26

EXCHANGER,R.COOLING

2511301

$226.99

27

HOSE,COOLING

5410758

Unavailable

28

RIVET,INTERLOCK,B(50)

7661638

$1.49

28

RIVET,INTERLOCK,B(50)

7661638

$1.49

28

RIVET,INTERLOCK,B(50)

7661638

$1.49

28

RIVET,INTERLOCK,B(50)

7661638

$1.49

28

RIVET,INTERLOCK,B(50)

7661638

$1.49

29

TAPE,35FT,SEAL,R.COOL.

5811252

Unavailable

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

HOSE,(1" X 10 FT.)

8450048-305

Unavailable

32

COOLER,LH,SIDE(XTRA 10) Substituted by 1240059

2511257

$144.99

33

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

33

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

33

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

33

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

33

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

33

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

34

GUARD, COOL.EXT.

5222863

$32.99

35

HOSE-CROSSOVER

5410350

Unavailable

36

EXCHANGER,COOL.CTR.

2511239

Unavailable

37

BRKT,SURGE TANK,COINED

5241331

$118.99

38

HOSE,CTR.COOLER/TOP SURGE

5411070

Unavailable

39

COOLER,RH,SIDE(XTRA 10)

2511258

$227.99

40

HOSE,WATER,305 CM.

8450050-305

Unavailable

41

CONNECTOR,TEE,3/4"

7052093

$8.79

42

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

43

HOSE-CROSSOVER

5410324

Unavailable

44

HOSE,STAT.OUT/TANK IN,1IN.ID.

5411458

Unavailable
