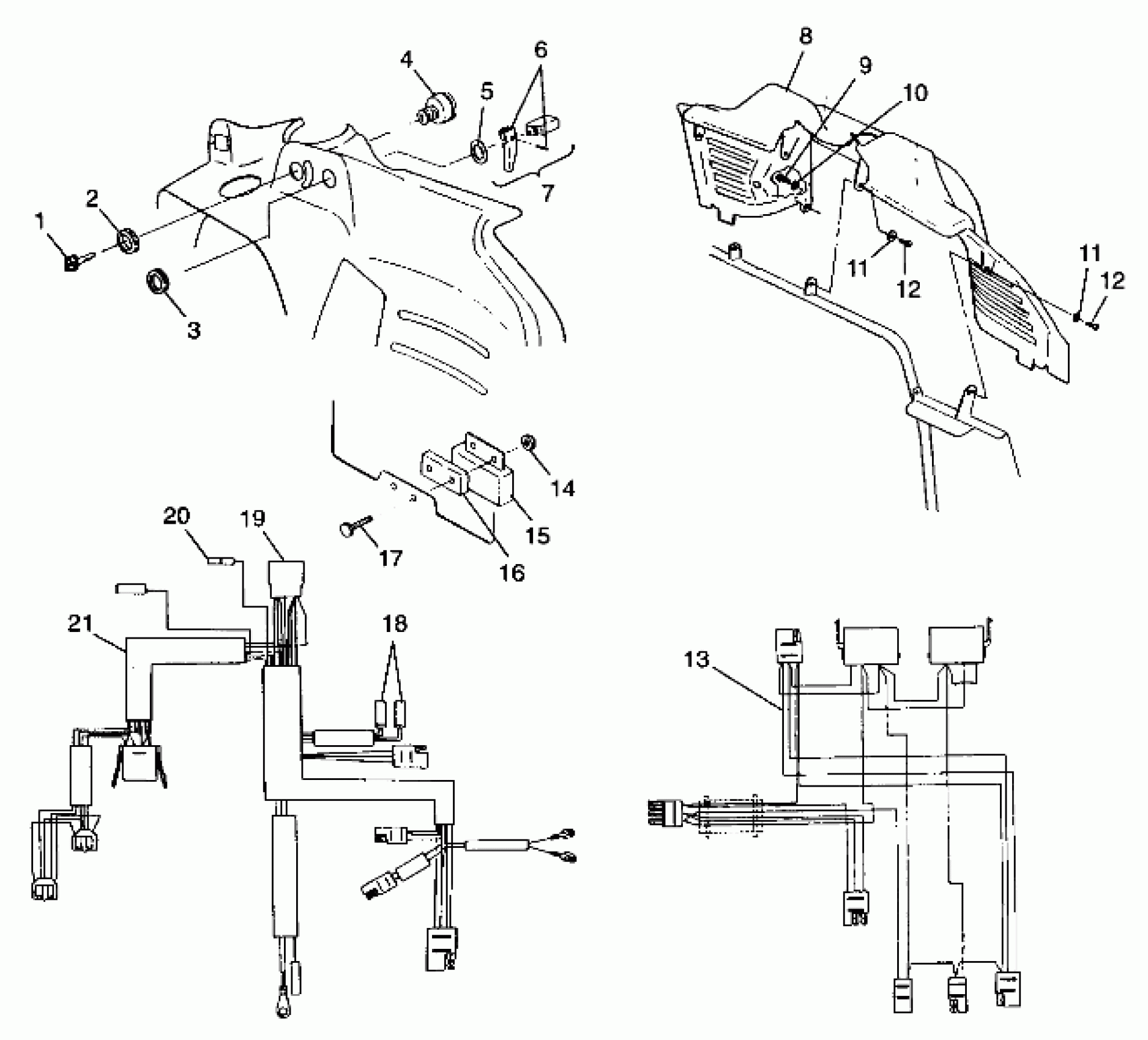

Polaris 800 XCR - 099AB8AS CONSOLE and WIRE HARNESS - 099AB8AS (4948434843a011) Diagram

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D or E switch. Letter code will be labeled on unders

5410611

Unavailable

NUT,IGNITION

7547035

$8.79

NUT,CHOKE

5432944

$8.79

KIT,IGN.SWITCH,COMPLETE (Incl. 1)

2201214

Unavailable

WASHER-LOCK(10)

7571610

$3.99

LEVER,CHOKE Substituted by 2201439

5432943

Unavailable

CABLE,CHOKE,SINGLE-PULL

7080734

Unavailable

CONSOLE,BASIC

5431781

Unavailable

SCREW(10)

7512069

Unavailable

WASHER(10)

7555792

$4.79

WASHER(10)

7558301

$1.49

WASHER(10)

7558301

$1.49

SCREW(10)

7512252

Unavailable

SCREW(10)

7512252

Unavailable

HARNESS,HANDLEBAR

2460506

Unavailable

NUT(10)

7541925

$1.49

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

HEAT SINK

5210650

Unavailable

BOLT(10)

7512031

$2.23

Housing

4020153

$1.49

Housing w/Receptacle

4020057

$3.51

HOUSING

4020133

Unavailable

HARNESS,MAIN,AGR

2460682

Unavailable
