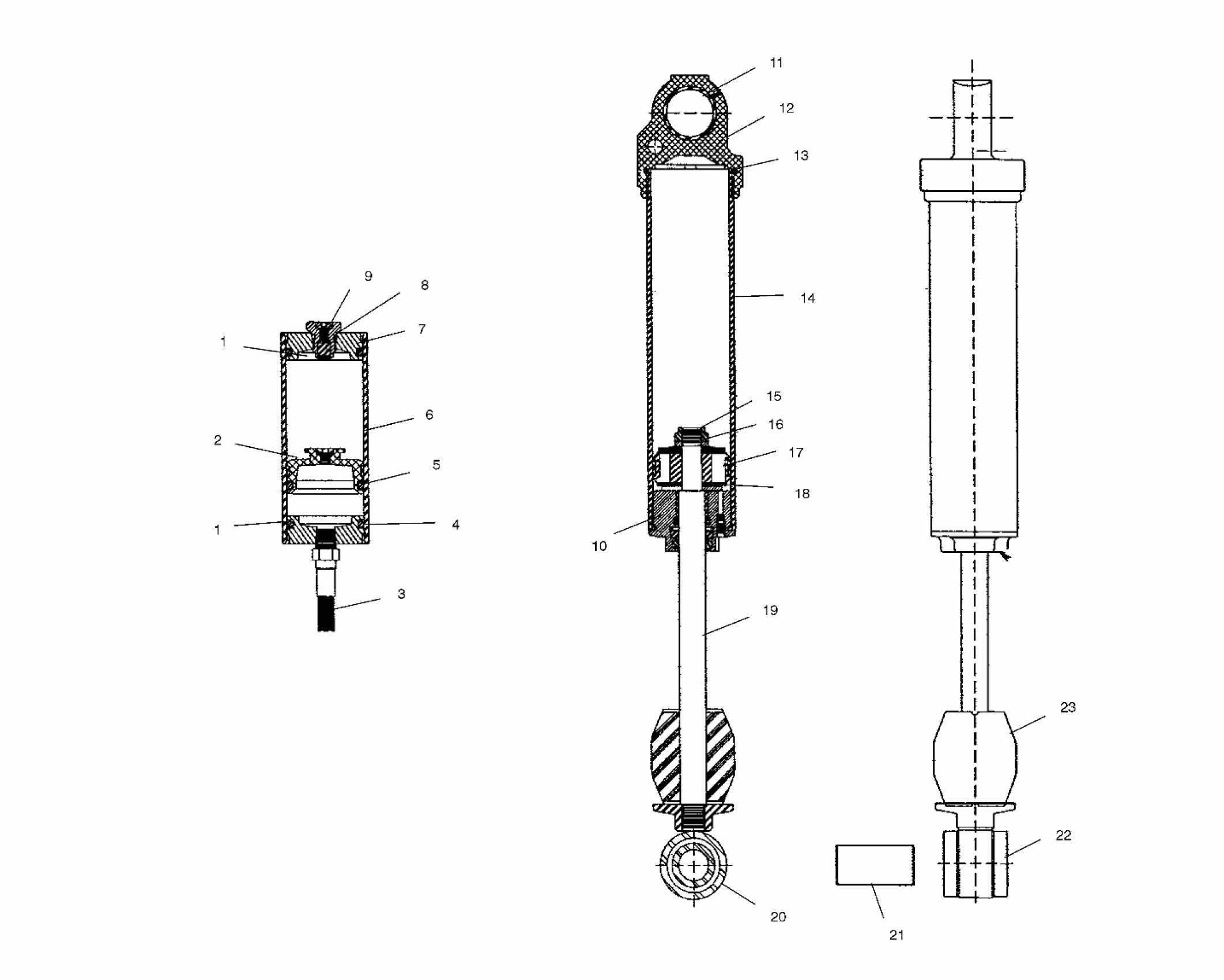

Polaris 800 XC SP M-10 F/O - S02NE8CS SHOCK (REAR TRACK)(M-10) - S02NE8CS (4973467346E01) Diagram

#

Description
Price

-

Asm., Reservoir [Incl. 1-9]

1500449

Unavailable

-

Shock, Rear Track

7041934

Unavailable

1

Seal, O-Ring

1500450

Unavailable

1

Seal, O-Ring

1500450

Unavailable

2

Piston, Floating

1500187

$26.98

3

Hose

1500445

Unavailable

4

Cap, Reservoir

1500163

$69.51

5

O-Ring

1500003

$8.89

6

Reservoir

1500451

Unavailable

7

Cap, Reservoir

1500160

$216.17

8

O-Ring

1500023

$2.84

9

Asm., Air Valve

1500014

$69.99

10

Asm., Bearing

1500186

Unavailable

10

O-Ring

1500020

$10.63

10

O-Ring

1500021

$10.99

10

Wiper

1500268

Unavailable

10

U-Cup

1500266

$24.27

10

Screw

1500070

$6.39

10

Ball

1500071

$6.76

11

Bearing

1500444

Unavailable

12

Cap, Body

1500448

Unavailable

13

O-Ring

1500108

$10.99

14

Body

1500446

$70.39

15

Nut, Lock

1500016

$12.79

16

Plate, Backup

1500015

$6.76

17

Bearing

1500002

$31.99

18

Plate, Top-Out

1500017

$20.22

19

Shaft

1500447

$38.89

20

EYELET

1500164

$93.08

21

SLEEVE

1500310

$23.99

22

Bushing

1500309

Unavailable

23

Bumper

5410855

$39.19
