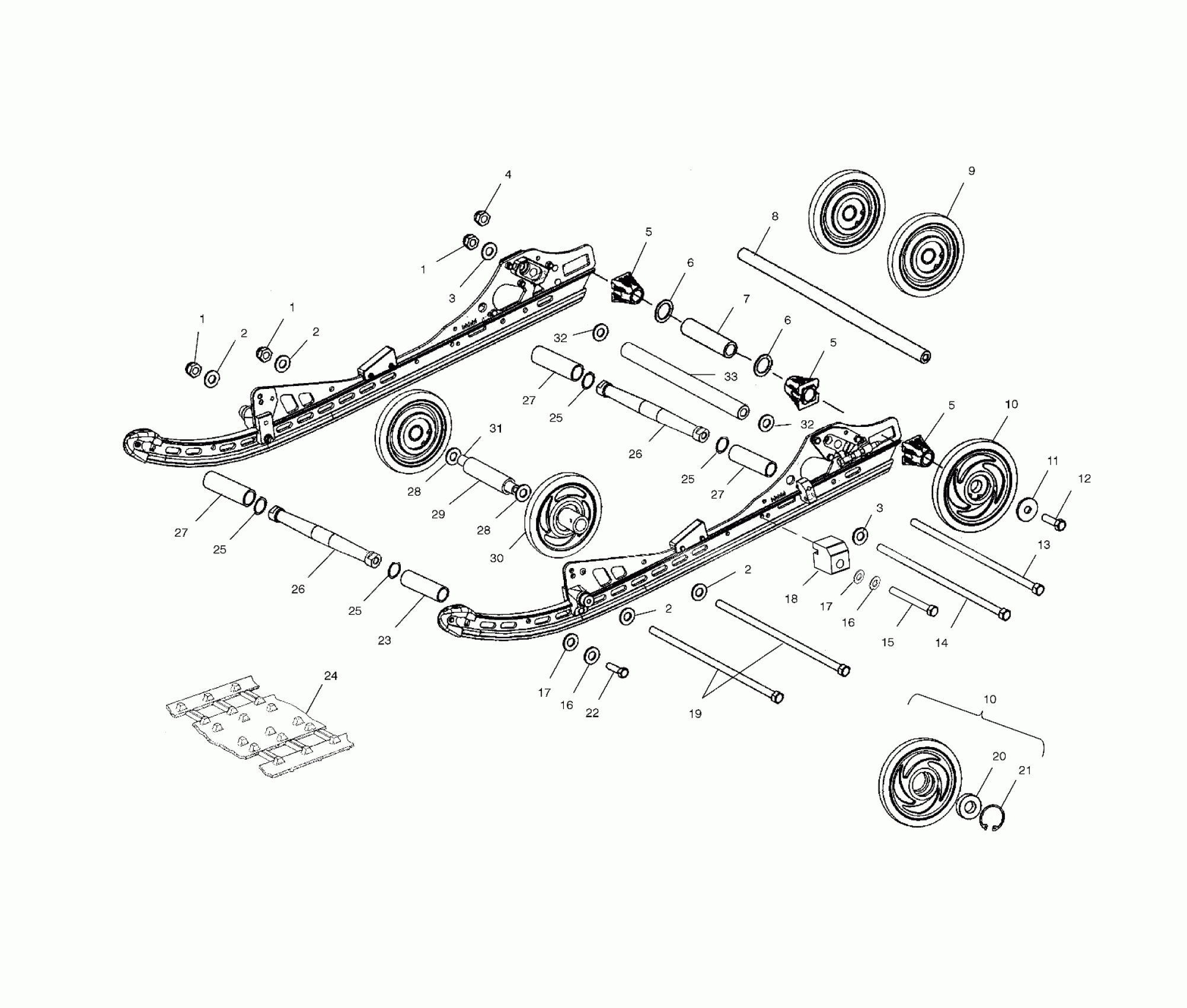

Polaris 800 XC SP M-10 F/O - S02NE8CS REAR SUSPENSION (M-10) - S02NE8CS (4973467346B13) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Washer, Flat

7555797

$3.99

2

Washer, Flat

7555797

$3.99

2

Washer, Flat

7555797

$3.99

2

Washer, Flat

7555797

$3.99

3

Washer, Flat

7555806

$1.49

3

Washer, Flat

7555806

$1.49

4

Nut, Nylok

7547064

Unavailable

5

SPACER-IDLER

5432535

$11.99

5

SPACER-IDLER

5432535

$11.99

5

SPACER-IDLER

5432535

$11.99

6

BUSHING

7555918

$1.59

6

BUSHING

7555918

$1.59

7

SPACER-IDLER, CENTER

5333283

$19.99

8

SHAFT, IDLER

5020744

$59.99

9

Asm., Idler Wheel

1590307

$48.56

10

Asm., Idler Wheel, Scrolled, Blue

1590305-312

Unavailable

10

Asm., Idler Wheel, Scrolled, Red

1590305-293

$48.56

10

Asm., Idler Wheel, Scrolled, Blue

1590305-312

Unavailable

10

Asm., Idler Wheel, Scrolled, Red

1590305-293

$48.56

11

WASHER, BELLE

7556130

$6.39

12

BOLT

7517731

$1.49

13

Screw

7517896

Unavailable

14

Screw

7517821

Unavailable

15

Screw

7517856

Unavailable

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

17

WASHER

7556042

Unavailable

17

WASHER

7556042

Unavailable

18

Block, Shock Pivot Adjust

5132583

$16.39

19

Screw

7517353

Unavailable

20

Bearing

3514012

Unavailable

21

RING-RETAINING

7710444

$8.79

22

Screw

7517857

$5.59

23

Attachment, Lower [Limiter, Strap]

5132586

Unavailable

24

Track

5411994

Unavailable

25

O-RING

5411965

$3.63

25

O-RING

5411965

$3.63

25

O-RING

5411965

$3.63

25

O-RING

5411965

$3.63

26

Shaft, Tapered

5132793

$89.03

26

Shaft, Tapered

5132793

$89.03

27

Spacer, Shock Centering, M-10

5333902

$34.99

27

Spacer, Shock Centering, M-10

5333902

$34.99

27

Spacer, Shock Centering, M-10

5333902

$34.99

28

Bushing

7556301

$3.19

28

Bushing

7556301

$3.19

29

Spacer, Bogie, Inner

5330394

Unavailable

30

Asm., Wheel [Blue]

1541530-312

Unavailable

30

Asm., Wheel [Red]

1541530-293

Unavailable

31

Shaft

5132490

Unavailable

32

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

32

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

33

Tube

5333477-067

$15.67
