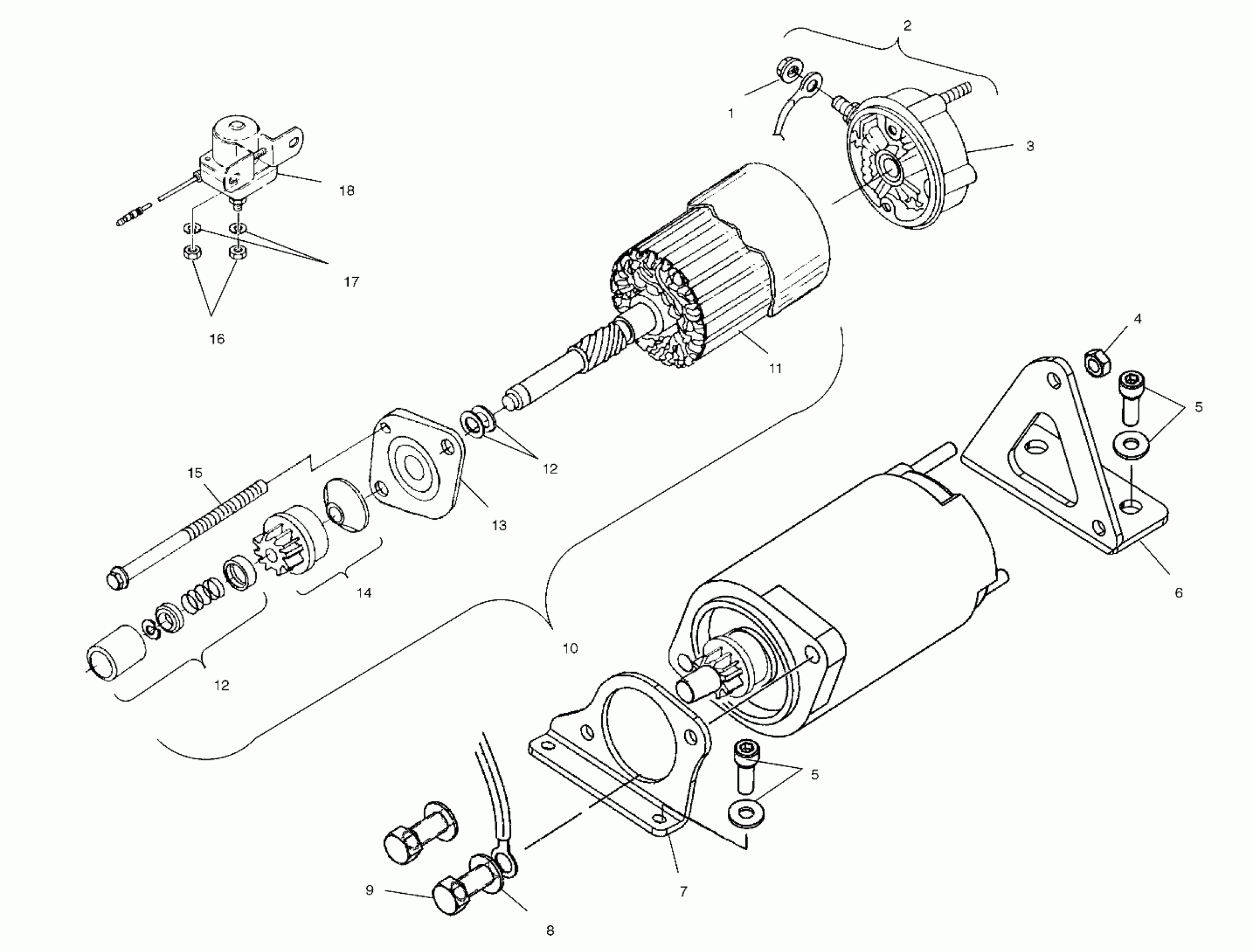

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS STARTING MOTOR - S02NE8CS/S02NP8CS/CSA/CSB (4973467346D12) Diagram

#

Description
Price

1

Nut

7542103

$5.59

2

Kit, Commutator Cap [Incl. 3]

2200758

$82.39

3

Kit, Brush & Spring

2200759

$59.99

3

ASM., BRUSH & SCREW

-------

Unavailable

3

ASM., BRUSH

-------

Unavailable

3

BUSHING, INSULATION

-------

Unavailable

3

WASERH, INSULATION

-------

Unavailable

3

Nut

-------

Unavailable

4

Nut

7542153

$1.59

5

Screw

7517957

Unavailable

5

Screw

7517957

Unavailable

6

Bracket, Starter, Rear

5245780

Unavailable

7

Bracket, Starter, Front

5245781

Unavailable

8

Washer, Spring Lock

7552603

$1.49

9

Screw

7512492

$1.49

10

Motor, Starter, Domestic

4170006

Unavailable

11

Kit, Armature

2200756

$169.99

12

Kit, Drive Hardware

2200755

Unavailable

12

WASHER, CURVED SPRING

-------

Unavailable

12

Washer, Thrust

-------

Unavailable

12

SPACER

-------

Unavailable

12

SPRING, ANTIDRIFT

-------

Unavailable

12

PINION, STOP

-------

Unavailable

12

RING, LOCK

-------

Unavailable

12

COVER, DUST

-------

Unavailable

12

Kit, Drive Hardware

2200755

Unavailable

12

WASHER, CURVED SPRING

-------

Unavailable

12

Washer, Thrust

-------

Unavailable

12

SPACER

-------

Unavailable

12

SPRING, ANTIDRIFT

-------

Unavailable

12

PINION, STOP

-------

Unavailable

12

RING, LOCK

-------

Unavailable

12

COVER, DUST

-------

Unavailable

13

Kit, Drive Cap

2200757

$59.99

14

Kit, Drive

2200754

Unavailable

14

PLATE, DRIVEN

-------

Unavailable

14

PINION

-------

Unavailable

15

Kit, Screw

2200753

$29.99

15

BOLT, THRU

-------

Unavailable

16

Nut

3082939

Unavailable

17

Washer, Spring

3080077

$2.39

18

Switch, Magnetic [Incl. 16,17]

3083211

Unavailable
