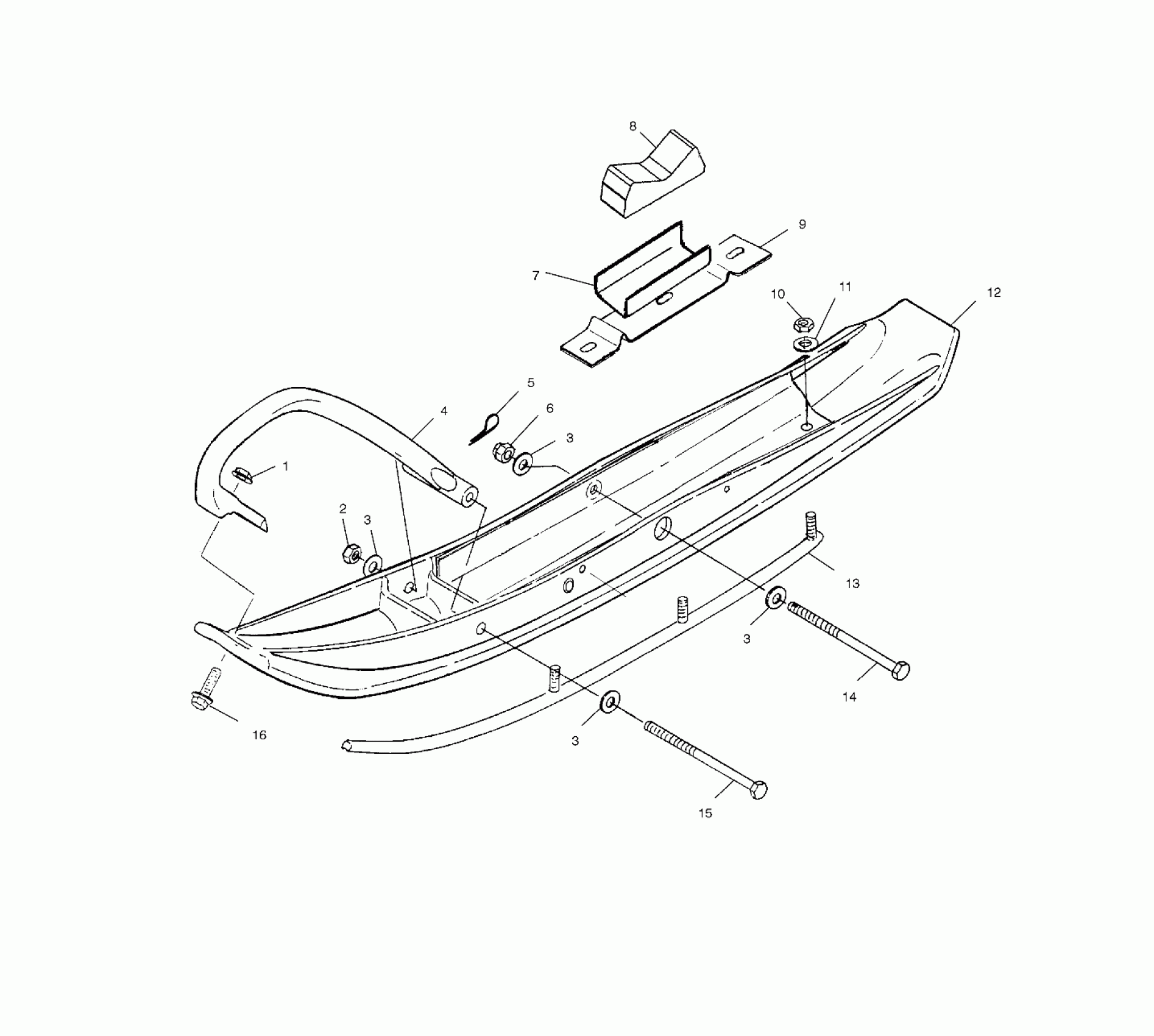

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS SKI (EDGE) - S02NP8CS/CSA/CSB (4973467346B01) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Nut, Nylok

7542439

$1.49

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

Toe, Ski, Black

5434165-070

$40.46

4

Toe, Ski, Yellow

5434165-216

$40.46

5

Pin, Cotter

7661209

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Retainer, Ski, Rubber

5243824

$27.99

8

Stop, Rubber (If built before 9/28/01)

5411094

Unavailable

8

Stop, Rubber (If built after 9/28/01)

5412018

$24.27

9

Support, Ski, Rubber

5241912-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

Ski, Black

1820821-070

Unavailable

12

Ski, Black/Aluminum

1820821-1123

Unavailable

13

Kit, Skag, 3", 90 Degree [Pair]

2872566

$55.99

14

Screw

7512596

$19.99

15

Bolt

7515514

$7.19

16

Screw

7515307

$3.99
