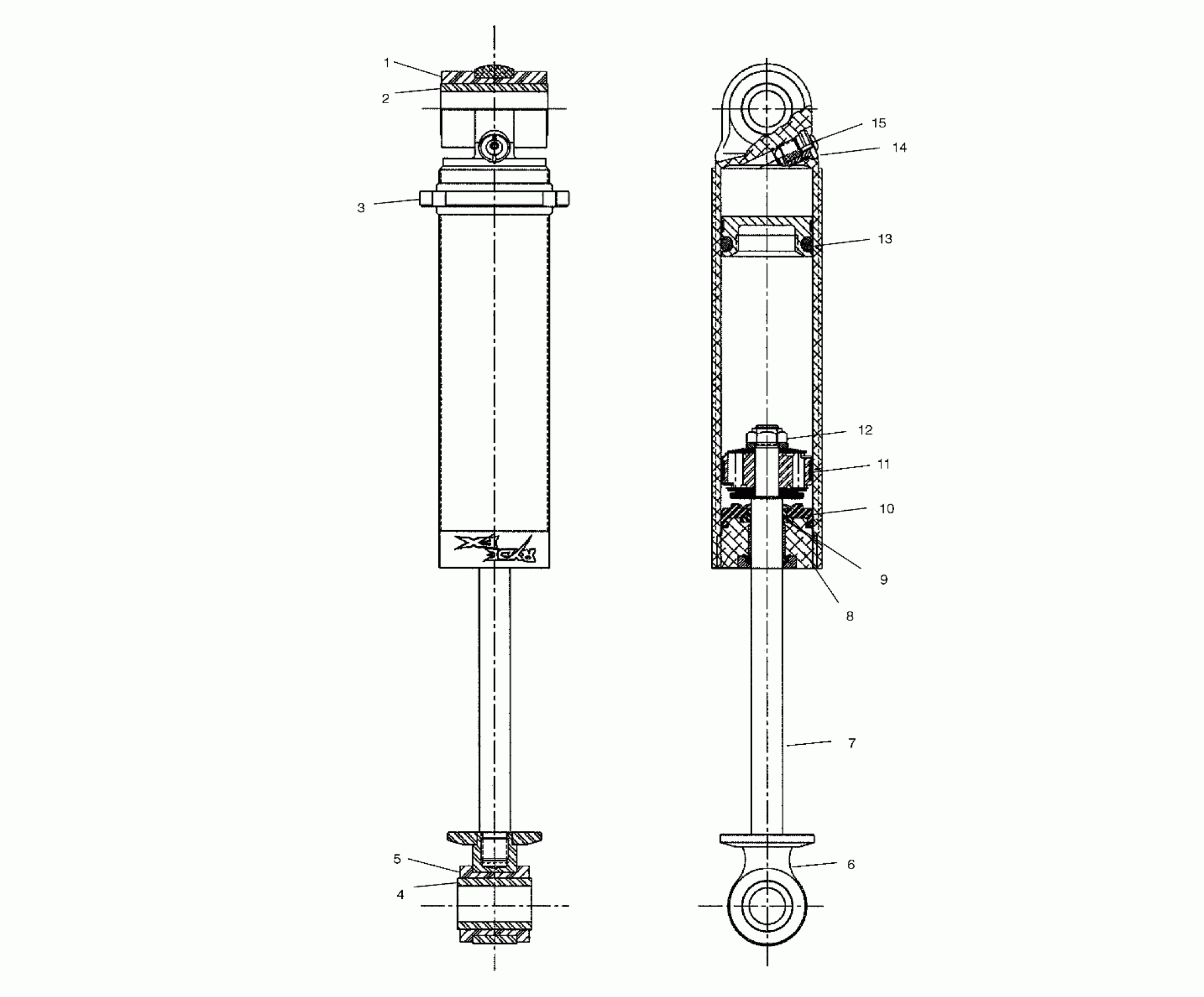

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS SHOCK (FRONT TRACK)(EDGE) - S02NP8CS/CSA/CSB (4973467346C02) Diagram

#

Description
Price

-

Shock, Front Track

7041975

Unavailable

1

Bushing

1700074

Unavailable

2

Sleeve

1700071

$15.99

3

Nut, Spring Retainer

1700033

$23.81

4

Sleeve

1700069

$15.99

5

Bushing

1700075

$11.99

6

Mount, Upper

1700010

Unavailable

7

Shaft

1700026

Unavailable

8

Asm, Cylinder Head

1700007

$106.49

9

Seal, Rod

1700021

Unavailable

10

Seal, Cap

1700022

Unavailable

11

Washer, Back-Up

1700078

$9.59

11

Band, Wear

1700031

$28.32

11

Washer, Top-Out

1700077

$10.39

11

Piston, Banded

1700103

Unavailable

12

Nut

1700057

$9.59

13

IFP

1700023

$45.59

13

Band, Wear

1700032

$24.99

13

O-Ring

1700048

$11.60

14

Asm., Pressure Valve

1700076

Unavailable

15

Screw, Valve

1700056

$6.94
