Description

Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

WASHER-CLUTCH RET,M14

5132441

$23.99

4

Spark Plug, RN57YCC, Champion

3070190

$3.99

5

Engine, S2102-8070PL8C NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for war

2202130

Unavailable

6

Conduit, Flex

5521398-13

Unavailable

7

Washer, Nylon

7555944

$3.99

8

E-Ring

7710427

Unavailable

9

Handle, Recoil

5431499-070

$15.48

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

Washer, Flat

7555893

$1.49

12

Strap, Engine Mount, LH

5245462

$39.99

12

Strap, Engine Mount, RH

5245475

$41.59

12

Strap, Engine Mount, LH

5245462

$39.99

12

Strap, Engine Mount, RH

5245475

$41.59

13

Mount, Engine

3021290

Unavailable

14

Screw

7512539

$3.99

15

Washer, Spring Lock

7553101

$3.99

16

NUT, FLANGED

7547180

$2.39

17

Mount, Engine

3021220

Unavailable

18

Bracket, Engine Mount, RH

5245044

Unavailable

19

Washer, Flat

7555806

$1.49

19

Washer, Flat

7555806

$1.49

20

NUT, FLEXLOC

7547008

$6.39

20

NUT, FLEXLOC

7547008

$6.39

21

Bracket, Engine Mount, LH

1013397

$24.27

22

Screw

7517854

$5.59

23

Mount, Engine

3021206

$60.70

24

Cable, Throttle

7080897

$64.75

25

TUBING, CONVOLUTED

8360052-25

Unavailable

25

TUBING, CONVOLUTED

8360052-25

Unavailable

26

Line, Fuel

8450040-600

Unavailable

27

Pump, Fuel

2520260

Unavailable

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

Tubing, Convoluted

8360058-40

Unavailable

31

Line, Fuel

8450003-1525

Unavailable

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

33

Valve, Fuel Shut-Off

7052268

Unavailable

34

Line, Fuel

8350017-600

Unavailable

34

Line, Fuel

8350017-600

Unavailable

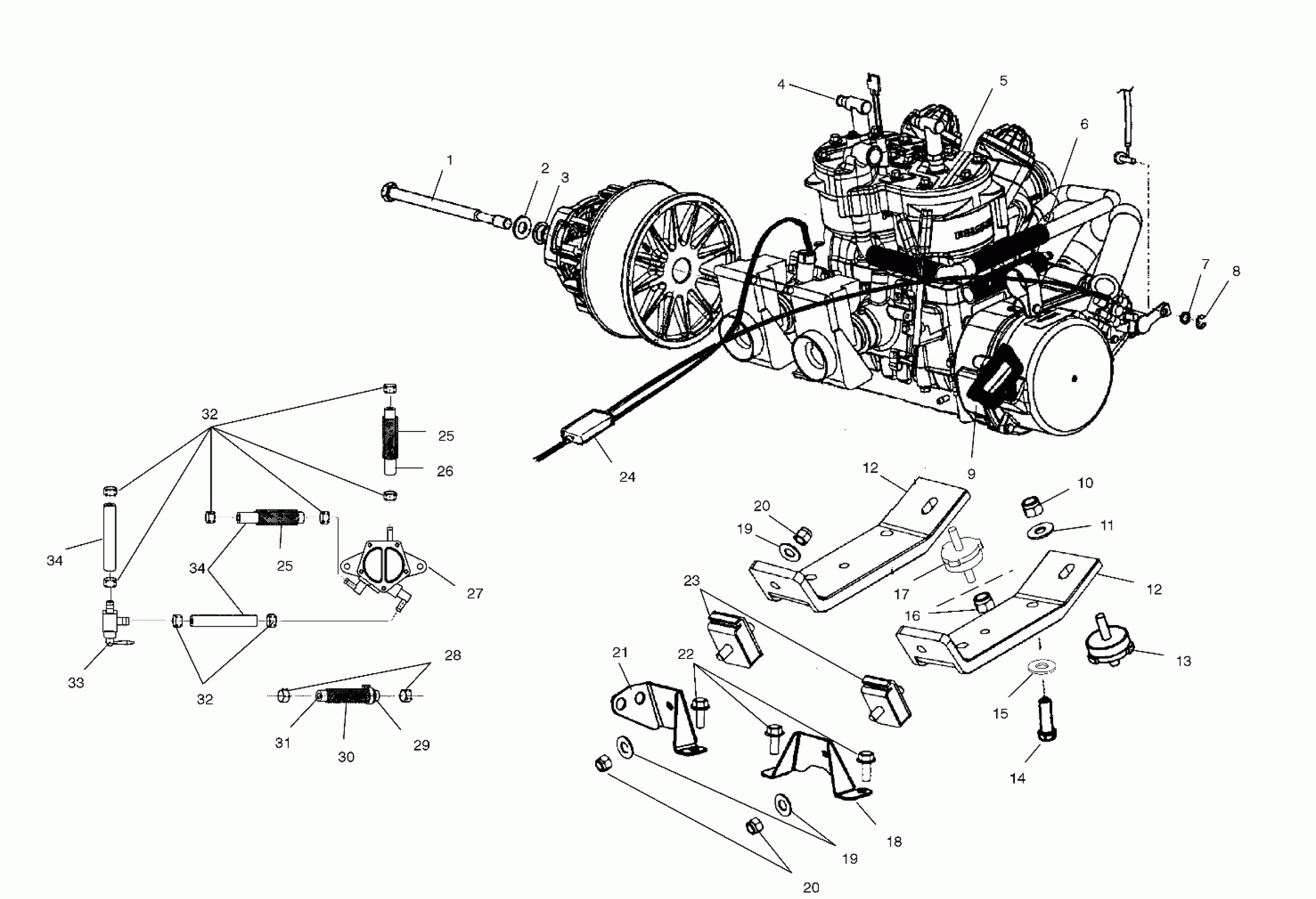

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS ENGINE MOUNTING - S02NE8CS/S02NP8CS/CSA/CSB (4973467346D03) Diagram

Screw

WASHER

WASHER-CLUTCH RET,M14

Spark Plug, RN57YCC, Champion

Engine, S2102-8070PL8C NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for war

Conduit, Flex

Washer, Nylon

E-Ring

Handle, Recoil

NUT-HEX-3/8-16 A ZTB NYL

Washer, Flat

Strap, Engine Mount, LH

Strap, Engine Mount, RH

Strap, Engine Mount, LH

Strap, Engine Mount, RH

Mount, Engine

Screw

Washer, Spring Lock

NUT, FLANGED

Mount, Engine

Bracket, Engine Mount, RH

Washer, Flat

Washer, Flat

NUT, FLEXLOC

NUT, FLEXLOC

Bracket, Engine Mount, LH

Screw

Mount, Engine

Cable, Throttle

TUBING, CONVOLUTED

TUBING, CONVOLUTED

Line, Fuel

Pump, Fuel

CLAMP-HOSE, (LARGE GREEN)

CABLE-TIE,DIA12-50MM,WTHR-RES.

Tubing, Convoluted

Line, Fuel

HOSE CLAMP, RED

HOSE CLAMP, RED

Valve, Fuel Shut-Off

Line, Fuel

Line, Fuel
