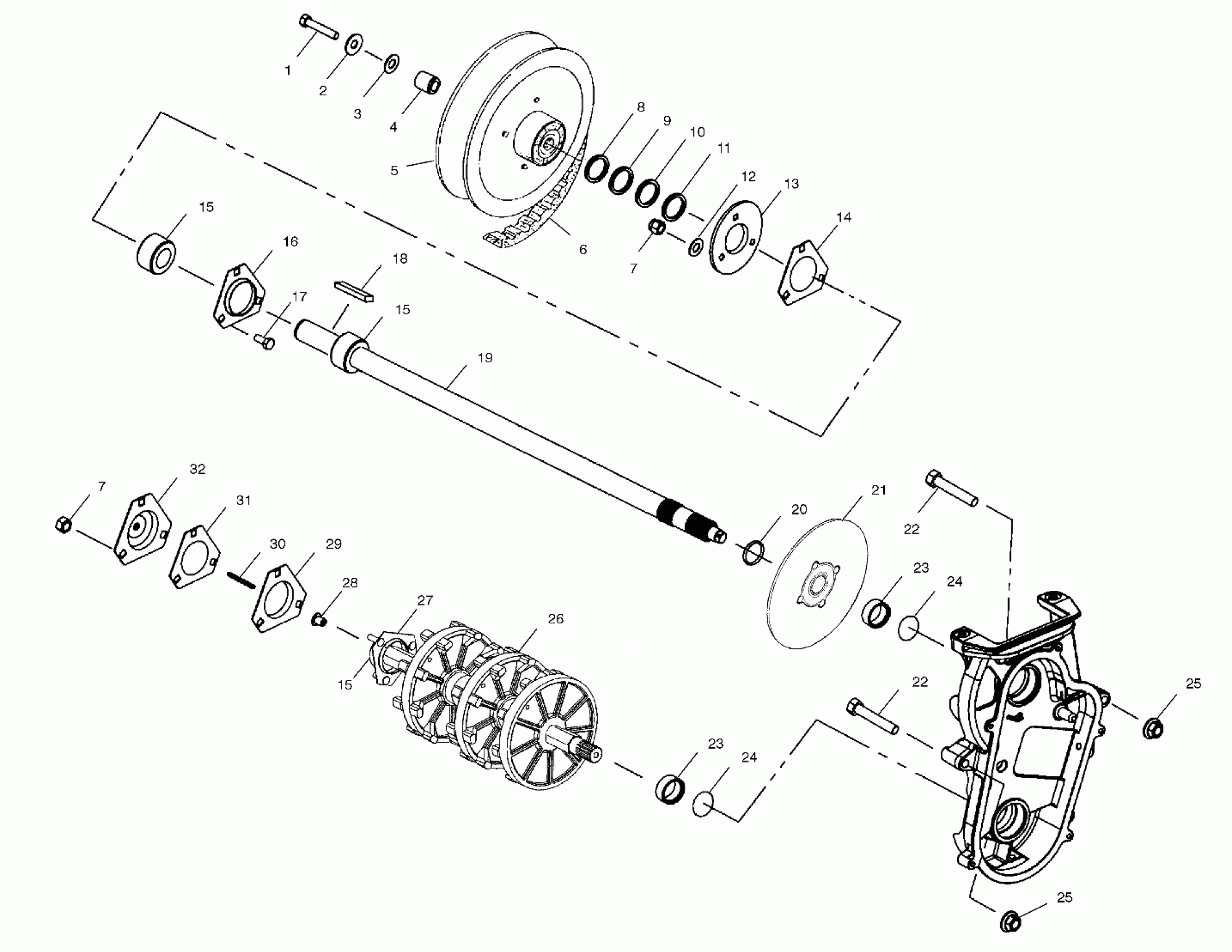

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS DRIVE TRAIN - S02NE8CS/S02NP8CS/CSA/CSB (4973467346D01) Diagram

#

Description
Price

1

Screw [Electric Start]

7515369

$4.79

1

Screw [Manual Start]

7517820

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft [Manual Start]

5020291

Unavailable

4

Spacer, Input Shaft [Electric Start]

5020913

Unavailable

5

ASM., DRIVEN CLUTCH, R11 [See Driven Clutch Pg. C11, Ref. 9]

-------

Unavailable

6

Belt, Drive

3211080

$139.99

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Spacer [Electric Start]

5020837

$24.99

9

WASHER

7555917

$2.39

10

WASHER

7555864

Unavailable

11

Bushing

7556509

Unavailable

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

Flangette w/Grease Fitting

5241359

$32.37

14

Gasket, Jackshaft

5811095

$2.41

15

BEARING

3514525

$31.99

15

BEARING

3514525

$31.99

15

BEARING

3514525

$31.99

16

FLANGETTE

5222751

$16.44

17

Bolt, Carriage

7512377

$4.79

18

Key

7721128

$10.39

19

Asm., Jackshaft [Incl. 20]

1332220

$158.73

20

RING, RETAINING

7710422

$3.99

21

Disc, Brake

1910403

Unavailable

22

Bolt, Carriage

7515428

$4.79

22

Bolt, Carriage

7515428

$4.79

23

SLEEVE, SEAL

5020588

$23.99

23

SLEEVE, SEAL

5020588

$23.99

24

O-RING

5410613

$1.99

24

O-RING

5410613

$1.99

25

Nut

7542423

$3.99

25

Nut

7542423

$3.99

26

Asm., Drive Shaft [Incl. 27,28]

1590314

Unavailable

27

ASM., FLANGETTE W/SCREWS

1012945

$114.99

28

Bushing, Speedometer, Metal

3280019

$11.99

29

Flangette

5243529

$13.75

30

Key, Speedometer, Square

3280017

$13.75

31

Gasket, Drive Adaptor

5830012

$2.41

32

Adaptor w/Zerk, Drive

3280116

$101.17
