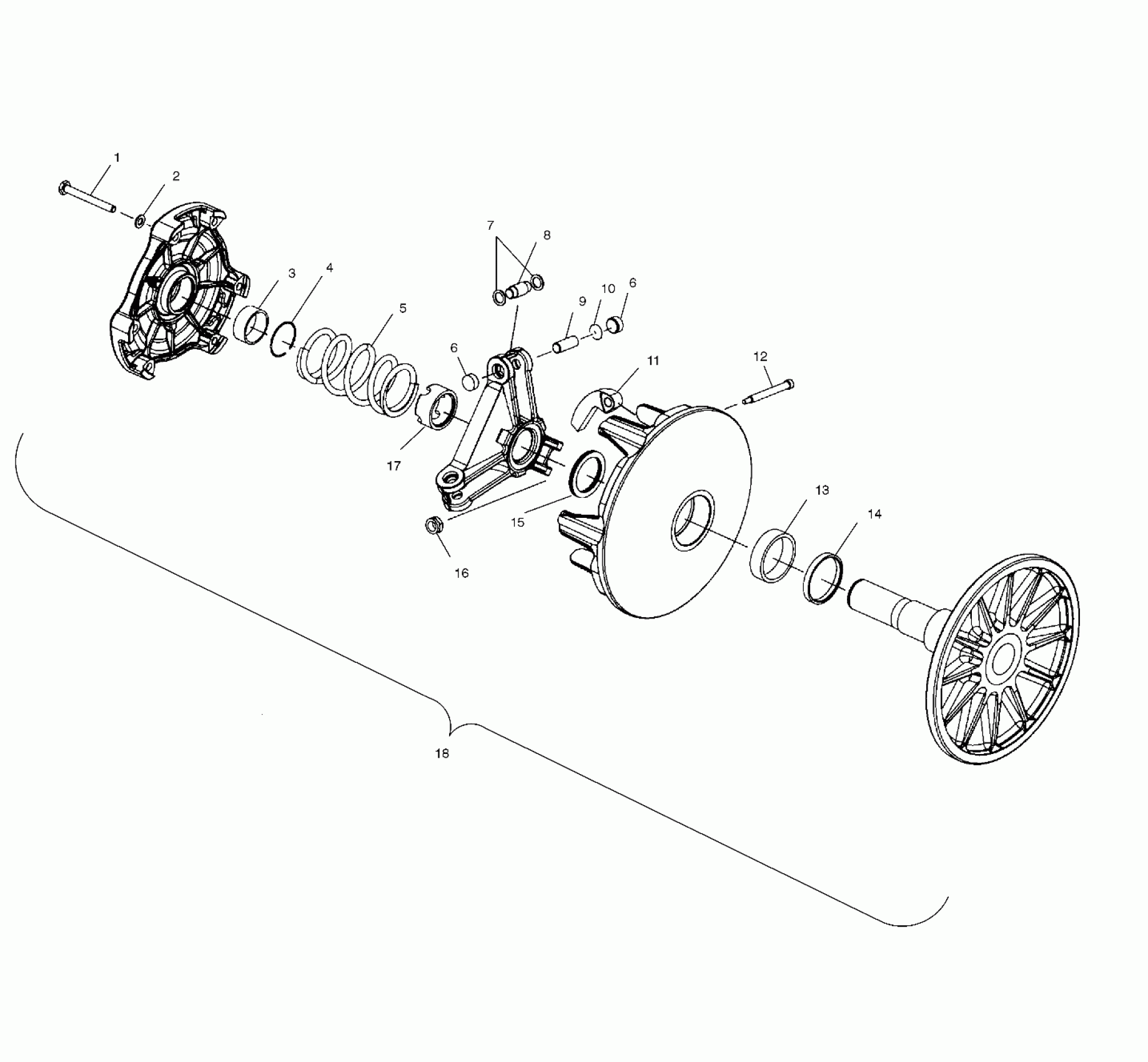

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS DRIVE CLUTCH (MANUAL START MODELS) - S02NE8CS/S02NP8CS/CSA/CSB (4973467346C09) Diagram

#

Description
Price

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING COVER GARMAX

3514347

$36.41

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

Button, Guide

5434188

$12.79

6

Button, Guide

5434188

$12.79

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

Pin, Roller

5133054

Unavailable

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

ASM-WEIGHT/BUSHING (10-66)

1321584

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Spacer [.050mm]

5210754

Unavailable

15

Spacer [.025mm]

5242981

Unavailable

15

Spacer [.020mm]

5210752

Unavailable

15

Spacer [.032mm]

5210753

Unavailable

16

NUT, FLEXLOC

7541906

$3.19

17

NUT-JAM

5020425

$23.99

18

Asm., Drive Clutch, Basic, 108 [Incl. All Less 5,11]

1321880

Unavailable
