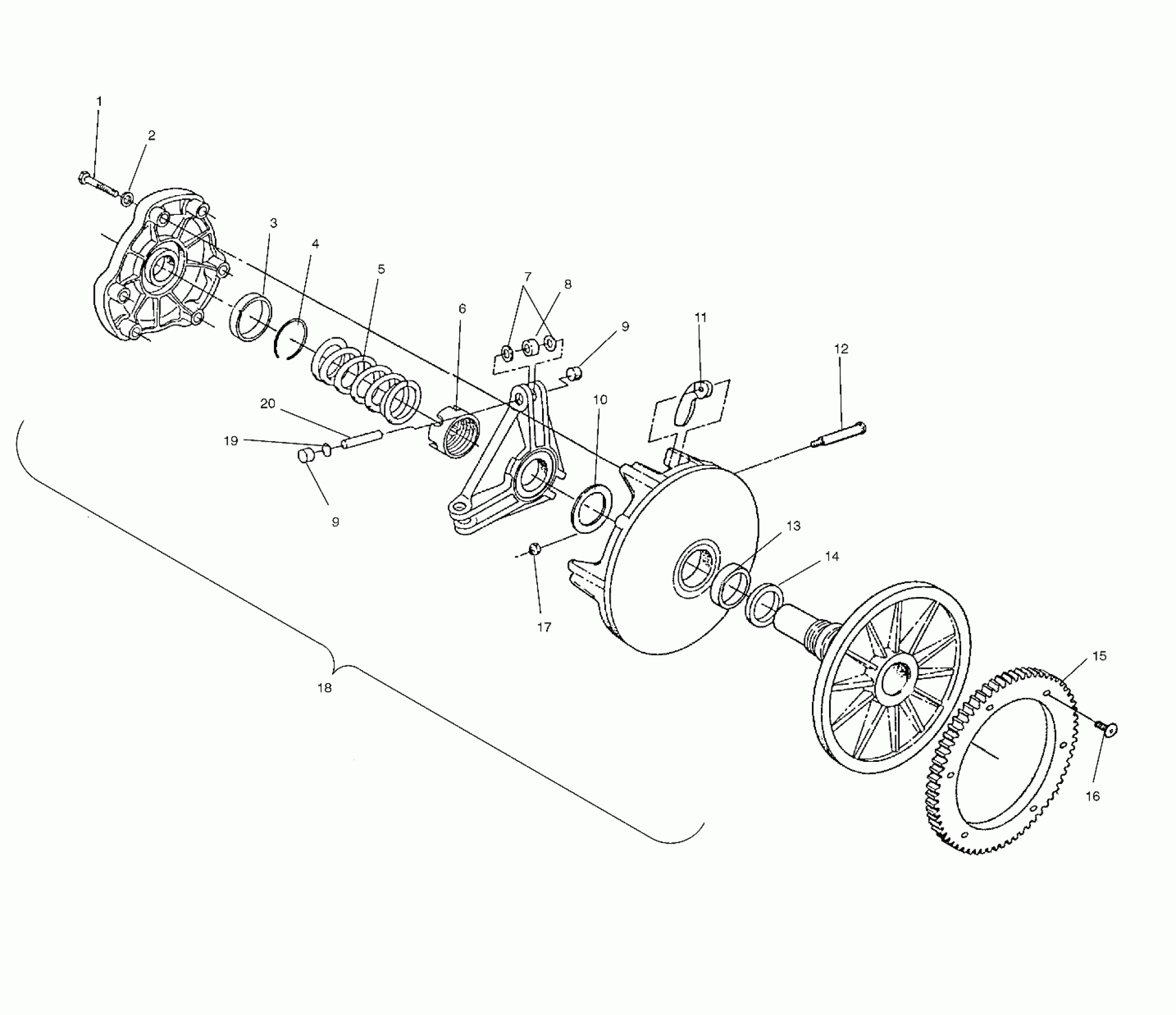

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS DRIVE CLUTCH (ELECTRIC START MODELS) - S02NE8CS/S02NP8CS/CSA/CSB (4973467346C10) Diagram

#

Description
Price

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING COVER GARMAX

3514347

$36.41

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE

5430445

$6.39

9

BUTTON, GUIDE

5430445

$6.39

10

Spacer [.050"]

5210754

Unavailable

10

Spacer [.025"]

5242981

Unavailable

10

Spacer [.020"]

5210752

Unavailable

10

Spacer [.032"]

5210753

Unavailable

11

ASM-WEIGHT/BUSHING (10-66)

1321584

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Gear, Ring

5131062

Unavailable

16

SCREW

7515351

$3.99

17

NUT, FLEXLOC

7541906

$3.19

18

Asm., Drive Clutch ES Basic [Incl. All Less 5,11]

1322022

Unavailable

19

Kit - Shim, Drive Clutch

2200387

$24.27

20

Pin, Roller

5133054

Unavailable
