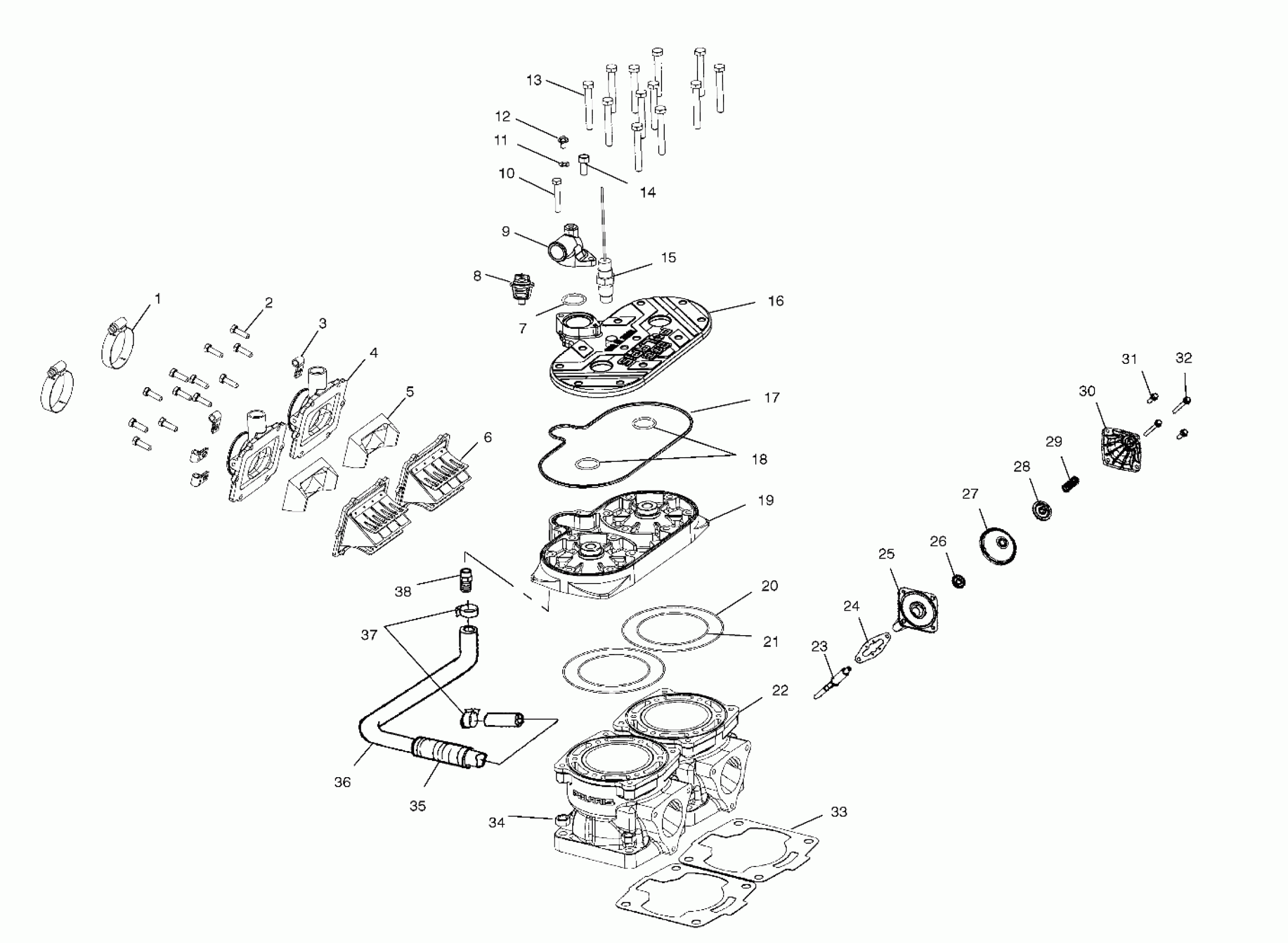

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS CYLINDER - S02NE8CS/S02NP8CS/CSA/CSB (4973467346D05) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7517398

$3.19

3

CLAMP, HOSE

7080683

$2.39

4

Adapter, Carb

1253327

$104.99

5

Stuffer, Reed Block

5433151

Unavailable

6

Asm., Reed Valve

1201825

$134.99

7

O-Ring

5411521

$24.19

8

Thermostat

7052258

$48.56

9

Cover, Thermostat

5630992

Unavailable

10

SCREW

7516818

$5.59

11

WASHER, FLAT

7555998

$1.49

12

SCREW, BLEED

7517679

$13.59

13

SCREW

7517534

$4.79

14

SCREW

7516822

$2.39

15

Sensor, Temperature

4010398

$36.41

16

Cover, Head

5631202-366

Unavailable

17

Seal

5411294

Unavailable

18

O-Ring

5410917

$1.49

19

Head, Cylinder

3021294

Unavailable

20

O-Ring

5410931

Unavailable

21

O-Ring

5411675

$29.03

22

Cylinder

3021329

Unavailable

23

Valve, Guillotine

1202112

$179.99

24

Gasket

5812350

$6.46

25

Asm., Base

1202216

Unavailable

26

Washer

5132950

Unavailable

27

Bellows, Exhaust Valve

5412147

$44.51

28

Cap

5631152

Unavailable

29

Spring

7041786-07

$29.99

30

Housing, Bellows

5434175

Unavailable

31

SCREW

7516820

$5.59

32

SCREW

7517932

$3.99

33

Gasket, Cylinder Base

5811784

$8.89

34

NUT

7547013

$1.99

35

Conduit

5521398-96

Unavailable

36

Hose, Bypass

5411536

Unavailable

37

Clamp

7081030

$6.39

38

FITTING

7052222

$23.99
