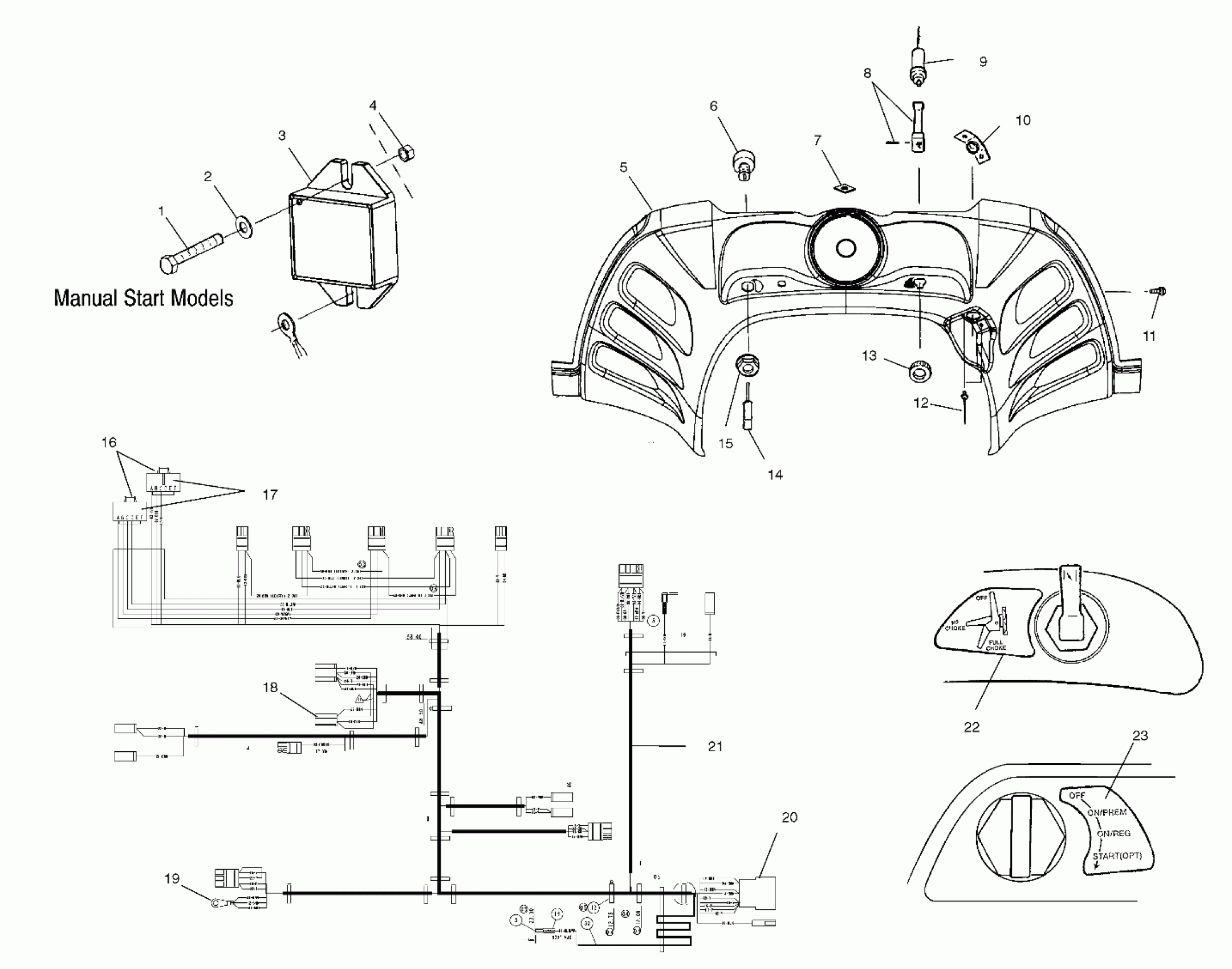

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS CONSOLE - S02NE8CS/S02NP8CS/CSA/CSB (4973467346A12) Diagram

Screw

7512031

$2.23

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

Regulator, 14.3v

4010301

Unavailable

Nut, Nylok

7541925

$1.49

Console

5433724-070

Unavailable

Kit, Ignition Switch

2201614

$89.03

Clip, Xmas Tree

7670101

$2.39

Lever, Choke [Incl. Pin]

5432943

Unavailable

Cable, Choke [Incl. 8,13]

7080946

$89.03

GUIDE, RECOIL

5243049

$9.70

Screw

7515199

$1.49

RIVET

7621330

$1.49

Nut, Choke

5432944

$8.79

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

Nut, Ignition

7547035

$8.79

Housing, Connector

4010193

$8.79

Socket

4010192

Unavailable

HOUSING

4020063

$3.19

Terminal, Ring

4020092

Unavailable

Housing

4020057

$3.51

Harness, Main Wire, TPS

2460792

Unavailable

DECAL, CHOKE

7170054

$24.27

Decal, Ignition, Console

7078605

Unavailable
