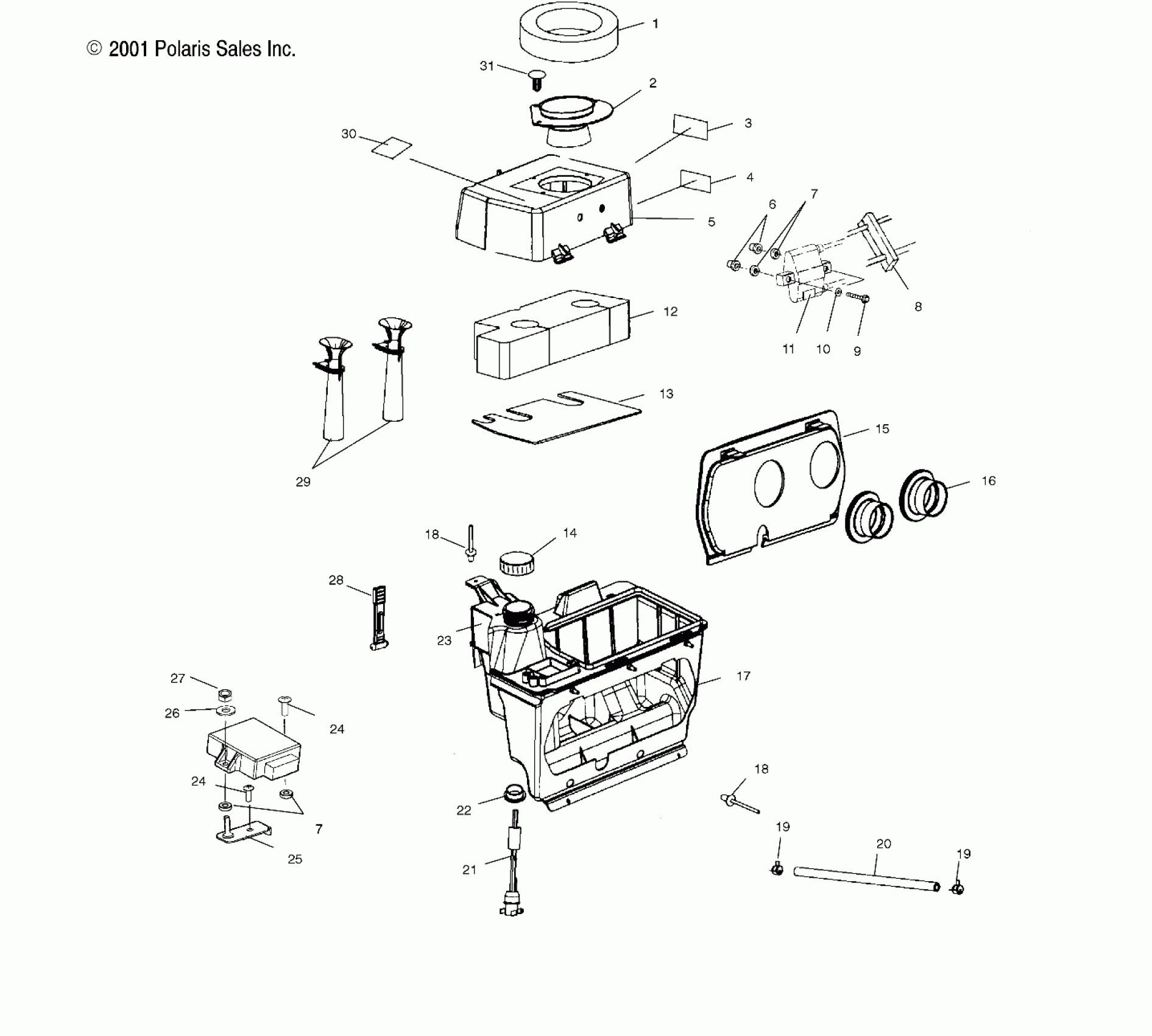

Polaris 800 XC SP F/O BUILT AFTER 3/1/01 - S02NP8CS AIR BOX - S02NE8CS/S02NP8CS/CSA/CSB (4973467346C12) Diagram

#

Description
Price

1

Foam, Air Box, Chimney

5811983

$20.22

2

Duct, Air Inlet

5433734

$20.75

3

Decal, Adjustable Driven Clutch

7073820

Unavailable

4

Decal, Greasing

7073426

$7.27

5

Asm., Silencer Cover [Incl. 2,3,4,30,31]

1253324

Unavailable

6

NUT

7547103

$8.79

7

Washer, Nylon

7555932

$2.39

7

Washer, Nylon

7555932

$2.39

8

Clip, Ignition Cable

7080471

$3.59

9

Screw

7517610

$1.59

10

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

11

Decal, Spark Plug Recommendation

7077026

$2.95

12

Foam, Air Box, Plate

5811979

Unavailable

13

Plate, Intake

5433665

Unavailable

14

Cap, Oil, Vented

1240094

$36.41

15

Plate, Carburetor Adaptor

5433690

Unavailable

16

Boot, Carburetor

5411676

Unavailable

17

Asm., Air Silencer

1253336

Unavailable

18

RIVET

7621472

$1.49

18

RIVET

7621472

$1.49

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

Line, Fuel

8450003-1525

Unavailable

21

Fitting, Oil Sender

4010224

Unavailable

22

Grommet, Oil Sender

7052305

$4.84

23

Decal, Oil, VES

7079003

Unavailable

24

Screw

7512098

$1.59

24

Screw

7512098

$1.59

25

Bracket, CDI

1013201

$30.32

26

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

27

Nut, Nylok

7541925

$1.49

28

STRAP-AIRBOX TOP

5433150

$24.27

29

Tube, Intake, Outer

5433662

Unavailable

30

Decal, Caution, Air Box

7075351

Unavailable

31

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49
