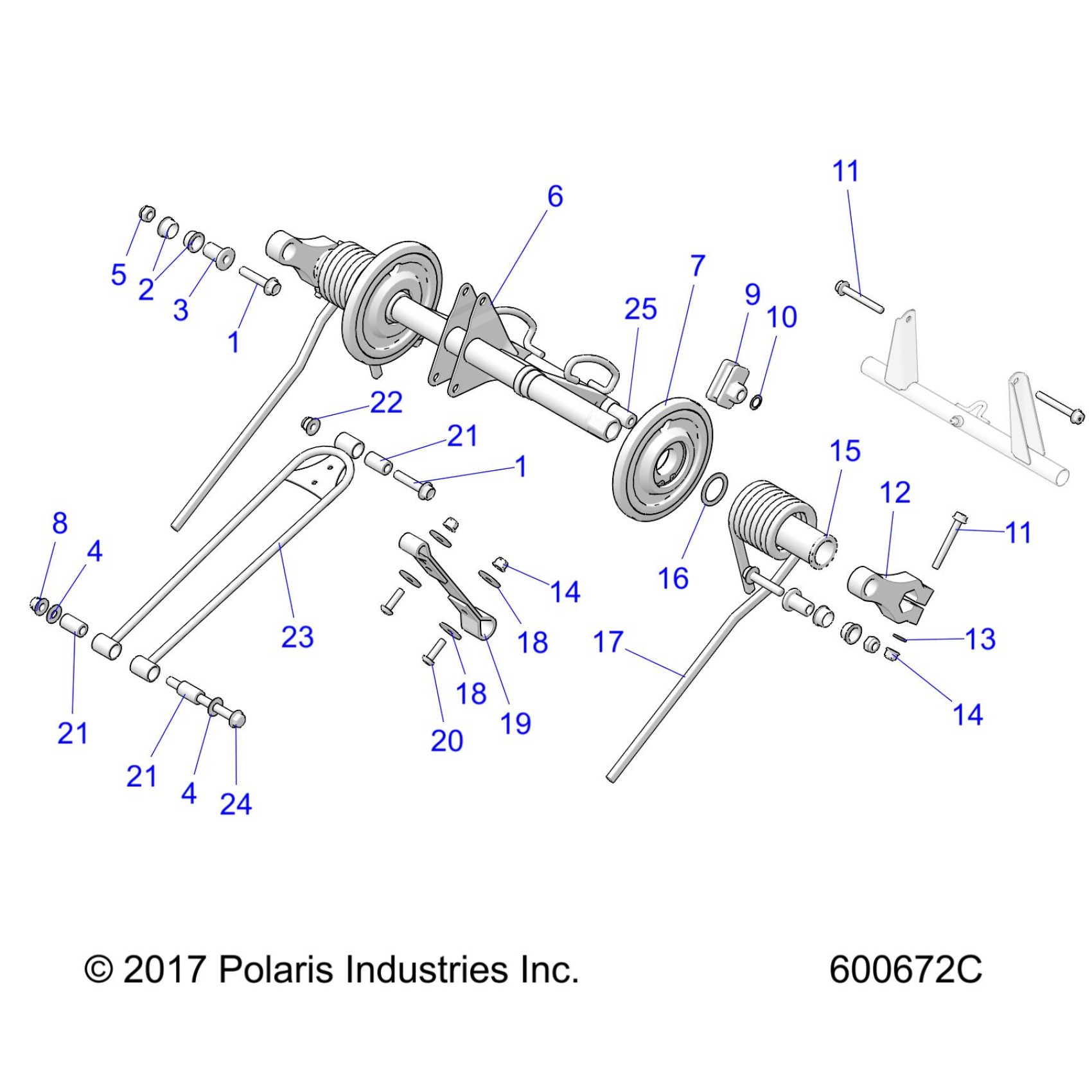

Polaris 800 TITAN SP/ADVENTURE/XC ALL OPTIONS (R04) - S19FJB8/FJE8/FJP8 SUSPENSION, TORQUE ARM, REAR - S19FJB8/FJE8/FJP8 ALL OPTIONS (600672) Diagram

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

BUSHING-CRANK

5438876

$7.99

SHAFT-RTA MOUNT

5141400

$13.75

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

ARM, TORQUE, REAR, BLACK

1543722-329

$259.99

ASM-WHEEL,PLAIN,6.38,6007

1590001

$72.84

BEARING [1 PER]

3514445

Unavailable

RING-RETAINING [1 PER]

7710486

Unavailable

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

CLIP-PUSH ON

7080394

$2.39

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

ASM-ARM 83.2 [INCL. BUSHING ITEM 2]

1543724

$48.56

WASHER-.344X.688X.063 FL-ZOD

7556524

$1.49

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SLEEVE-TORSION SPRING

5434989

$3.99

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

SPRING-TORS TRAP14.4/72 LH BLK

7044813-329

$133.56

SPRING-TORS TRAP14.4/72 RH BLK

7044814-329

$133.56

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

STRAP-LIMITER REAR

5416384

$24.27

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

BUSHING-M10X17.5X30

5137360

$3.99

BUSHING-M10X17.5X30

5137360

$3.99

BUSHING-M10X17.5X30

5137360

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

ROD, SHOCK, WT, BLACK

1543727-329

$44.51

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$13.59

SHAFT-RTA LOWER

5339570

$20.22
