DRIVE TRAIN, GEARCASE ASM 1 - S19FJB8/FJE8/FJP8 ALL OPTIONS (600608C)

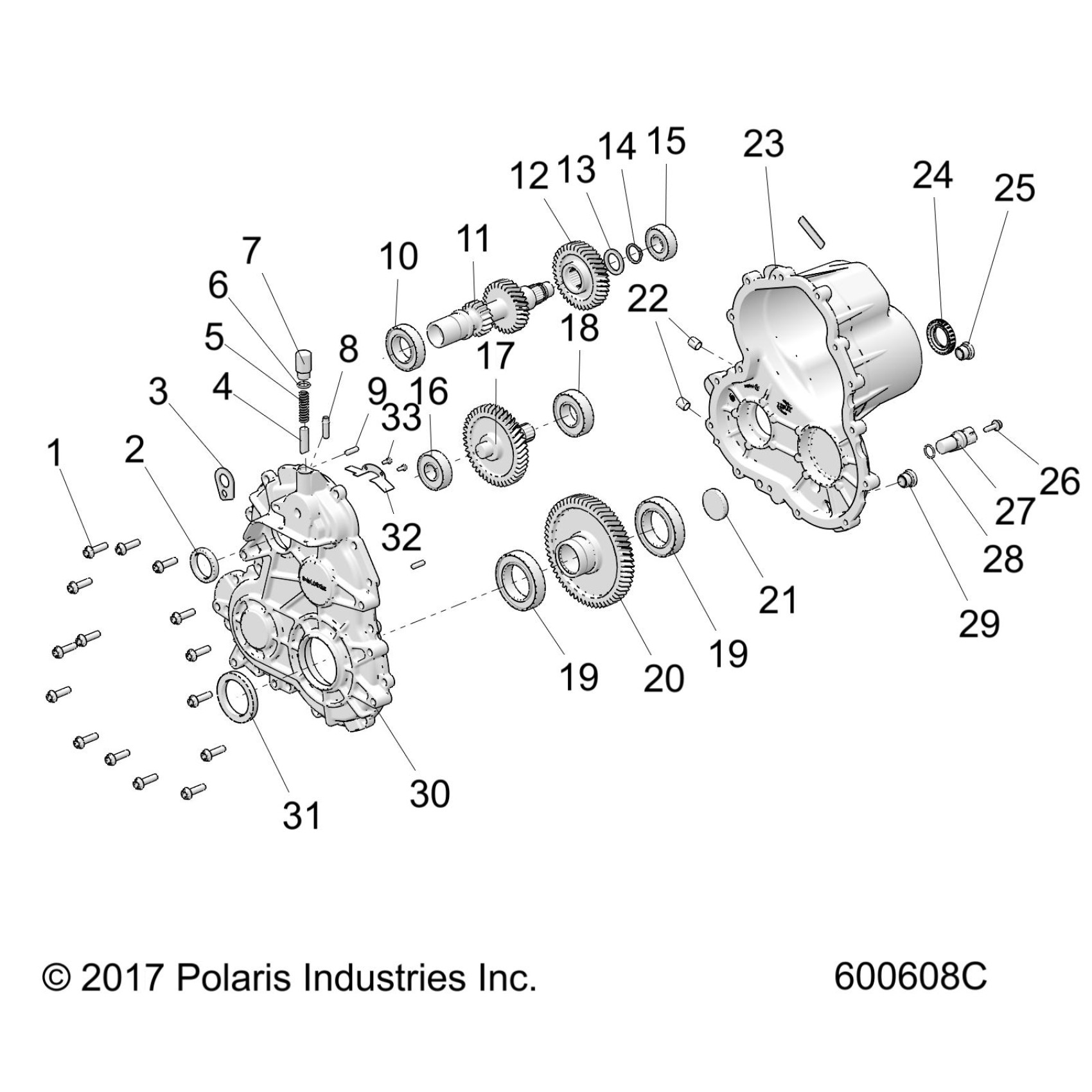

Polaris 800 TITAN SP/ADVENTURE/XC ALL OPTIONS (R04) - S19FJB8/FJE8/FJP8 DRIVE TRAIN, GEARCASE ASM 1 - S19FJB8/FJE8/FJP8 ALL OPTIONS (600608C) Diagram
#
Description
Price
-
ASM., GEARCASE [INCL. ALL]
1333608
Unavailable
1
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
$9.59
2
SEAL-35x47x8
3234307
$15.99
3
BRKT-LIFT HOOK
3236081
$29.99
4
BULLET DETENT
3234695
$31.99
5
SPRING-COMPRESSION (210560)
3236063
$24.99
6
O-RING .530ID x .082 WIDE
3234729
$13.75
7
PLUG, DETENT
3234715
$35.99
8
TUBE-ROLLOVER VENT (354953)
3236299
$44.99
8
FUEL LINE 1/4" SAE #30R7, 100CM [BULK SVC LENGTH]
8450040-100
$59.99
9
PIN, DOWEL 6 X 20
3234330
$7.19
10
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
$39.99
11
SHAFT-INPUT
3236066
$304.99
12
GEAR-37T
3236074
$159.99
13
WASHER, 24.3 X 35 X 2.75
3236058
$27.99
14
RING-RETAIN EXT24X1.75(130373)
3236060
$12.79
15
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
16
BEARING BALL,6304STD 20X52X15
3234651
$15.99
17
GEAR-BRAKE 43T
3236068
$274.99
18
BEARING-BALL 6206 C3 30X62X16
3233790
$27.99
19
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
19
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
20
GEAR-OUTPUT 59T
3236067
$274.99
21
PLUG, EXPANSION , 1.662 X .276
3236086
$36.41
22
PIN-DOWEL M10X14
7662309
$39.99
23
SUBASSY-RH CASE
3236078
$529.99
24
SEAL-TRIPLE
3235848
$31.99
25
PLUG, M18 X 1.5
3234755
$27.99
26
SCREW
3235206
$7.19
27
SENSOR-SPEED
3236083
$174.99
28
O-RING
3236082
$7.27
29
PLUG, M18 X 1.5 MAGNETIC
3234756
$31.99
30
SUBASSEMBLY-LH COVER
3236079
$639.99
31
SEAL-TRIPLE
3233878
$32.37
32
DEFLECTOR
3236304
$64.99
33
SOCKET-TRX PH M4X0.7X10(105523
3236301
$4.99
