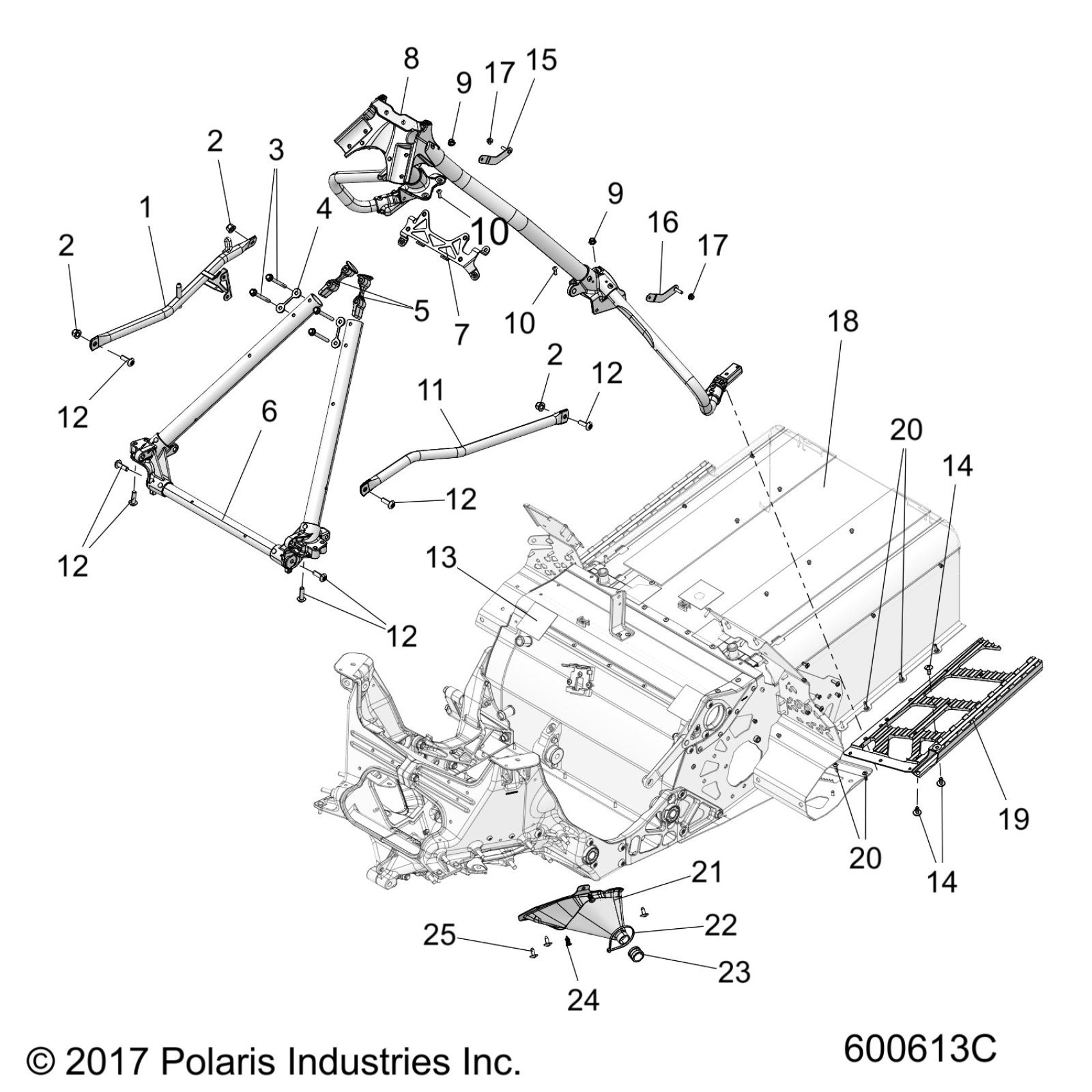

Polaris 800 TITAN SP/ADVENTURE/XC ALL OPTIONS (R04) - S19FJB8/FJE8/FJP8 CHASSIS, CHASSIS OVER STRUCTURE and RUNNING BOARDS - S19FJB8/FJE8/FJP8 ALL OPTIONS (600613C) Diagram

#

Description
Price

1

TUBE BRACE-RH BLK

1023553-067

$114.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

4

SHIM-TUBE CAST 31.76 DIA [BULK SVC]

5633083

Unavailable

5

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

6

ASM-FRAME TUBLR FRNT W/WNCH MT

1022777

$314.99

7

ASM-REGULATOR MOUNT

1024479

$36.41

8

ASM., FRAME, TUBULAR, REAR

1022252

$614.99

9

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

9

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

10

RIVET-3/16-.214-.420

7661130

$1.49

10

RIVET-3/16-.214-.420

7661130

$1.49

11

TUBE BRACE-LH BLK

5339545-067

$69.99

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

13

PAD-2.5"X2.5"

5814187

$4.03

14

SCR-TXTH-M6X1.0X15 8.8 P80 ZOD

7520147

$3.99

14

SCR-TXTH-M6X1.0X15 8.8 P80 ZOD

7520147

$3.99

15

ASM-STUD PLATE M5 RH

1023173

$24.99

16

ASM-STUD PLATE M5 LH

1023172

$24.99

17

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

17

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

18

ASM-CHASSIS 155 CONV LIME SQZE [INCL. BULKHEAD]

1024205-630

Unavailable

18

ASM-CHASSIS 155 CONV GBLK [INCL. BULKHEAD]

1024205-067

Unavailable

18

ASM-CHASSIS 155 CONV INDY RED [INCL. BULKHEAD]

1024205-293

Unavailable

18

ASM-TUNNEL CONV 155 INDY RED

1024207-293

Unavailable

18

ASM-CHASSIS 155 CONV IND SKYBL [INCL. BULKHEAD]

1024205-737

Unavailable

18

ASM-TUNNEL CONV 155 ORNG BURST

1024207-647

Unavailable

18

ASM-TUNNEL CONV 155 LIME SQZE

1024207-630

Unavailable

18

ASM-TUNNEL CONV 155 IND SKYBL

1024207-737

Unavailable

18

ASM-TUNNEL CONV 155 NAT

1024207-067

Unavailable

18

ASM-CHASSIS 155 CONV ORG BURST [INCL. BULKHEAD]

1024205-647

Unavailable

18

ASM-TUNNEL CONV 155 IND MTITNM [ADVENTURE]

1024207-705

Unavailable

18

ASM-CHASSIS 155 CONV IND MTITNM [INCL. BULKHEAD][ADVENTURE]

1024205-705

Unavailable

19

RUNNINGBOARD-RH MACH MTITANIUM [ADVENTURE]

5140484-705

$344.99

19

RUNNINGBOARD-RH MACH LIME SQZ [XC OPTION]

5140484-630

$344.99

19

RUNNINGBOARD-LH MACH MTITANIUM [ADVENTURE]

5140483-705

$344.99

19

RUNNINGBOARD-RH MACH GBLK [SP][XC OPTION]

5140484-067

$344.99

19

RUNNINGBOARD-RH MACH INDY RED [XC OPTION]

5140484-293

$344.99

19

RUNNINGBOARD-LH MACH INDSKYBLU [XC OPTION]

5140483-737

$344.99

19

RUNNINGBOARD-RH MACH ORNGBURST [XC OPTION]

5140484-647

$344.99

19

RUNNINGBOARD-LH MACH LIME SQZ [XC OPTION]

5140483-630

$344.99

19

RUNNINGBOARD-LH MACH GBLK [SP][XC OPTION]

5140483-067

$344.99

19

RUNNINGBOARD-LH MACH INDY RED [XC OPTION]

5140483-293

$344.99

19

RUNNINGBOARD-RH MACH INDSKYBLU [XC OPTION]

5140484-737

$344.99

19

RUNNINGBOARD-LH MACH ORNGBURST [XC OPTION]

5140483-647

$344.99

20

RIVET-3/16-.090-.290

7661637

Unavailable

20

RIVET-3/16-.090-.290

7661637

Unavailable

21

ASM-TIE ROD BOOT RH [INCL.22,23]

2635203

$36.41

21

ASM-TIE ROD BOOT LH [INCL.22,23]

2635202

$36.41

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

BUSHING-TIE ROD BOOT

5439309

$11.99

24

CLIP-XMAS TREE,.70X.187 DIA

7661953

$1.49

25

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$1.49
