- 800 TITAN SP/ADVENTURE/XC ALL OPTIONS (R04) - S19FJB8/FJE8/FJP8
CHASSIS, BULKHEAD ASM. - S19FJB8/FJE8/FJP8 ALL OPTIONS (600688C)

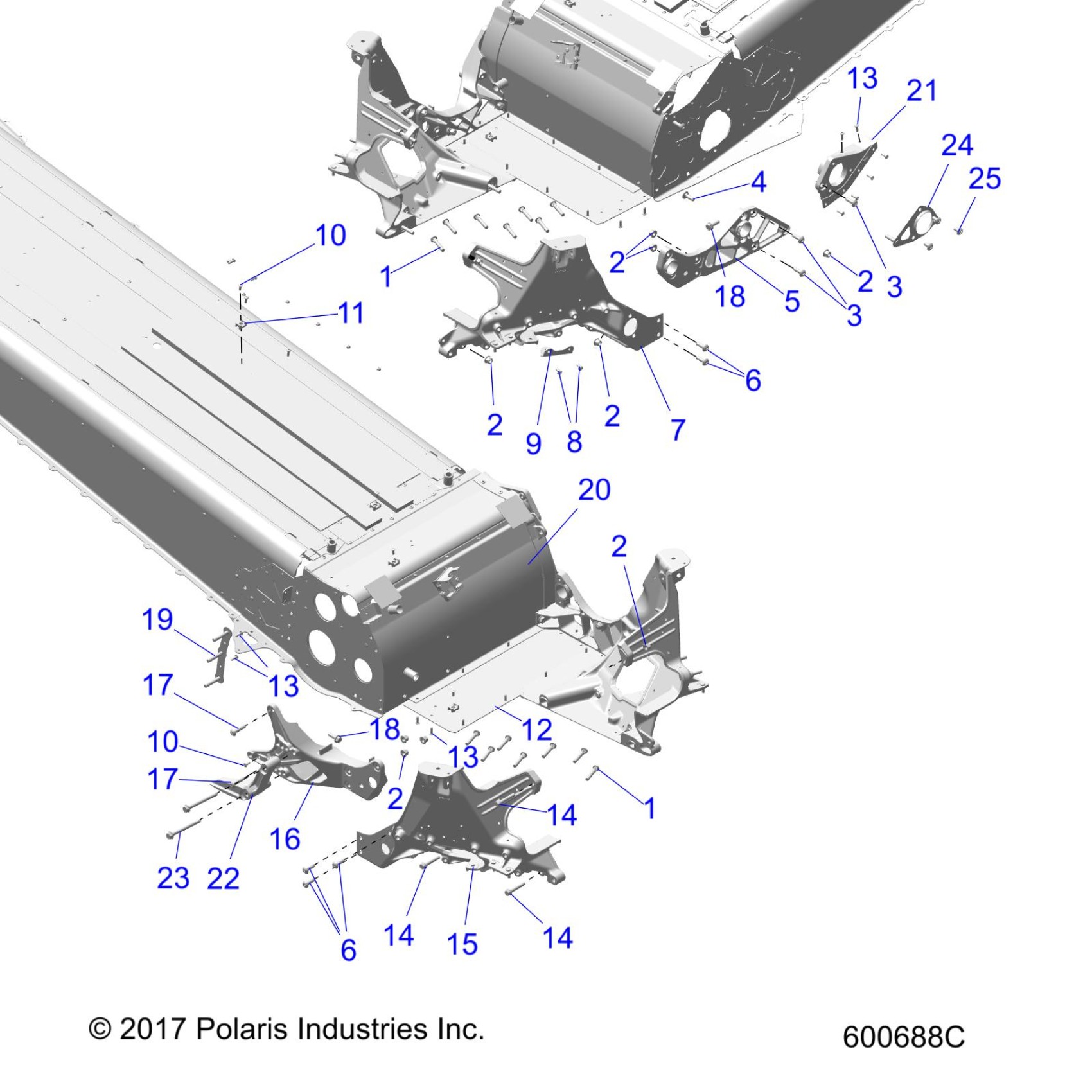

Polaris 800 TITAN SP/ADVENTURE/XC ALL OPTIONS (R04) - S19FJB8/FJE8/FJP8 CHASSIS, BULKHEAD ASM. - S19FJB8/FJE8/FJP8 ALL OPTIONS (600688C) Diagram
#
Description
Price
-
KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]
2204171
$294.99
-
KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]
2204400
$74.99
-
KIT, LORD, MIX NOZZLES, 12 PIECE
2204172
$4.99
1
STUD
7519204
$19.99
1
STUD
7519204
$19.99
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
3
SCREW
7518906
$3.19
3
SCREW
7518906
$3.19
4
BOLT, CARRIAGE
7520297
$4.99
5
ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. SLEEVE]
1019183
$139.99
6
SCREW
7519070
$6.39
6
SCREW
7519070
$6.39
7
ASM., CLIP W/STUD, LH [INCL. STUDS][REQUIRES ADHESIVE]
1022254
$334.99
8
SCREW
7518656
$3.99
9
ASM., BRKT., IDLER, TOP
1019666
$28.32
10
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
10
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
11
MOUNT-CABLE TIE
7082323
$8.08
12
FLOOR, BULKHEAD
5262311
$49.99
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
14
SCREW
7516732
$1.59
14
SCREW
7516732
$1.59
14
SCREW
7516732
$1.59
15
ASM-CLIP W/STUD RH
1022255
$334.99
16
BRACE-LOWER RH MACH
5140474
$194.99
17
SCREW
7519049
$7.19
17
SCREW
7519049
$7.19
18
SCR-HXFL-M8X1.25X25 8.8 ZODP30
7519243
$3.99
18
SCR-HXFL-M8X1.25X25 8.8 ZODP30
7519243
$3.99
19
ASM-STUD PLATE
1022258
$39.99
20
ASM-COOLER BULKHEAD
1241040
$379.99
21
MOUNT-JACKSHAFT BEARING MACH
5140699
$44.51
22
GUARD-ROTOR MACH
5140681
$82.29
23
SCR-HXFL-M8X1.25X85 10.9 ZOD
7519972
$9.59
24
ASM-FLANGETTE BEARING JACKSHFT
1022628
$29.99
25
SCR-TXTH-M8X1.25X15 8.8 ZODP30
7520311
$3.99
