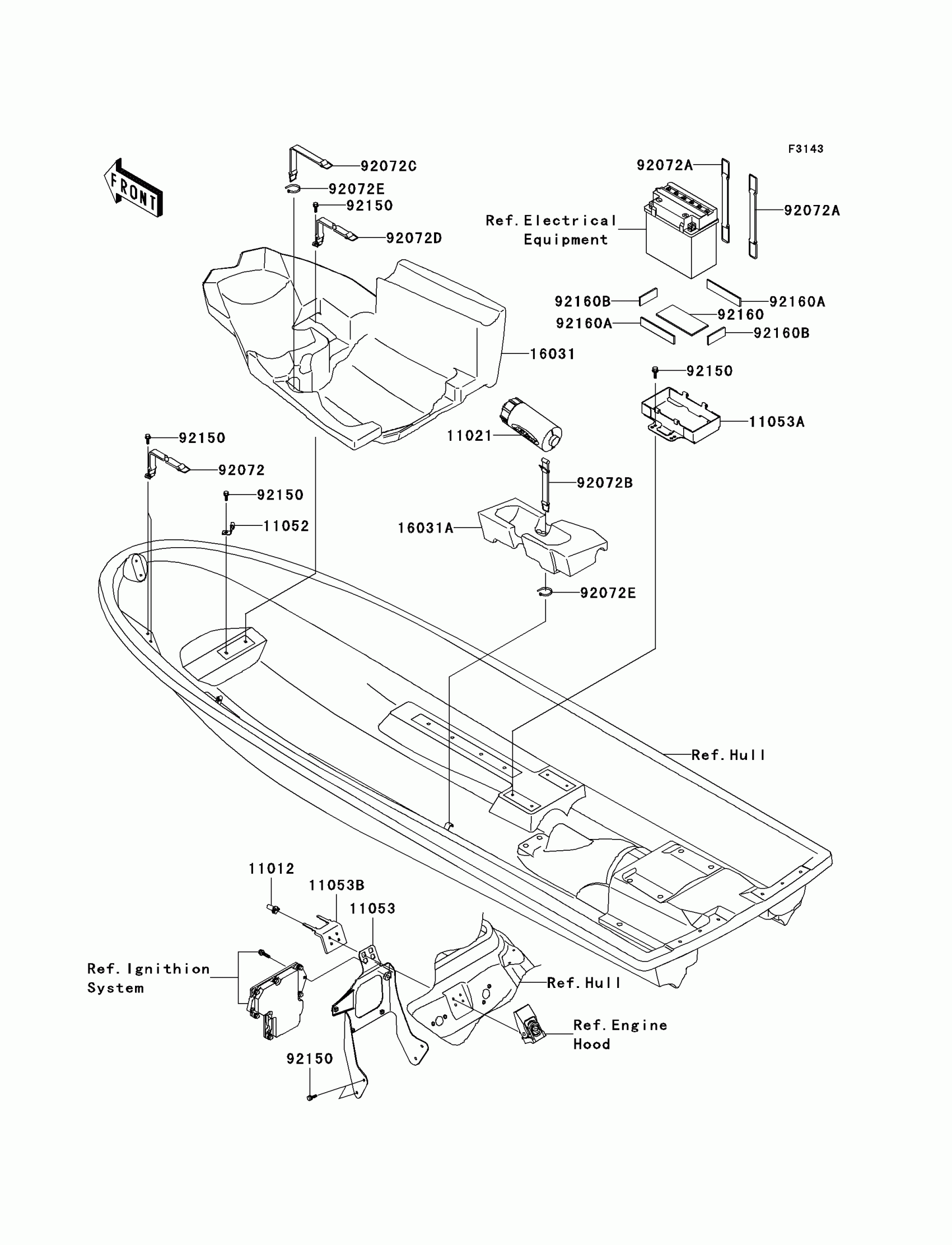

Kawasaki 800 SX-R Hull Fittings Diagram

Description

Price

11012

CAP,HOLDER

11012-3768

$7.22

11021

CASE-ASSY,TOOL

11021-3706

$98.59

11052

BRACKET

11052-3773

$9.63

11053

BRACKET

11053-3702

$147.63

11053A

BRACKET,BATTERY

11053-3727

$123.43

11053B

BRACKET

11053-3747

$15.71

16031

FLOAT,FUEL TANK

16031-3919

$105.01

16031A

FLOAT

16031-3941

Unavailable

92072

BAND,OIL TANK

92072-3812

$40.33

92072A

BAND,BATTERY

92072-3841

$35.27

92072B

BAND,TOOL CASE

92072-3859

$18.69

92072C

BAND,FUEL TANK,LH

92072-3864

$34.37

92072D

BAND,FUEL TANK,RH

92072-3865

$34.37

92072E

BAND,L=99

92072-3871

$2.26

92150

BOLT,6X20

92150-3758

$5.11

92160

DAMPER

92160-1851

$6.61

92160A

DAMPER

92160-3840

$5.88

92160B

DAMPER,WATER MUFFLER

92160-3880

$5.88
