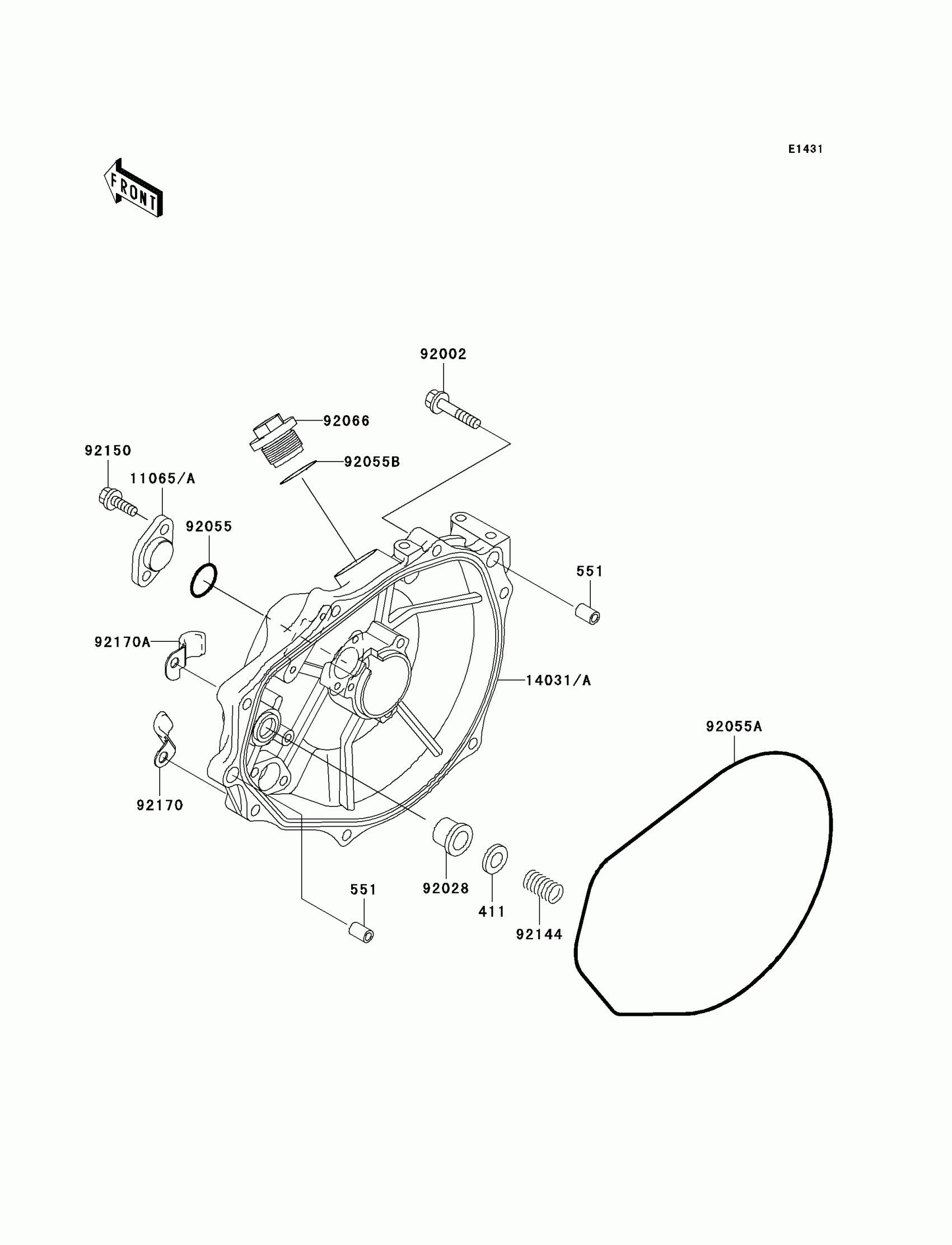

Kawasaki 800 SX-R Engine Cover(s) Diagram

Description

Price

411

WASHER-PLAIN,5MM

411S0500

$0.94

551

PIN-DOWEL

551R0812

$7.91

11065A

CAP

11065-3725

$64.95

14031A

COVER-GENERATOR

14031-3735

$243.92

92002

BOLT,6X30

92002-3726

$4.69

92028

BUSHING

92028-3718

$9.43

92055

RING-O,19.5X1.5

92055-055

$4.31

92055A

RING-O,GENERATOR COVER

92055-3712

$29.43

92055B

RING-O

92055-515

$2.70

92066

PLUG

92066-3739

$19.24

92144

SPRING

92144-3728

$5.29

92150

BOLT,6X18

92150-3729

$4.69

92170

CLAMP

92170-3735

$8.44

92170A

CLAMP

92170-3736

$8.44
