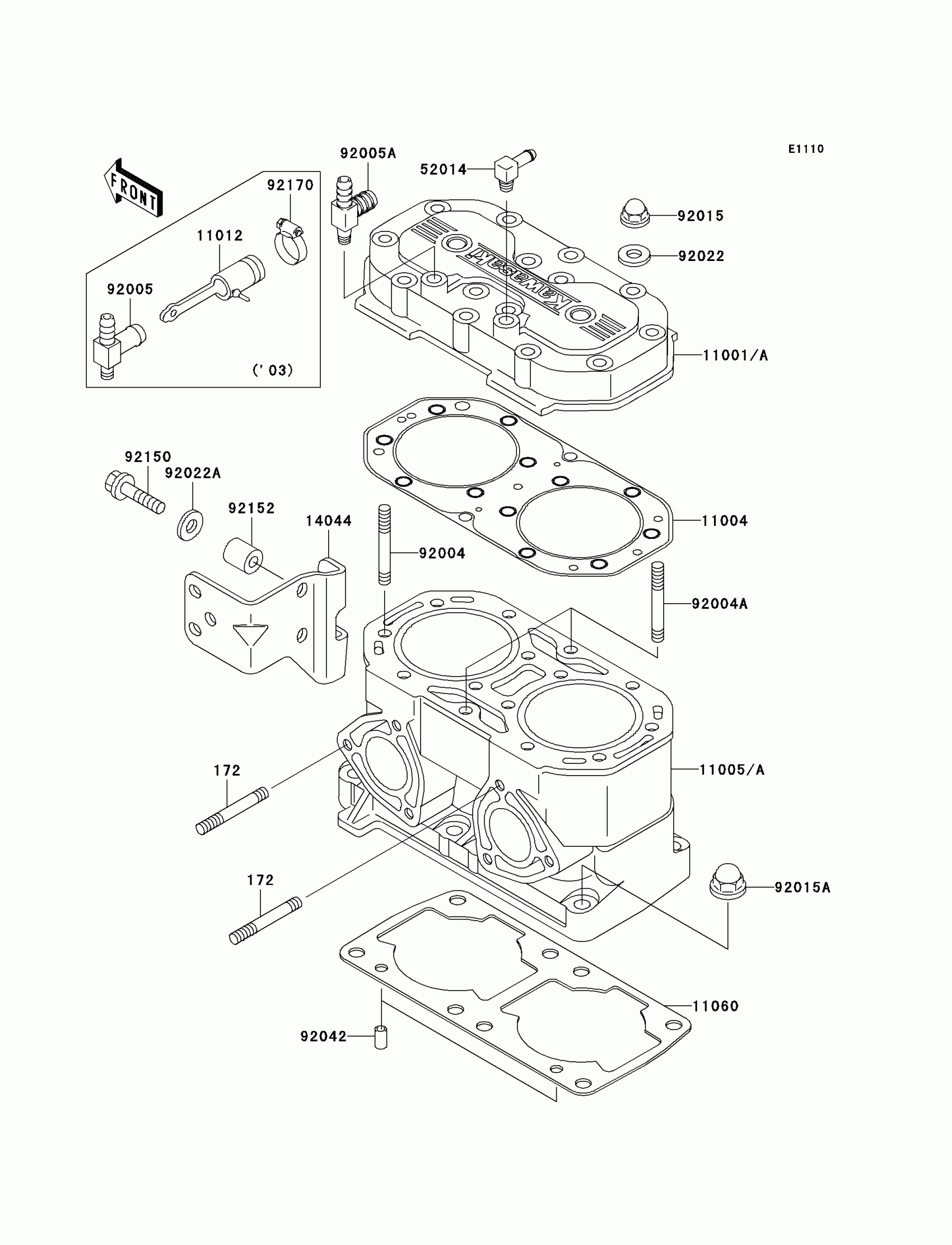

Kawasaki 800 SX-R Cylinder Head/Cylinder Diagram

Description

Price

172

BOLT-STUD,8X30

172R0830

$8.44

11001A

HEAD-CYLINDER

11001-3746

$402.46

11004

GASKET-HEAD

11004-3720

$69.48

11005A

CYLINDER-ENGINE

11005-3760

$997.07

11060

GASKET,CYLINDER BASE

11060-3711

$14.46

14044

HOLDER-CABLE

14044-3728

$21.77

52014

ELBOW

52014-3721

$32.85

92004

STUD,8X43

92004-3715

$10.46

92004A

STUD,8X43

92004-3719

$12.37

92005A

FITTING

92005-3749

$63.60

92015

NUT,CAP,8MM

92015-1371

$5.00

92015A

NUT,10MM

92015-1649

$5.52

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER,8.2X18X1.5

92022-3743

$4.22

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92150

BOLT,8X35

92150-3833

$9.45

92152

COLLAR

92152-3736

$7.63
