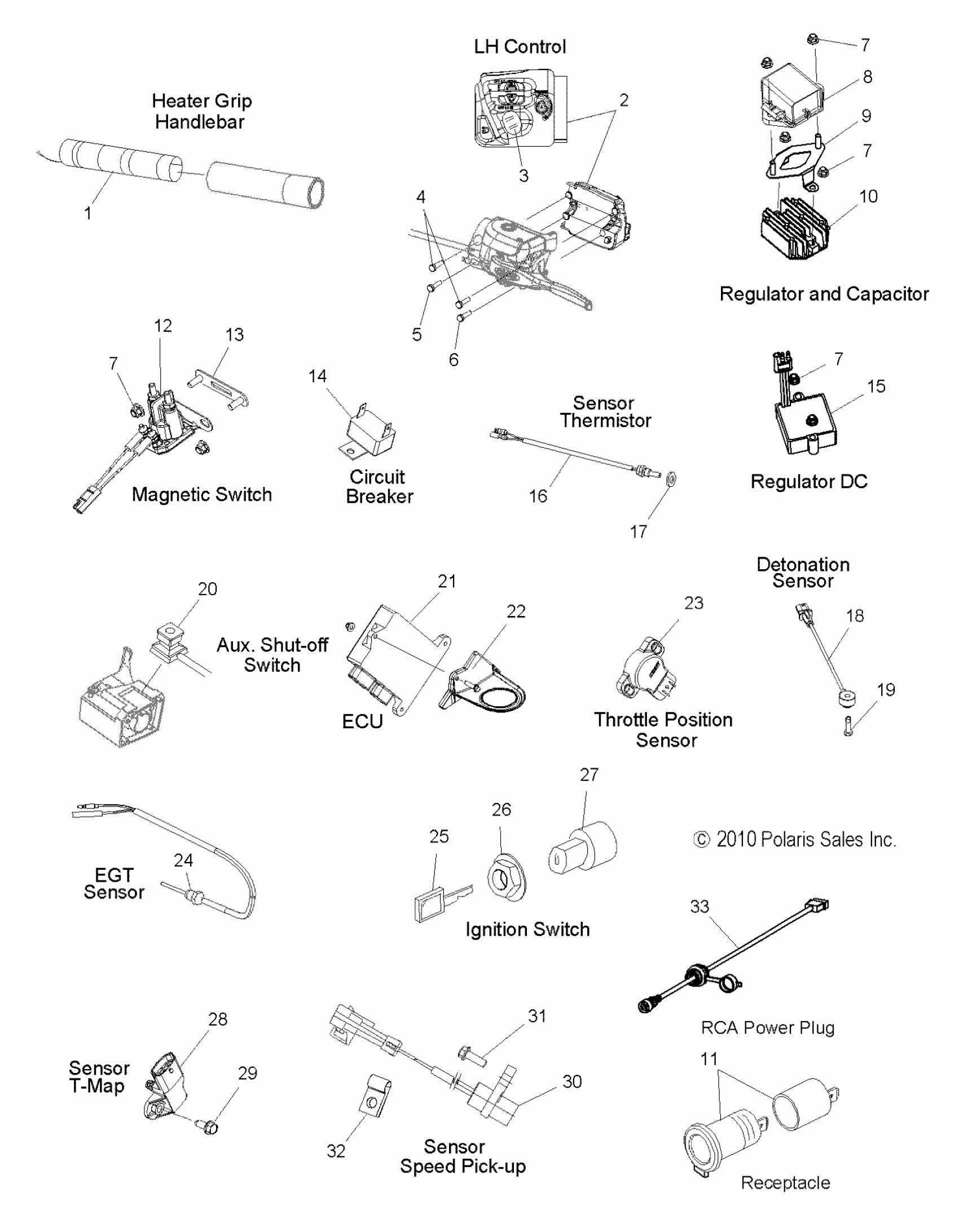

Polaris 800 RUSH PRO-R/ES/RETRO ALL OPTIONS - S11BP8/BE8 ELECTRICAL, SWITCHES, SENSORS and COMPONENTS - S11BP8/BE8 ALL OPTIONS (49SNOWELECT11800RUSH) Diagram

GRIP, HEATER, LO/MED/HI, SHORT

2410777

$40.46

Asm., LH Control

2010290

$80.94

Button, Switch, HI/LO, LH Control

5433291

$34.99

SCREW, .75

7517441

$2.38

SCREW, 1.12

7512078

$1.19

SCREW. 1.5

7517566

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

Capacitor

4011114

$135.54

Asm., Mount, Capacitor w/Clinch Nut

1017112

Unavailable

Regulator, 20 Amp, 3 Phase, DC

4012263

Unavailable

Receptacle, Pod Mount, 12V

4010638

$28.32

SWITCH, MAGNETIC

4012358

$52.60

ASM., STUD PLATE

1017255

$14.56

BREAKER, CIRCUIT, 12 AMP

2411592

$32.37

Regulator, AC/DC, 14.3V [Incl. 7]

4010794

$121.02

SENSOR, WATER TEMP

4012115

$69.99

WASHER, COPPER

7556357

$3.97

SENSOR, DETONATION

2410369

$80.94

SCREW

7517262

$5.56

Switch, Auxillary Shut-Off

4012268

$129.99

ECU

4012998

$654.99

MOUNT, ECU

5438088

$10.51

SENSOR, THROTTLE POSITION

3131591

$254.98

SENSOR, EGT

4013133

$279.99

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

Nut, Ignition

7547035

$8.73

Kit, Ignition Switch

2200358

$76.89

Sensor, T-Map

2410422

$97.13

Screw

7512095

$4.76

SENSOR, SPEED PICK-UP

2411353

$91.97

Screw

7518280

$1.19

CLAMP-CABLE

7080367

$2.38

Grommet, RCA Plug w/Cover [LX]

5414020

Unavailable

Asm., RCA Power Plug w/Cover [LX]

2411595

$44.51
