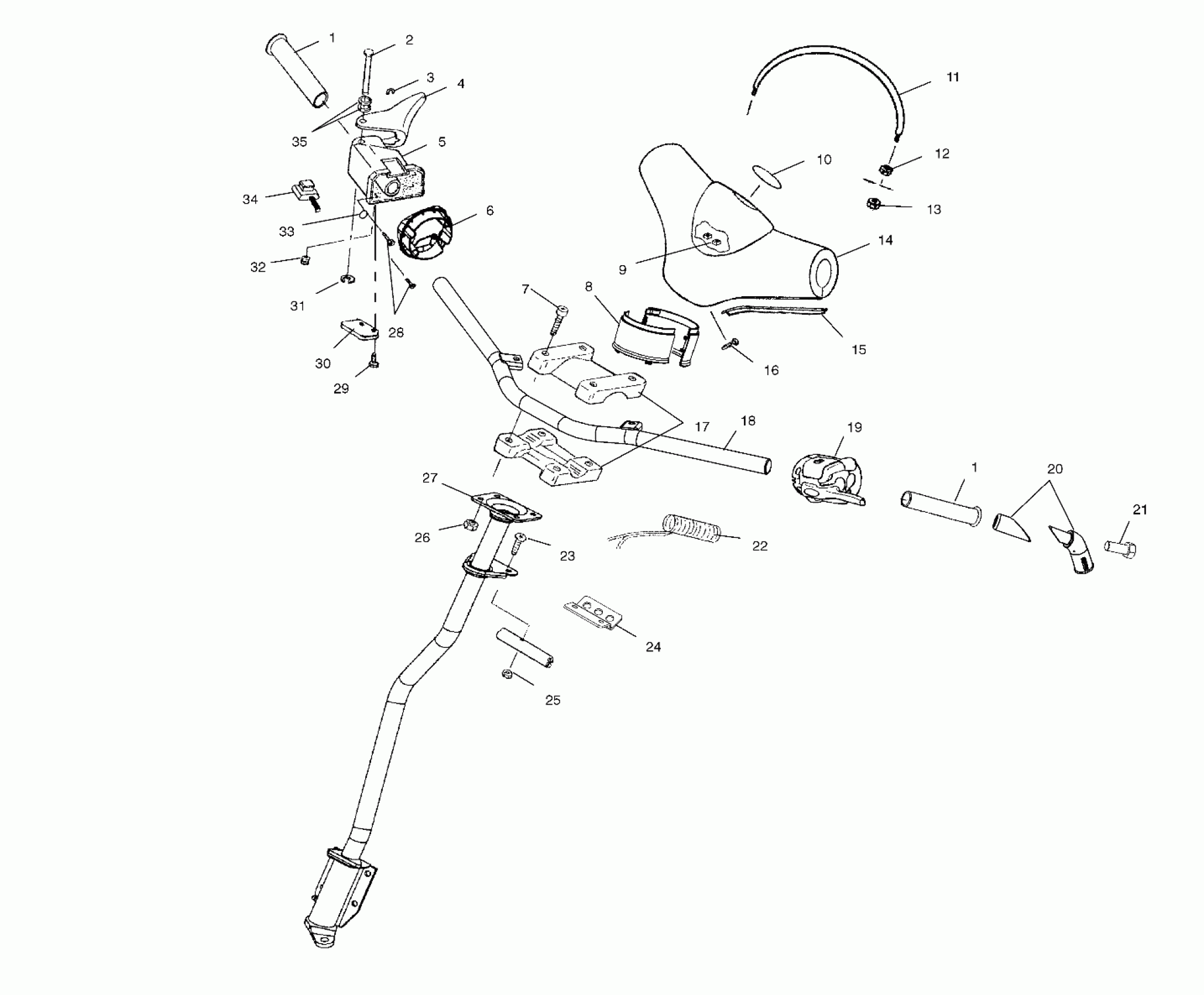

Polaris 800 RMK - S00SR8BS STEERING - HANDLEBAR - S00SR8BS (4954115411B004) Diagram

#

Description
Price

1

GRIP,HANDLEBAR CUT

5411692

Unavailable

1

GRIP,HANDLEBAR CUT

5411692

Unavailable

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

THROTLE,LEVER,35.5MM

5432970

$29.03

4

LEVER ASM,HTR,HI/LO 35.5MM

2010171

$84.98

5

BLOCK,THROTTLE/BRAKE

5431592

$49.99

6

ADAPTER-BLOCK,THROTTLE

5433345

$15.99

7

SCREW,(10)

7517238

$4.79

8

BOOT,HANDLEBAR

5433331

Unavailable

9

NUT-PUSH ON,.170-.180-Y(10)

7670106

$2.39

10

EMBLEM-"STAR",BEZEL,HANDLE BAR

5433522

Unavailable

11

BAR-MOUNTAIN,BLK

5243396-070

$76.89

12

NUT5/16-18,HX,JAM

7547107

$3.99

13

NUT,NYLOC,(10)

7542344

$3.99

14

COVER-HANDLEBAR

5433330

Unavailable

15

SLIDE-HANDLEBAR COVER,RH Substituted by 5433160

5433161

$28.32

15

SLIDE-HANDLEBAR COVER,LH Substituted by 5433160-070

5433160

$28.32

16

DART-CLIP NYLON,BLK

4010287

$3.99

17

BLOCK,HANDLEBAR

5630187-067

$44.99

18

HANDLEBAR,RMK,BLK

1820717-067

Unavailable

19

Asm., Control, LH (See Brake Pg. A14, Ref. 11)

-------

Unavailable

20

HANDLE BAR HOOK 45�,BLK Substituted by 2872482-070 (Incl. Wedge)

1253274-070

Unavailable

21

SCREW SOCKET HEAD Substituted by 7517834

7517622

Unavailable

22

HEATER,GRIP,LO/MED/HI

2460677

$60.70

23

SCREW

7517377

$4.79

24

BRKT,HOOP/TANK,BLK

5243625-067

$21.43

25

NUT, LOCK(10)

7542103

$5.59

26

NUT-LOCK(10)

7542122

$1.49

27

STEERING POST,FORMED,BLK

1820651-067

Unavailable

28

SCREW-SEMS(10)

7511848

$3.99

29

SCREW(10)

7511858

$3.99

30

HOLDER-WIRE

5432261

$24.27

31

RING-RETAINING EXTERNAL

7710401

$3.99

32

SCREW(10)

7512465

$3.99

33

RIVET BURR(50)

7555727

$1.49

34

SWITCH,AUX.SHUT-OFF

4110106

$94.99

35

WASHER(10)

7555730

$3.99
