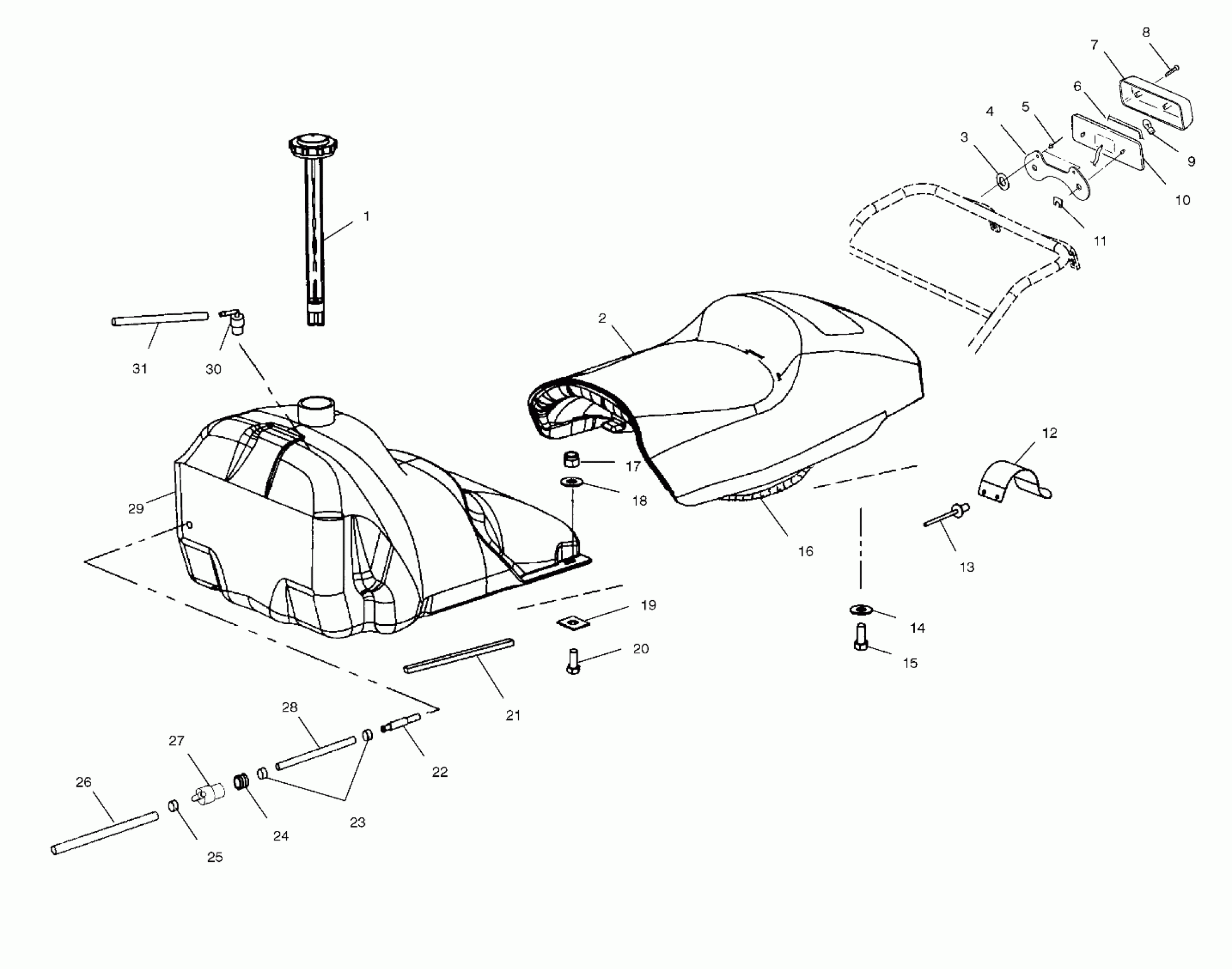

Polaris 800 RMK - S00SR8BS SEAT AND GAS TANK - S00SR8BSA (4954115411A006) Diagram

#

Description
Price

-

TAILLIGHT ASM. (Incl. 4-11)

2433009

$86.51

1

CAP,FUEL,12.5,W/GAUGE

1240066

Unavailable

2

SEAT CUSHION,GEN II,RMK ASM. (Incl. 2-12,16)(S00SR8BS)

2682509

Unavailable

2

COVER,SEAT

2682510

Unavailable

2

SEAT CUSH.,GENII STD,RMK (Incl. 2-12,16)(S00SR8BSA)

2682577

$458.63

3

WASHER

7556034

$2.39

4

MOUNT-TAILLIGHT

5811832

Unavailable

5

RIVET,(50)

7621341

Unavailable

6

GASKET,T/L&STOP/L

4032086

Unavailable

7

LENS,STOP&T/L.

4032085

$36.41

8

SCREW,TAIL LIGHT

7512088

$2.39

9

BULB,TAILLIGHT

4030043

$6.46

10

BACKING,(STOP&TAIL)

4032087

Unavailable

11

CLIP, RETAINER(10)

7670093

$5.99

12

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

13

RIVET(50)

7621472

$1.49

14

WASHER(10)

7558301

$1.49

15

SCREW(10)

7512242

$2.39

16

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

16

HARNESS-TAILIGHT,RMK

2460747

$24.60

17

NUT-LOCK(10)

7542122

$1.49

18

WASHER(10)

7555960

$3.99

19

SPEED NUT(10)

7670021

$6.99

20

BOLT(10)

7512193

$2.39

21

PAD-GAS TANK

5810063

$4.95

22

PICK-UP,FUEL,W/MESH

7052215

$49.99

23

RING,COMPRESSION(10)

7080768

$4.84

24

Grommet

5432981

$6.94

25

CLAMP,SPRING,(10)

7080534

$1.59

26

FUEL,LINE,ETHER,RED,3/8' Substituted by 8350016-160

8350016-600

Unavailable

27

FITTING,ST.THRM,3/8 HOSE

7052214

$13.19

28

FUEL,LINE,ETHER,VLT,3/8" Substituted by 8350020-160

8350020-600

Unavailable

29

FUELTANK ASM,RACER,W/FILTER

2520161

Unavailable

30

FITTING,90 DEG,1/8,(10)

7052095

$4.79

31

FUELLINE,3MMX7MM

8450061-600

Unavailable
