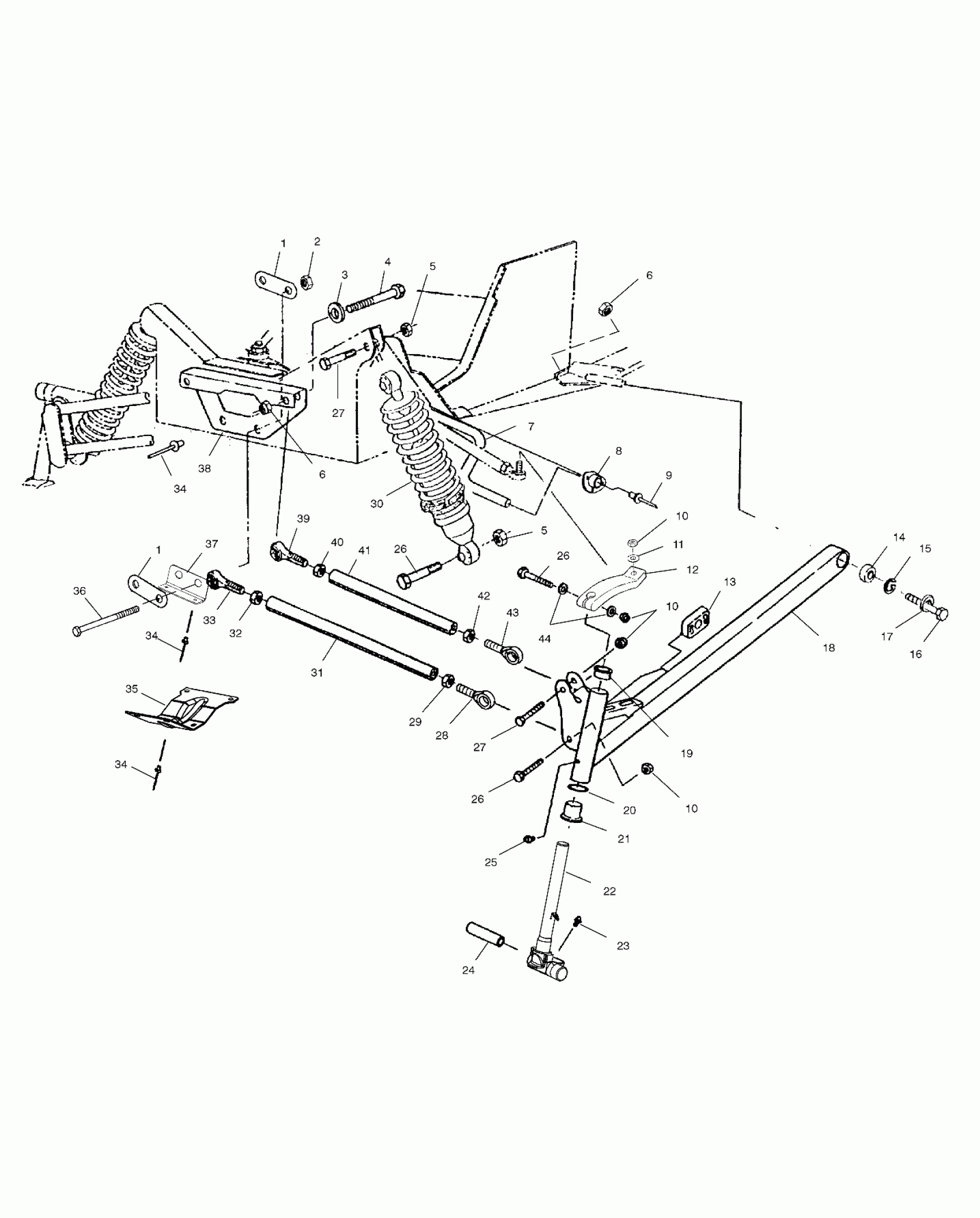

Polaris 800 RMK - S00SR8BS FRONT SUSPENSION - S00SR8BS (4954115411B001) Diagram

#

Description
Price

1

STRAP,SPACER BOTTOM

5211345

$12.99

1

STRAP,SPACER BOTTOM

5211345

$12.99

2

NUT FLEX,(10)

7542703

Unavailable

3

WASHER THRUST(10)

7558702

$1.59

4

BOLT(10)

7512551

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

NUT, LOCK,(10)

7542503

$10.39

6

NUT, LOCK,(10)

7542503

$10.39

7

BAR,TORSION 9/16,BLK

5243559-067

Unavailable

8

BUSHING,SWAY BAR

5432412

$15.99

9

RIVET,(50)

7621477

$1.19

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

WASHER(10)

7555797

$3.99

12

STEERING ASM,ALUM,LWT

5132083

Unavailable

13

SLIDE,SWAYBAR,9/16

5432674

Unavailable

14

BEARING-SPHERICAL,7/16,PLASTIC

7061042

$31.99

15

RING,RETAINING(10)

7710437

$3.19

16

BOLT(10)

7512579

Unavailable

17

WASHER(10)

7555801

$3.99

18

TRAILING ARM,LH,BLK,ASM. (Incl. 14,15)

1820687-067

Unavailable

18

TRAILING ARM,RH,BLK,ASM. (Incl. 14,15)

1820688-067

Unavailable

19

BUSHING-FLANGE

3573909

$2.39

20

WASHER SPECIAL(10)

7556509

$1.59

21

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

22

SHAFT-SPINDLE,W/STEER STOP,BLK

6230155-067

$124.99

23

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

24

BUSHING,PIVOT,(10)

5010158

$19.99

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

26

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

26

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

26

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

27

BOLT(10)

7515415

$1.49

27

BOLT(10)

7515415

$1.49

28

ROD END-RADIUS,LH,LOWER

7061051

$48.56

29

NUT-JAM(10)

7542711

$2.39

30

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

30

SPRING,COMPRESSION

7041551-067

$74.99

30

RING,SPRING PRELOAD ADJ.

5431734

$52.60

30

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

30

SHOCK,GAS,SELECT,IFS

7041886

Unavailable

31

ROD,RADIUS,LOWER,ALUM 3/4" Substituted by 5132498

5333770

$74.99

32

NUT,LH,JAM(10)

7547028

$2.39

33

ROD END-RADIUS,RH,LOWER

7061052

$48.56

34

RIVET-3/16-.090-.290

7661637

$1.49

34

RIVET-3/16-.090-.290

7661637

$1.49

34

RIVET-3/16-.090-.290

7661637

$1.49

35

BRACE-PAN,LOWER,BLK

5242575-067

$24.27

36

BOLT(10)

7512684

Unavailable

37

BRKT,RAD.ROD,BTM.

5242578

$44.99

38

BRACE,BULKHEAD,FRONT,BLK

1012575-067

$23.99

39

ROD END-RADIUS,RH,7/16"

7061049

Unavailable

40

NUT(10)

7547117

Unavailable

41

ROD,RADIUS,UPPER,ALUM,5/8" Substituted by 5133011

5333769

Unavailable

42

NUT JAM(10)

7542520

$2.39

43

ROD END-RADIUS,LH,7/16"

7061048

Unavailable

44

WSHR-.813X.406X.105-Y

7555832

$2.39
