Description

Price

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

BEARING COVER GARMAX

3514347

$36.41

4

RING-RETAINING,COVER

7710417

$1.49

5

SLEEVE,SPRING

5433739

$3.51

6

SPRING-CLUTCH,DARK BLUE/WHT

7041781

$56.65

7

WASHER,MULTILUBE

5430945

$1.59

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

WT/BUSH.ASM,10-58(3)

1321588

$40.46

11

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

12

SLEEVE, BEARING

3576502

$23.99

13

INSERT-MOVEABLE

5010188

$7.99

14

NUT FLEX LOC(10)

7541906

$3.19

15

SPACER(10) (.050mm)

5210754

Unavailable

15

SPACER(10) (.025 mm)

5242981

Unavailable

15

SPACER(10) (.020mm)

5210752

Unavailable

15

SPACER(10) (.032mm)

5210753

Unavailable

15

DESC NOT_AVAILABLE (.100mm)

5244512

Unavailable

16

NUT-JAM

5020425

$23.99

17

PIN-ROLLER

5020422

$2.39

18

Kit - Shim, Drive Clutch

2200387

$24.27

19

KIT,REBUILD,WIDE ROLLER (Incl. 7-9,11,17)

2201169

$169.98

19

DRVCLUTCH,ASM,BASIC.108 (Incl. All Less 6,10)

1321880

Unavailable

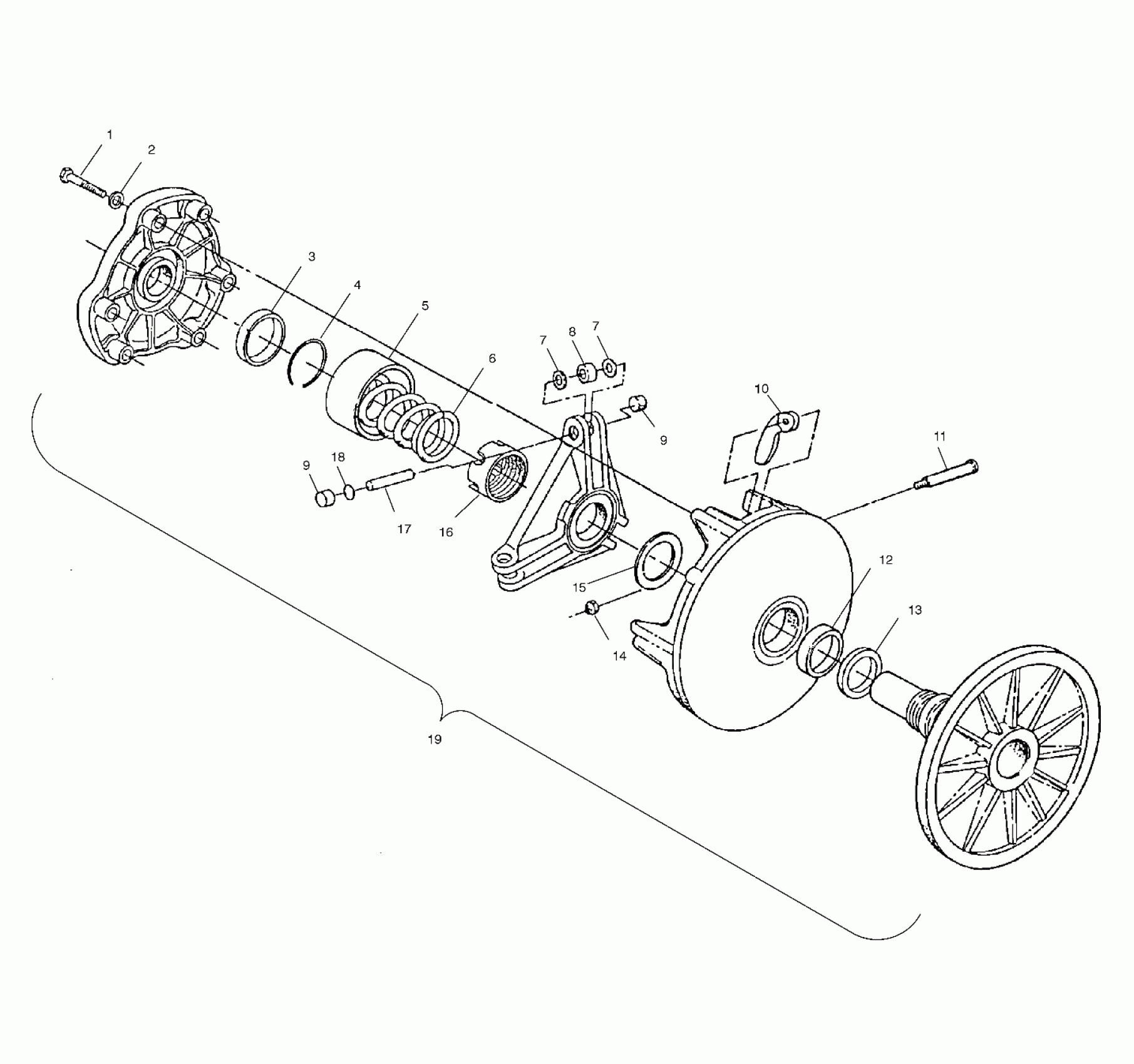

Polaris 800 RMK - S00SR8BS DRIVE CLUTCH - S00SR8BS (4954115411C001) Diagram

BOLT,(10)

LOCK WASHER(10)

BEARING COVER GARMAX

RING-RETAINING,COVER

SLEEVE,SPRING

SPRING-CLUTCH,DARK BLUE/WHT

WASHER,MULTILUBE

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

BUTTON, GUIDE,(10)

BUTTON, GUIDE,(10)

WT/BUSH.ASM,10-58(3)

PIN-WEIGHT,HARDENED,1/4X2.00

SLEEVE, BEARING

INSERT-MOVEABLE

NUT FLEX LOC(10)

SPACER(10) (.050mm)

SPACER(10) (.025 mm)

SPACER(10) (.020mm)

SPACER(10) (.032mm)

DESC NOT_AVAILABLE (.100mm)

NUT-JAM

PIN-ROLLER

Kit - Shim, Drive Clutch

KIT,REBUILD,WIDE ROLLER (Incl. 7-9,11,17)

DRVCLUTCH,ASM,BASIC.108 (Incl. All Less 6,10)
