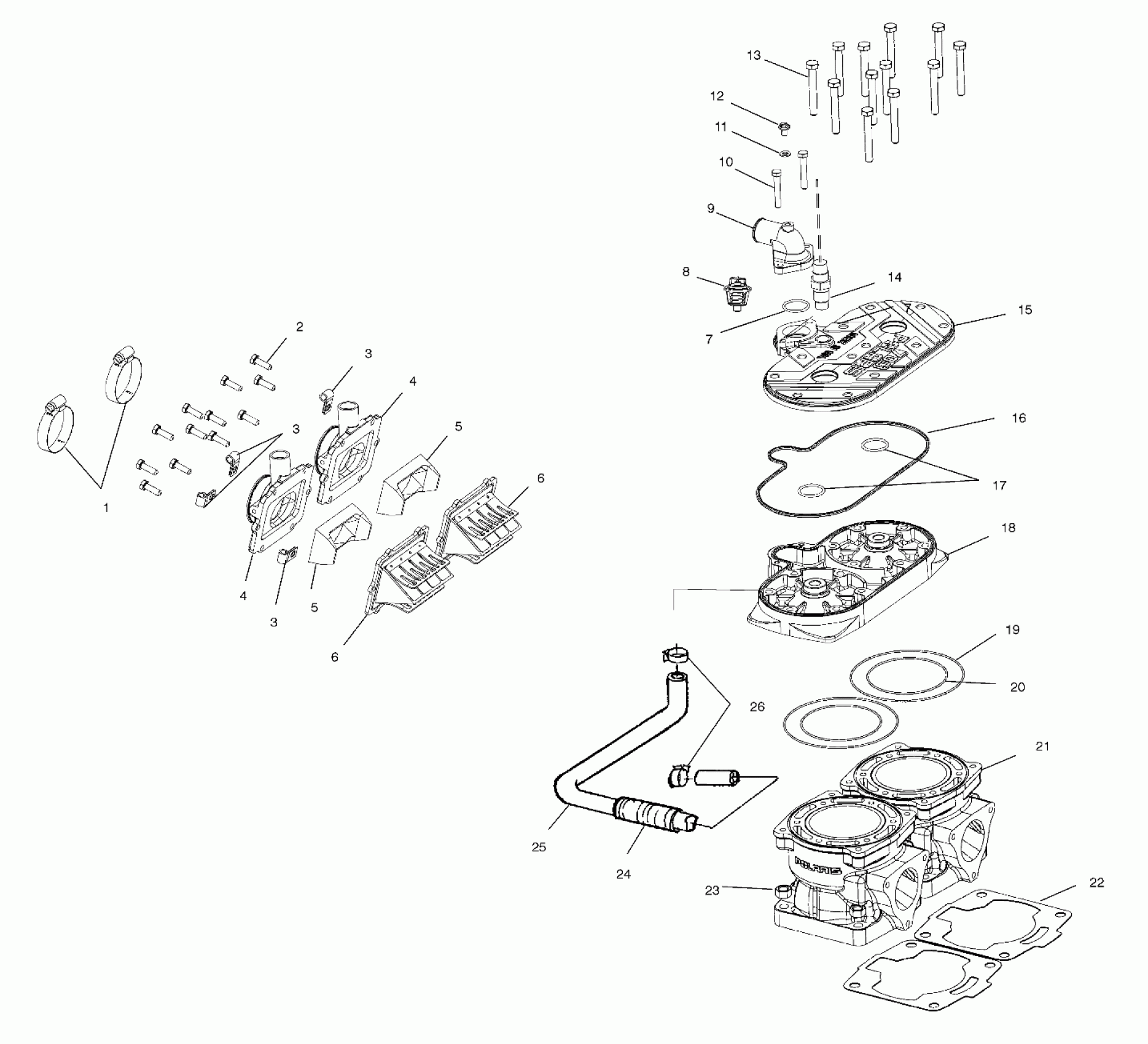

Polaris 800 RMK - S00SR8BS CYLINDER - S00SR8BS (4954115411C007) Diagram

#

Description
Price

1

CLAMP,HOSE,SS,(10)

7080681

$9.59

2

SCREW,(10)

7517398

$3.19

3

CLAMP,HOSE(10)

7080683

$2.39

3

CLAMP,HOSE(10)

7080683

$2.39

3

CLAMP,HOSE(10)

7080683

$2.39

4

ADAPTER-CARB,TM-RACK,700 BASE

1253289

Unavailable

4

ADAPTER-CARB,TM-RACK,700 BASE

1253289

Unavailable

5

STUFFER-REED BLOCK,NOK

5433151

Unavailable

5

STUFFER-REED BLOCK,NOK

5433151

Unavailable

6

VALVE,REED

1201825

$134.99

6

VALVE,REED

1201825

$134.99

7

O-RING,LIPSEAL

5411521

$24.19

8

THERMOSTAT 50� C Substituted by 7052267

7052252

$40.46

9

COVER-THERMOSTAT,M-6,BLEED Substituted by 5630992

5630910

Unavailable

10

SCREW

7516818

$5.59

11

WASHER,FLAT,(10)

7555998

$1.49

12

SCREW,(10) Substituted by 7517565

7517266

$15.99

13

SCREW,M8X1.25X60(10)

7517534

$4.79

14

SENSOR-THERMISTOR TEMP VARRES Substituted by 4010614

4010251

$36.41

15

COVER, HEAD

5630934-093

$156.79

16

SEAL,RUBBER,MLDD,HEAD

5411294

Unavailable

17

O-RING(10)

5410917

$1.49

18

HEAD-CYL,85MM,TWIN,SNOW,800-SS

3021066

Unavailable

19

O-Ring

5410931

Unavailable

20

O-RING-3.625X3.765X.07,HI-TMP

5411675

$29.03

21

CYLINDER-85MM,SNOW

3021064

$629.99

22

GASKET-CYLINDER BASE

5811784

$8.89

23

NUT(10)

7547013

$1.99

24

CONDUIT,FLEX(.75"ID)

5521398-96

Unavailable

25

HOSE,BYPASS

5411536

Unavailable

26

CLAMP-3 TONG .810-.970(10)

7080810

$2.39
