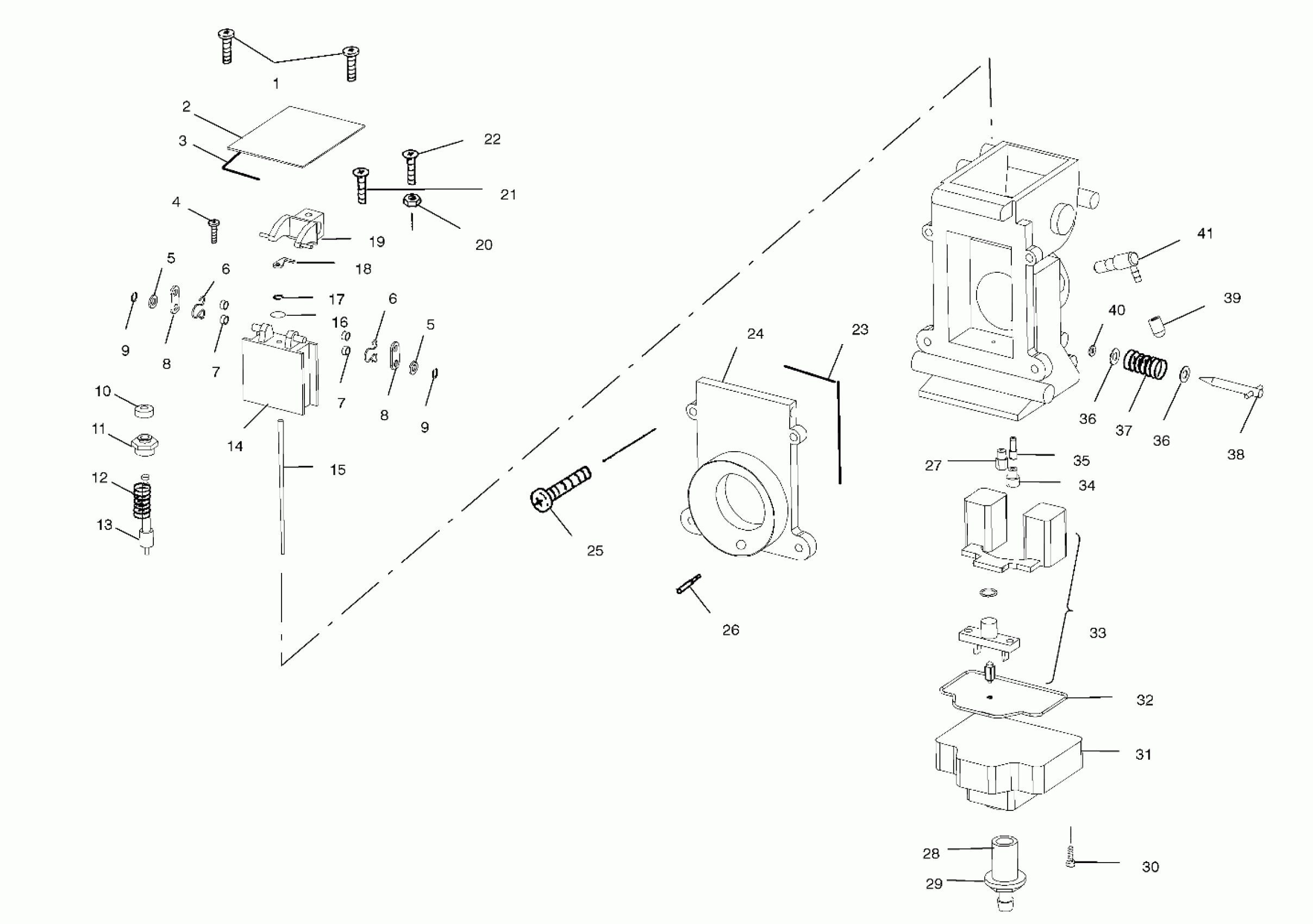

Polaris 800 RMK - S00SR8BS CARBURETOR - S00SR8BS (4954115411C011) Diagram

#

Description
Price

-

CARB,TM-40,TPS

1253288

Unavailable

1

Screw

3130951

$3.99

2

CAP,TOP

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

WASHER,PACKING

3130846

$4.79

5

WASHER,PACKING

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

CAP,STARTER,(RUBBER)

3130831

$7.27

11

HOLDER,STARTER GUIDE

3130830

$32.37

12

SPRING,STARTER

3130829

$12.94

13

PLUNGER ASM./258

3130828

$32.37

14

PV,NOTCHED,TM38/318-2.0 (2.0 Notched)

3131206

$134.99

15

JET,NEEDLE (J8-9EFY02-61)

3131202

Unavailable

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

LEVER ASM.

3130855

$64.75

19

LEVER ASM.

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw

3130854

$3.19

22

Screw

3130850

$4.79

23

O-RING,AIR FUNNEL

3130870

$24.27

24

ASM,FUNNEL

3131230

Unavailable

25

SCREW,AIR FUNNEL

3130825

$3.19

26

AIR JET-PILOT,0.9 (PAJ)(.9)

3131203

$8.89

27

JET,MAIN HX.HD#280(10) (280)(PTO)

3130131

$7.27

27

JET,MAIN HX.HD#300(10) (300)(MAG)

3130133

$7.27

28

NIPPLE,DRAIN SCREW

3130862

Unavailable

29

O-RING,DRAIN SCREW

3130863

$2.41

30

SCREW,FLOAT BOWL

3130824

$3.19

31

FLOAT,BODY

3130858

$119.99

32

O-RING,FLOAT BOWL

3130861

$12.13

33

ASM,FLOAT,1.8

3131231

$134.99

34

JET,PILOT,#55(10) (55)

3130070

$8.89

35

JET,STARTER,#VM11/22-145 (145)

3130769

$8.89

36

Washer

3130837

$3.19

36

Washer

3130837

$3.19

37

SPRING

3130836

$7.27

38

ADJUSTER ASM.

3130838

Unavailable

39

CAP

3130479

$14.56

40

Packing

3130835

$2.41

41

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
