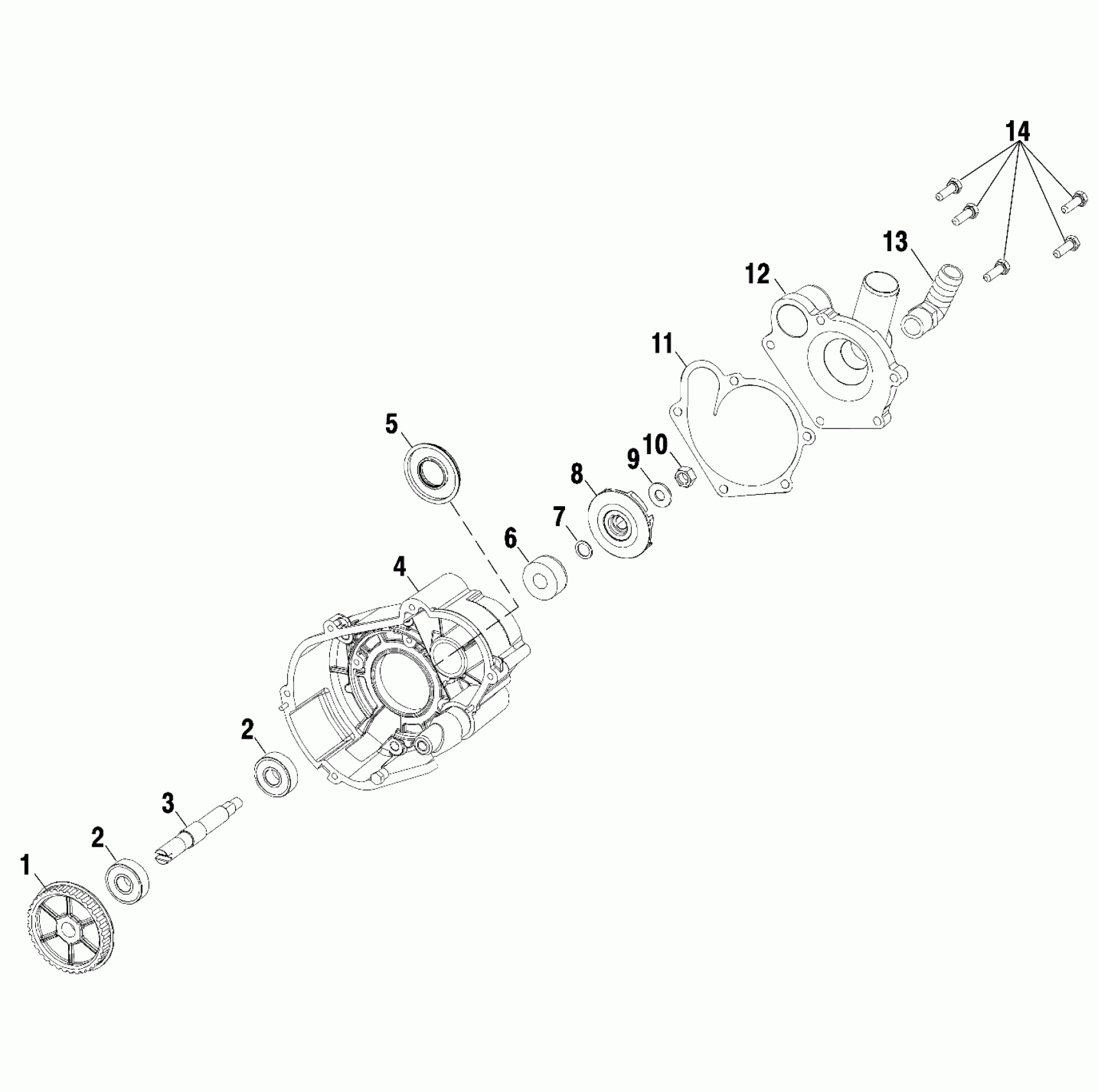

Polaris 800 RMK F/O 156 - S02NM8CS WATER PUMP - S02NM8CS (4970657065C06) Diagram

#

Description
Price

1

Pulley

3021044

$40.46

2

Bearing, Ball

3514311

Unavailable

2

Bearing, Ball

3514311

Unavailable

3

Shaft

5132273

$94.99

4

HOUSING, IGNITION [SEE MAGNETO PG. C11, REF. 13]

-------

Unavailable

5

Seal

3610044

$24.27

6

Seal, Water Pump

3610067

$44.51

7

Washer, Flat

7556006

$3.99

8

Impeller

5432330

$23.99

9

Washer, Flat

7555874

$2.39

10

Nut

7546804

$1.49

11

Gasket, Cover

5811627

$8.89

12

Cover

5630864

$53.17

13

Fitting, 90 Degree

7052221

Unavailable

14

SCREW

7516822

$2.39
