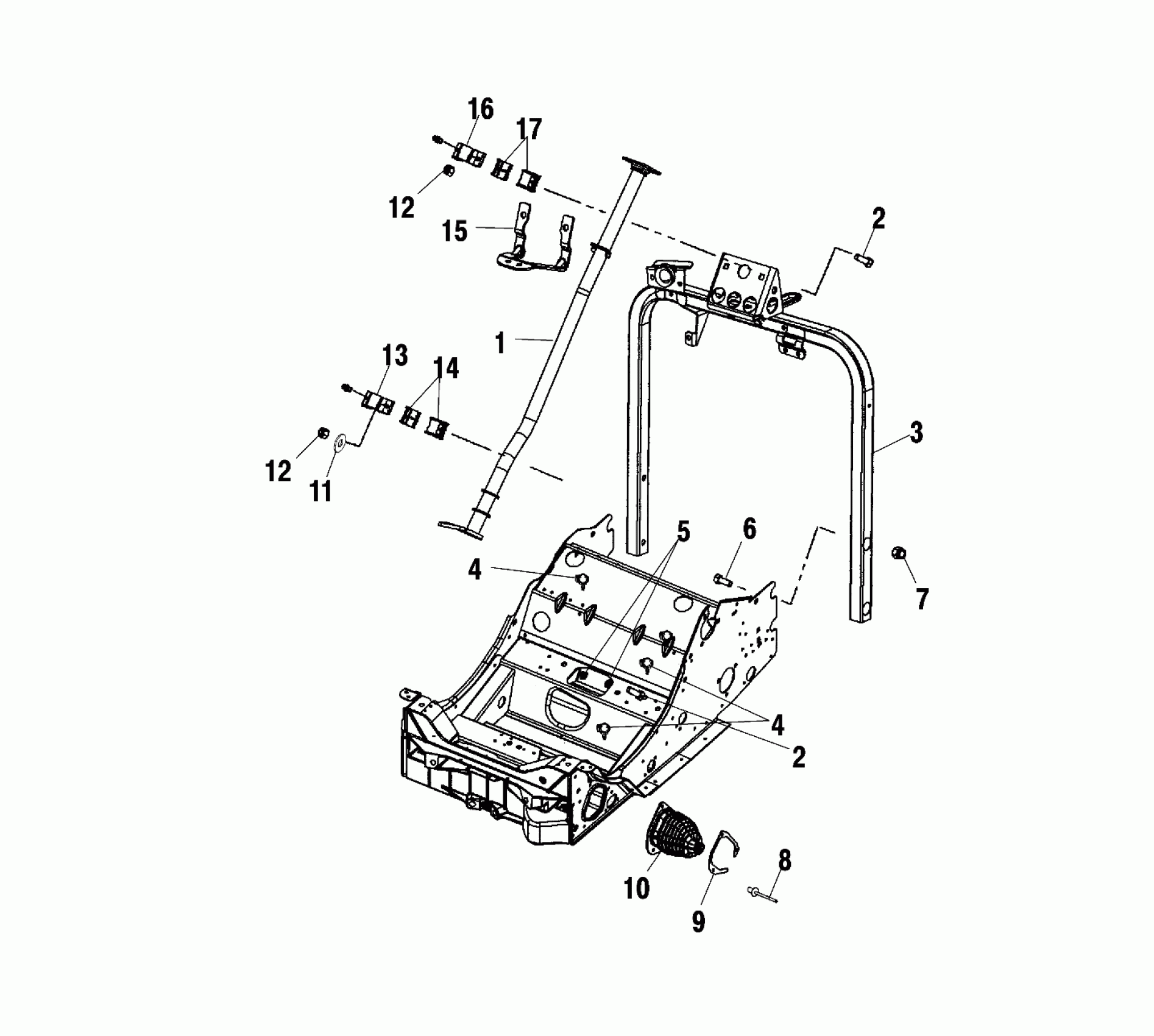

Polaris 800 RMK F/O 156 - S02NM8CS STEERING/HANDLEBAR - S02NM8CS (4970657065B03) Diagram

#

Description
Price

1

Post, Steering

1821162-067

Unavailable

2

BOLT, CARRIAGE

7517579

$6.39

2

BOLT, CARRIAGE

7517579

$6.39

3

Hoop, Steering

1013444-067

Unavailable

4

CLIP, ROSEBUD

4020139

$4.79

4

CLIP, ROSEBUD

4020139

$4.79

5

Nut, Push

7547030

$4.79

6

Bolt, Carriage

7512377

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

Rivet

7621433

$1.49

9

Plate, Tie Rod Boot

5244470

Unavailable

10

Boot, Tie Rod, LH

5433532

Unavailable

10

Boot, Tie Rod, RH

5433533

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

Fitting, Lubrication

7080510

$5.59

13

Bracket, Steering Post, Lower

5132967

$36.41

14

Bushing

5434167

Unavailable

15

Bracket, Console, Front

5245373

$13.99

16

Fitting, Lubrication

7080510

$5.59

16

Bracket, Steering Post, Upper

5131841

Unavailable

17

Bushing

5432785

$6.39
