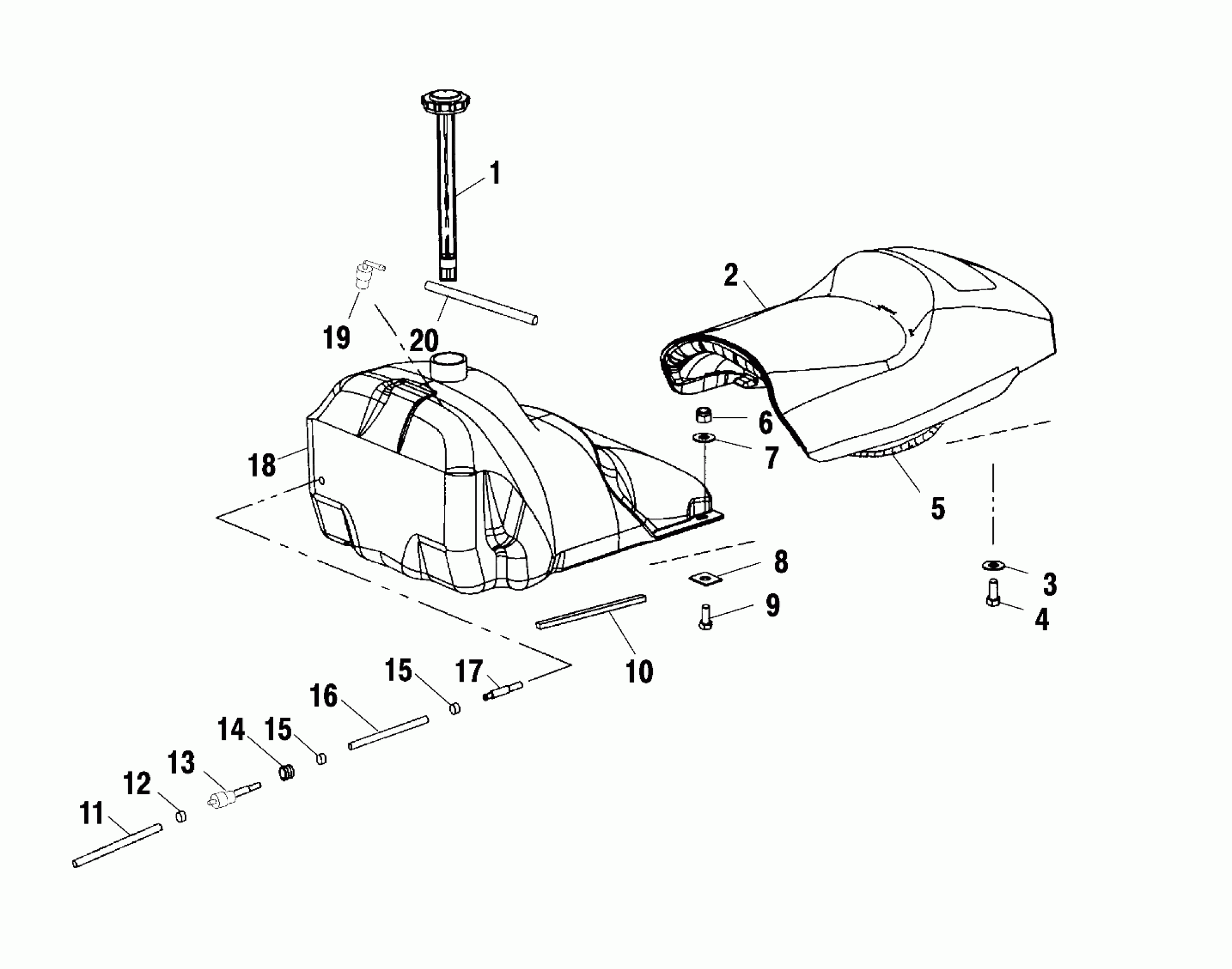

Polaris 800 RMK F/O 156 - S02NM8CS SEAT and GAS TANK - S02NM8CS (4970657065A05) Diagram

#

Description
Price

1

Cap w/Gauge, Fuel

1240066

Unavailable

2

Asm., Seat [Blue][Incl. 2,5]

2682778

Unavailable

2

Cover, Seat [Blue]

2682779

Unavailable

2

Asm., Seat [Red][Incl. 2,5]

2682710

Unavailable

2

Asm., Seat [Black][Incl. 2,5]

2682827

Unavailable

2

Cover, Seat [Red]

2682822

Unavailable

2

Cover, Seat [Black]

2682828

Unavailable

3

Washer, Flat

7558301

$1.49

4

SCREW

7517219

$4.79

5

Harness, Taillight

2460935

$19.03

6

Nut, Nylok

7542122

$1.49

7

WASHER, FLAT

7555960

$3.99

8

Nut, Speed

7670021

$6.99

9

BOLT, CARRIAGE

7512193

$2.39

10

FOAM-SEAL,REAR COOLER

5810947

$4.03

11

Line, Fuel

8350017-600

Unavailable

12

HOSE CLAMP, RED

7080003

$1.49

13

Fitting

7052269

$24.99

14

Grommet

5432981

$6.94

15

RING, COMPRESSION

7080768

$4.84

15

RING, COMPRESSION

7080768

$4.84

16

Line

8350020-600

Unavailable

17

Pickup w/Mesh, Fuel

7052215

$49.99

18

Asm., Fuel Tank

2520262

$239.99

19

Fitting, 90 Degree

7052095

$4.79

20

Line

8450061-600

Unavailable
