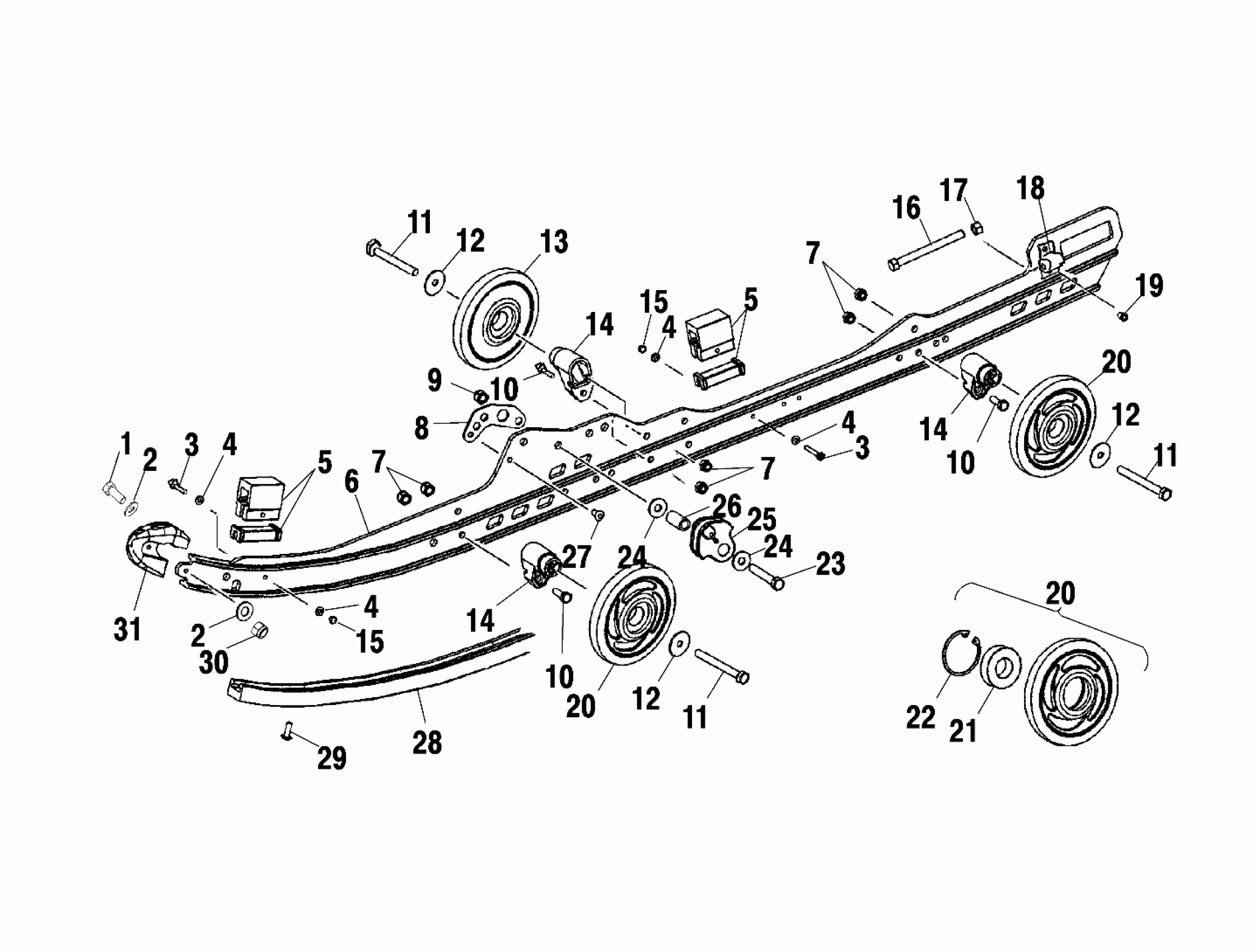

Polaris 800 RMK F/O 156 - S02NM8CS RAIL MOUNTING (SUSPENSION) - S02NM8CS (4970657065B08) Diagram

#

Description
Price

1

Screw

7512007

$3.99

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Screw

7510504

$6.76

3

Screw

7510504

$6.76

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

Bumper, Jounce

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

5

Bumper, Jounce

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

6

Rail, LH [Incl. 1,2,3,4,5,6,18,19,30,31]

1541658

$319.99

6

Rail, RH [Incl. 1,2,3,4,5,6,18,19,30,31]

1541659

Unavailable

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Bracket, Rail Reinforcement

5245411

$9.70

9

Nut, Nylok

7542439

$1.49

10

BOLT

7515317

$4.79

10

BOLT

7515317

$4.79

10

BOLT

7515317

$4.79

11

Screw

7515346

$5.59

11

Screw

7515346

$5.59

11

Screw

7515346

$5.59

12

Washer, Spring

7556179

$7.99

12

Washer, Spring

7556179

$7.99

12

Washer, Spring

7556179

$7.99

13

Asm., Bogie Wheel

1590317

$48.56

14

Block, Wheel Mount

5631065

$28.32

14

Block, Wheel Mount

5631065

$28.32

14

Block, Wheel Mount

5631065

$28.32

15

Nut, Nylok

7541925

$1.49

15

Nut, Nylok

7541925

$1.49

16

SCREW

7517227

$7.19

17

NUT

7542404

$1.59

18

Bracket, Idler Bolt Adjust

5130530

$32.37

19

RIVET

7621501

$2.39

20

Asm., Wheel, Scrolled [Incl. 21,22]

1590318-293

Unavailable

20

Asm., Wheel, Scrolled [Incl. 21,22]

1590318-293

Unavailable

20

Asm., Wheel, Scrolled [Incl. 21,22]

1590318-293

Unavailable

21

BEARING [1 PER WHEEL]

3514303

$11.99

22

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

23

Screw

7515438

$4.79

24

WASHER

7555983

Unavailable

24

WASHER

7555983

Unavailable

25

Pin, Clevis

7661123

$3.99

25

GUIDE, SPRING, SQUARE

5434334

$28.32

25

PIN, HITCH

7661644

$2.39

26

SPACER

5333948

$6.39

27

RIVET

7661845

$1.49

28

Hi-Fax

5521581-309

$40.46

29

Screw

7515199

$1.49

30

NUT

7541925

$1.49

31

Cap, Rail Tip

5434355

Unavailable
