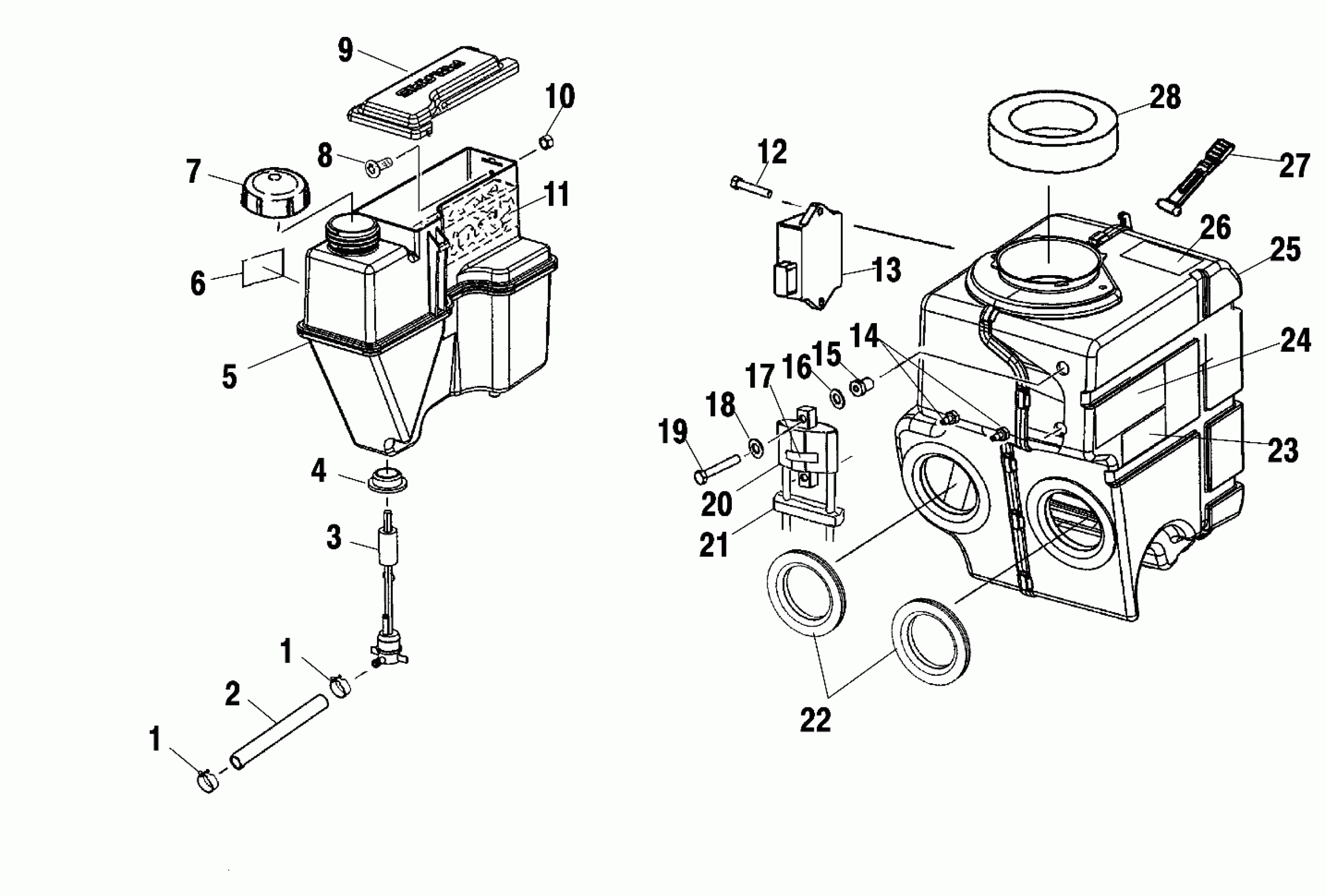

Polaris 800 RMK F/O 156 - S02NM8CS OIL TANK/AIR BOX - S02NM8CS (4970657065C01) Diagram

#

Description
Price

1

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

1

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

2

LINE

8450003-1525

Unavailable

3

Fitting, Oil Sender

4010550

$60.70

4

Grommet

7052305

$4.84

5

Tank, Oil w/Sending Unit

1253396

Unavailable

6

Decal, Oil, VES

7079003

Unavailable

7

Cap, Oil

1240094

$36.41

8

Screw

7512297

$5.59

9

Cover, Tool Box

5434089

$27.19

10

Nut, Nylok

7542122

$1.49

11

Foam

5812209

Unavailable

12

Screw

7512095

$4.79

13

CDI

-------

Unavailable

14

Fitting

7052127

$3.19

15

Nut, Nitrile

7547103

$8.79

16

Washer, Nylon

7555932

$2.39

17

Decal, Spark Plug

7077026

$2.95

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

Screw

7517610

$1.59

20

COIL

-------

Unavailable

21

Clip, Ignition

7080471

$3.59

22

Boot, Carburetor

5412157

Unavailable

23

Decal, Greasing

7073426

$7.27

24

Decal, Adjustable Driven Clutch

7073820

Unavailable

25

Asm., Air Silencer [Incl. Decals]

1253399

$93.65

26

Decal, Caution

7075351

Unavailable

27

STRAP-AIRBOX TOP

5433150

$24.27

28

Foam

5811983

$20.22
