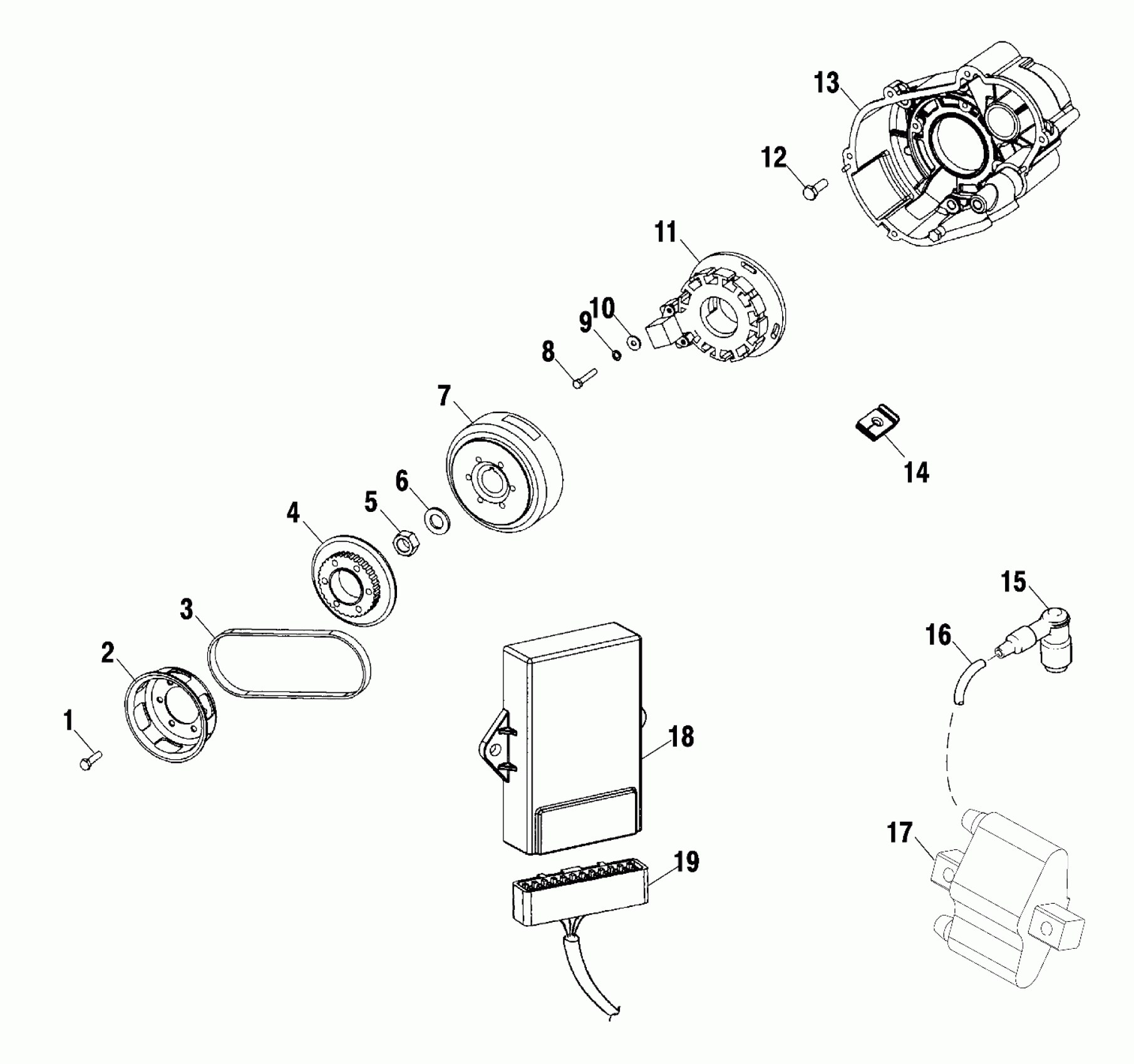

Polaris 800 RMK F/O 156 - S02NM8CS MAGNETO - S02NM8CS (4970657065C11) Diagram

#

Description
Price

1

Screw

7516823

$3.19

2

Pulley, Starting

3021144

Unavailable

3

Belt

5411998

$71.41

4

Pulley, Water Pump Drive

5630824

Unavailable

5

Nut

7546909

Unavailable

6

WASHER

7555907

$5.59

7

Flywheel

4010629

Unavailable

8

Screw

7517246

$2.63

9

Washer, Lock

7555969

Unavailable

10

Washer, Flat

7555970

Unavailable

11

Stator

4010297

Unavailable

12

SCREW

7516734

$3.19

13

Housing, Ignition

1202161

$231.19

14

Grommet

5411178

$5.03

15

Cap, Spark Plug

4020159

Unavailable

16

Wire, Ignition

4010124-305

$89.03

17

Coil, Ignition

4060229

Unavailable

18

Decal, Spark Plug

7077026

$2.95

18

Kit, CDI [Incl. 18, Nyogel & Decal]

2201924

Unavailable

19

Harness, Ignition, TPS

4010549

Unavailable
