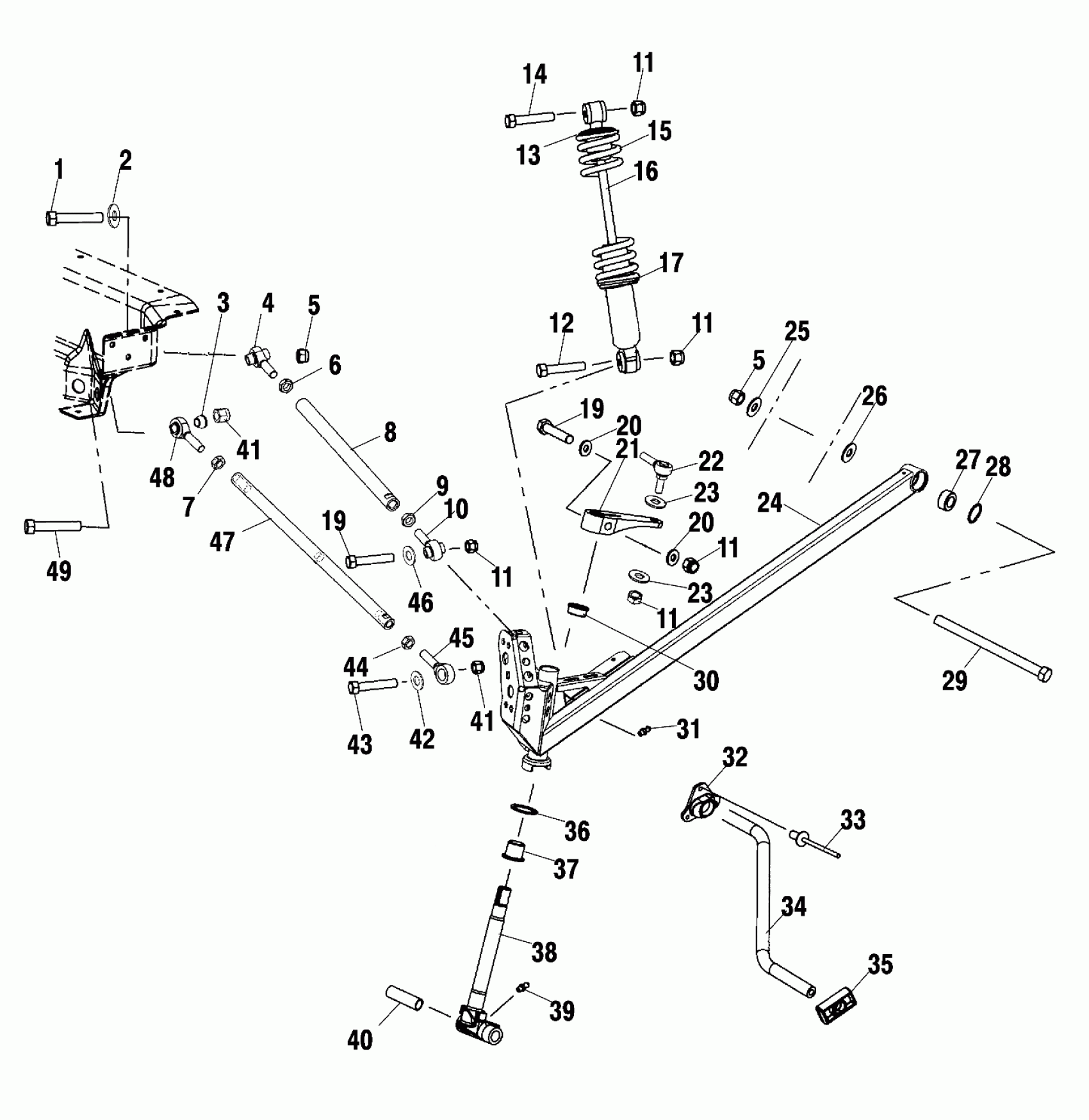

Polaris 800 RMK F/O 156 - S02NM8CS FRONT SUSPENSION - S02NM8CS (4970657065B05) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

WASHER

7556212

$8.79

3

Bushing, Spacer

5132454

Unavailable

4

Rod End, LH

7061081

Unavailable

5

Nut, Nylok

7547066

$1.59

5

Nut, Nylok

7547066

$1.59

6

Nut, Jam, LH

7547117

Unavailable

7

Nut, Jam

7547028

$2.39

8

Tube, Radius, Upper

5133137

$104.99

9

Nut, Jam

7542520

$2.39

10

Rod End

7061061

$48.56

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

12

Screw

7515433

$1.59

13

Retainer, Spring, Slotted [IFP]

5630580

Unavailable

14

Screw

7515415

$1.49

15

Spring, Compression

7041576-067

$43.99

16

Shock, IFS, Arvin, IFP [See Shock (IFS) Page for Service Components]

7042059

Unavailable

17

Nut, Spring Retainer

-------

Unavailable

19

SCREW

7517583

$4.35

19

SCREW

7517583

$4.35

20

WSHR-.813X.406X.105-Y

7555832

$2.39

20

WSHR-.813X.406X.105-Y

7555832

$2.39

21

Arm, Steering

5133060

$70.39

22

Rod End, RH

7061086

$48.56

23

Washer, Flat

7555797

$3.99

23

Washer, Flat

7555797

$3.99

24

Asm., Trailing Arm, Red, LH [Incl. 27,28]

1821201-293

$291.41

24

Asm., Trailing Arm, Red, RH [Incl. 27,28]

1821202-293

Unavailable

24

Asm., Trailing Arm, Yellow, LH [Incl. 27,28]

1821201-216

Unavailable

24

Asm., Trailing Arm, Yellow, RH [Incl. 27,28]

1821202-216

Unavailable

25

WASHER, FLAT

7555820

$3.99

26

Cup, Mount, Trailing Arm

5132364

$20.22

27

Bearing, Spherical

7061042

$31.99

28

Ring, Retaining

7710437

$3.19

29

Screw

7512099

$19.99

30

Bushing

3573909

$2.39

31

Fitting, Lubrication

7080433

$1.49

32

Bushing, Torsion Bar

5433814

$23.99

33

Rivet

7621452

$1.49

34

Bar, Torsion

5245217-067

Unavailable

35

Slide, Torsion Bar

5433885

Unavailable

36

Bushing

7556509

$1.59

37

BUSHING, FLANGED

3574208

$3.19

38

Shaft w/Steering Stop, Spindle

6230225-067

$219.99

39

Fitting, Lubrication

7080306

$3.19

40

Bushing

5010158

$19.99

41

Nut, Nylok

7547065

$3.99

41

Nut, Nylok

7547065

$3.99

42

Washer

7556213

$3.17

43

Bolt

7517906

Unavailable

44

Nut, Jam

7542711

$2.39

45

Rod End

7061052

$48.56

46

WASHER

7556153

$1.99

47

Tube, Radius, Lower

5132953

Unavailable

48

Rod End

7061087

$144.99

49

Bolt

7517981

$4.13
